Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 49
12.07.2013

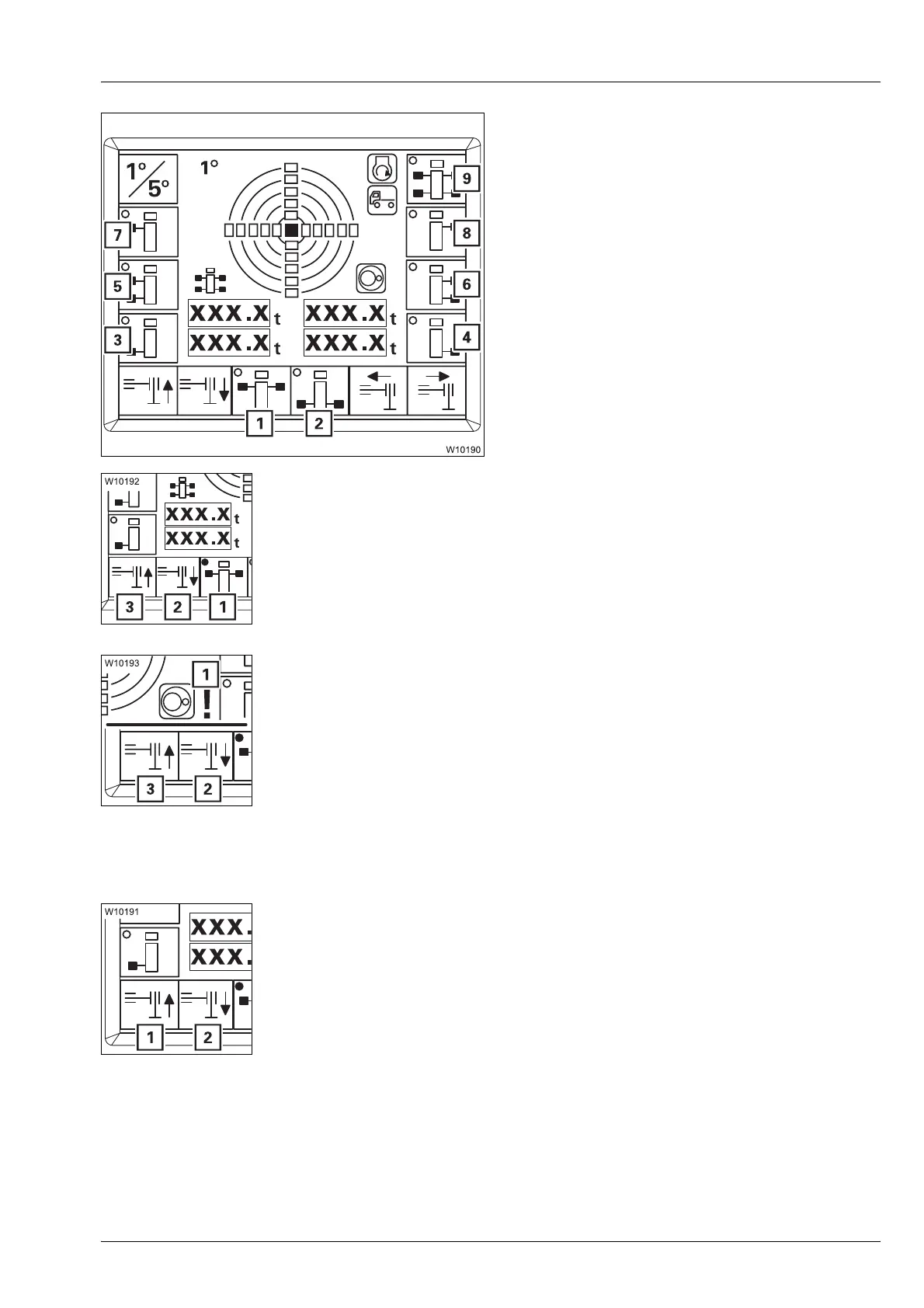

Pre-selecting outriggers
• Press the button once next to the symbol for
the desired outrigger
Pre-selection is switched on.
– The dot in the symbol turns green, e.g. in symbol (1).
– The symbols (2) and (3) turn black.
After about 10 seconds, the pre-selection is switched off.
If the symbol (1) appears, this means that the slewing gear is switched on –
the symbols (2) and (3) remain grey.
• Switch off the slewing gear.
Extending/retracting supporting cylinders
• Observe the safety instructions for operating the supporting cylinders;
à p. 12 - 45.
• Press the button below the symbol for the desired movement:
The pre-selected supporting cylinders move until you let go of the respec-
tive button or until the respective end position has been reached.
1 Both at front
2 Both at rear
3 Rear left
4 Rear right
5 Both on left
6 Both on right
7 Front left
8 Front right
9 All
1 Retract
2 Extend
