Rigging work
12.4 Connecting/disconnecting the hand-held control
Operating manual GMK 6400 3 112 993 en 12 - 21
12.07.2013
12.4 Connecting/disconnecting the hand-held control

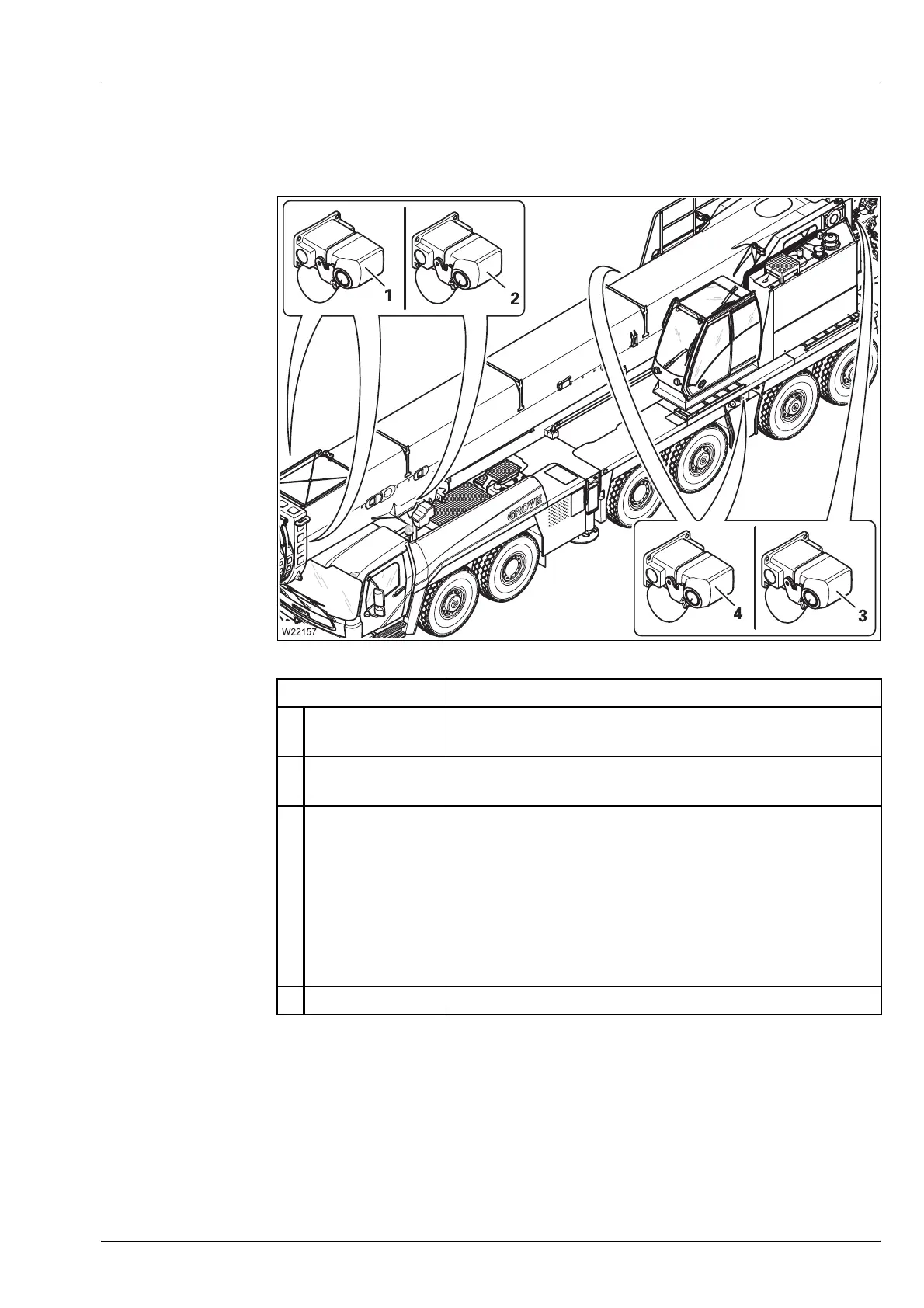

Functionality of the sockets
H
Switch off the engine. Pulling a bridging plug will shut the engine off, but
this action is only designed for emergencies.
The ignition can be switched on or off.
Socket Released operations
1 At the front of
the main boom
– Rigging MWL
2 On the derrick-
ing cylinder
– Derricking gear emergency operation
3 At the rear on
the turntable
– Counterweight lifting cylinder
– Counterweight lock
– Locking, unlocking auxiliary hoist
– Raising/setting down auxiliary hoist, catcher 2
– Pulling device, main boom pivot pin
– Emergency operation for slewing gear, turntable
lock, main hoist, auxiliary hoist
– Rigging winch
4 On the carrier – Outrigger
