Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 39
12.07.2013
3.2.6 Electrical system

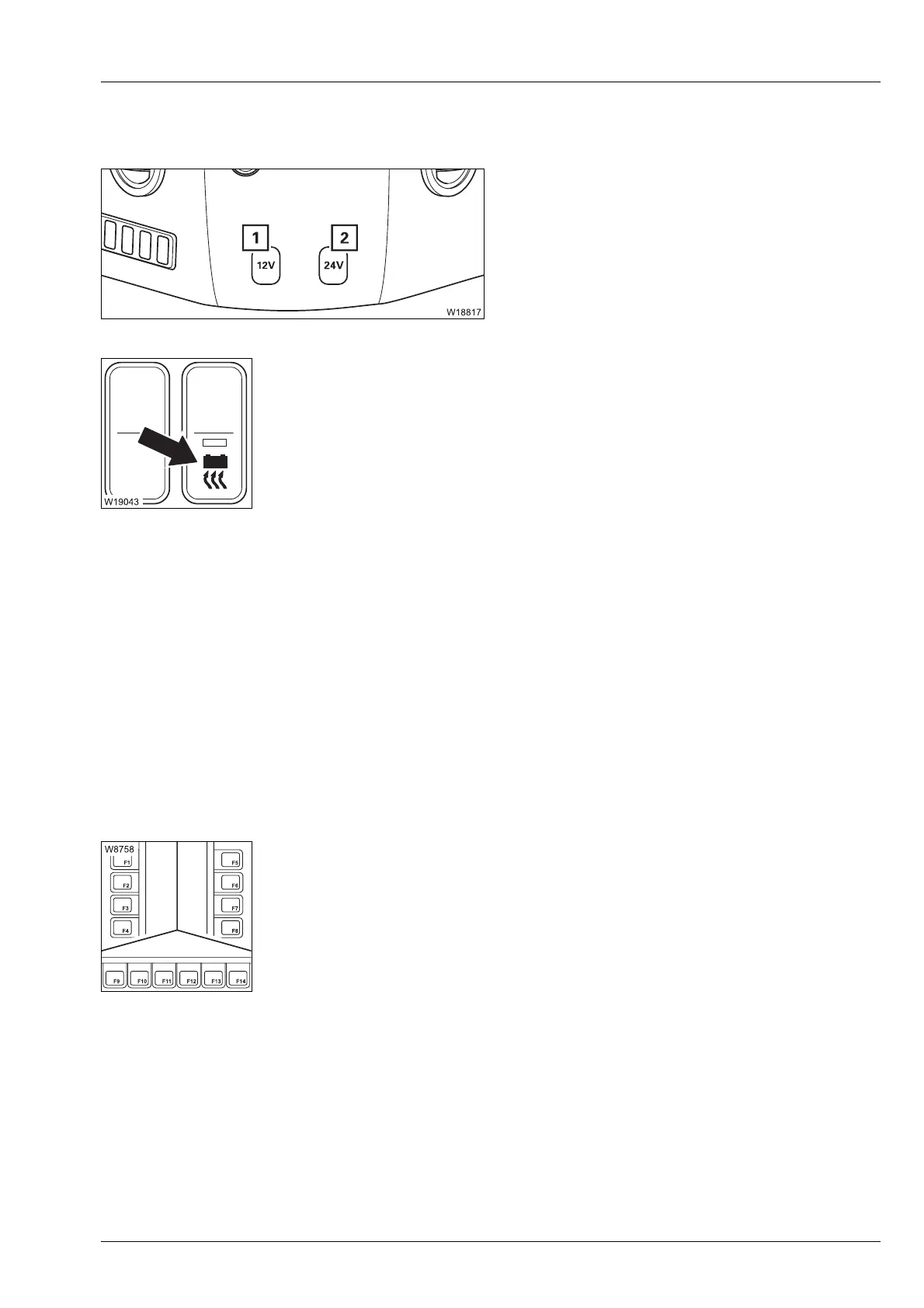

Sockets 12 V/24 V
Battery heater on/off
Further information on operation;
à Separate operating manual.
3.2.7 ECOS crane control
The truck crane GMK 6400 is equipped with the ECOS electronic crane con-
trol (Electronic Crane Operating System). ECOS includes a control unit in
the crane cab, a control unit in the driver's cab and several control units
(ESX0, ESX1, ESX2 etc.) and I/O circuit boards (I/O 0, I/O 1 etc.), which are
distributed on the superstructure and carrier.
Control unit This section contains the operating elements that are the same for all menus
opened.
Buttons F1 to F14
The function of buttons F1 to F14 is shown on the symbol next to or above
the button. After the button is pressed, the function displayed is executed if
it has been released.
s
1 Socket 12 V
2 Socket 24 V
– Down: Heating system on
–Up: Heating system off
