Operating elements for driving
3.2 Short description of the operating elements
3 - 40 3 112 993 en Operating manual GMK 6400
12.07.2013

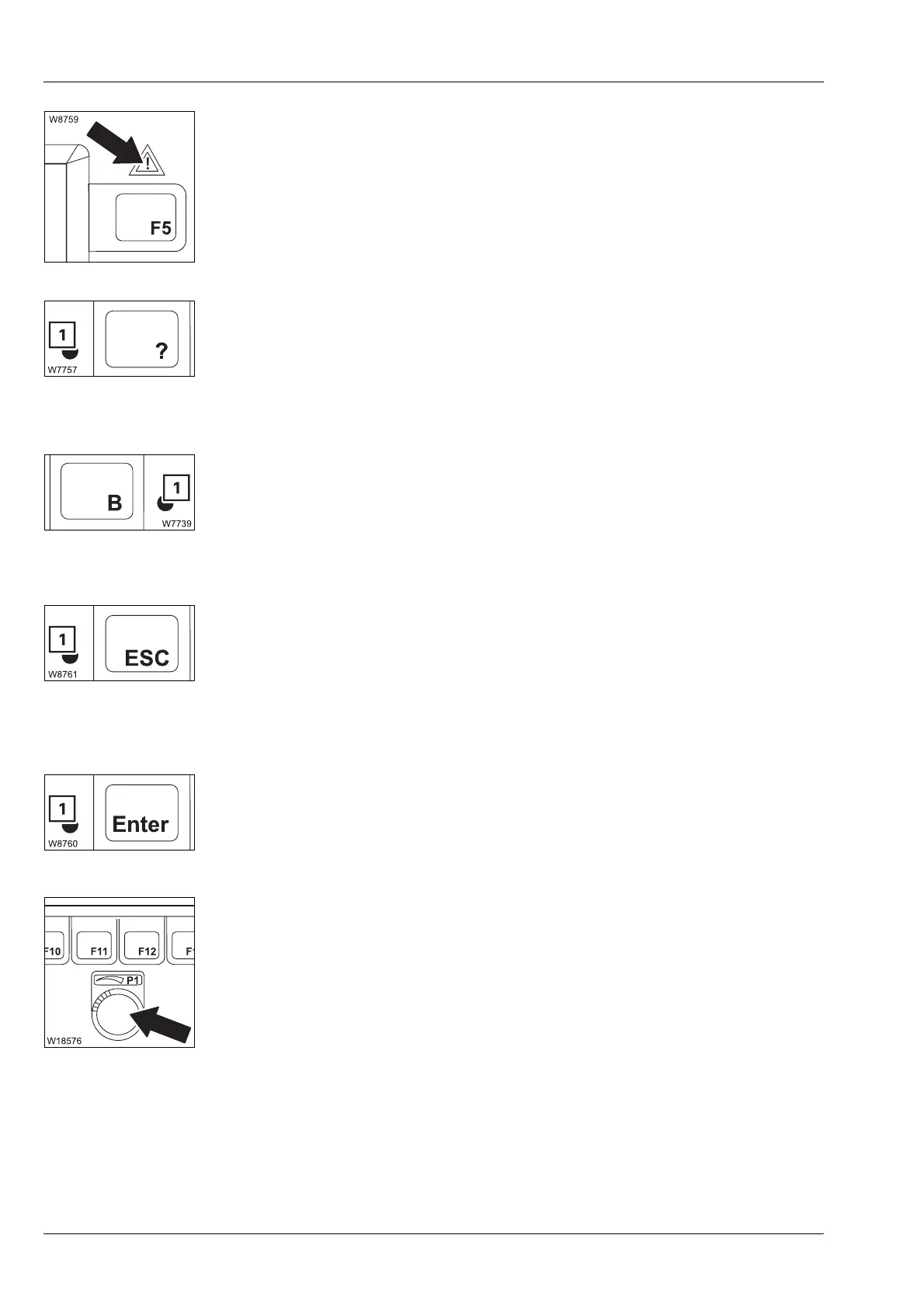

Error/warning message
Opening the Error submenu
The lamp (1) lights up or flashes.
Opening the Warning submenu
The lamp (1) lights up or flashes.
Exiting the submenu/input mode
The lamp (1) lights up.
Input confirmation
The lamp (1) lights up.
Entering values
The input mode is switched on.
– Flashing: New warning message or error has occurred
–On: Error acknowledged – but still present
– Off: No warning message or error present
à p. 11 - 114
– To open: Press button 1 x – submenu opens
à p. 11 - 114
– To open: Press button 1 x – submenu opens
à p. 5 - 47
– Press the button 1 x: – The opened submenu closes – the menu from
the next higher level is opened
– Input mode is deactivated
– Press the button 1 x: A newly entered value is stored
– To the right: Increases the value
– To the left: Reduces the value
Slow turning changes the value slowly.
Fast turning changes the value fast.
