Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 41
12.07.2013

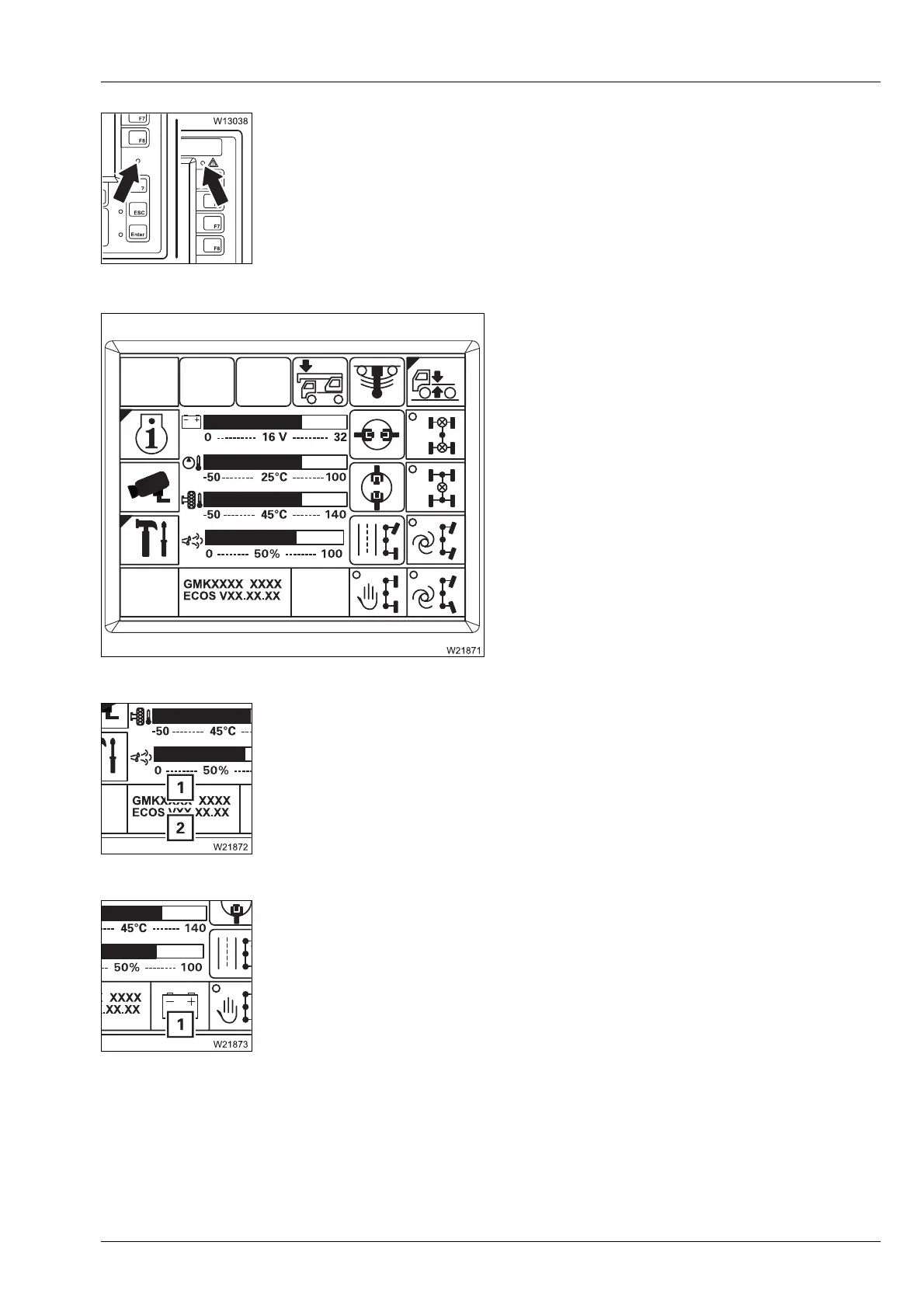

Sensor for brightness
Registers the brightness of the operating environment. The brightness of all
displays is automatically adjusted.
Manual input;
à p. 4 - 15.
ECOS display
The main menu appears after switching on the
ignition.
Symbols which represent submenus are indi-
cated at the top left by a blue corner.
Submenus are opened by pressing the button
next to or under the respective symbol.
Serial number/program version display
Warning display
1 Serial number
2 Current ECOS program version – always state in the event of malfunc-
tions;
à p. 7 - 35.
1 Shows the symbol of a current warning message – for several warning
messages, the displays are shown one after the other in continuous
sequence;
à p. 5 - 47.
