Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 51
12.07.2013

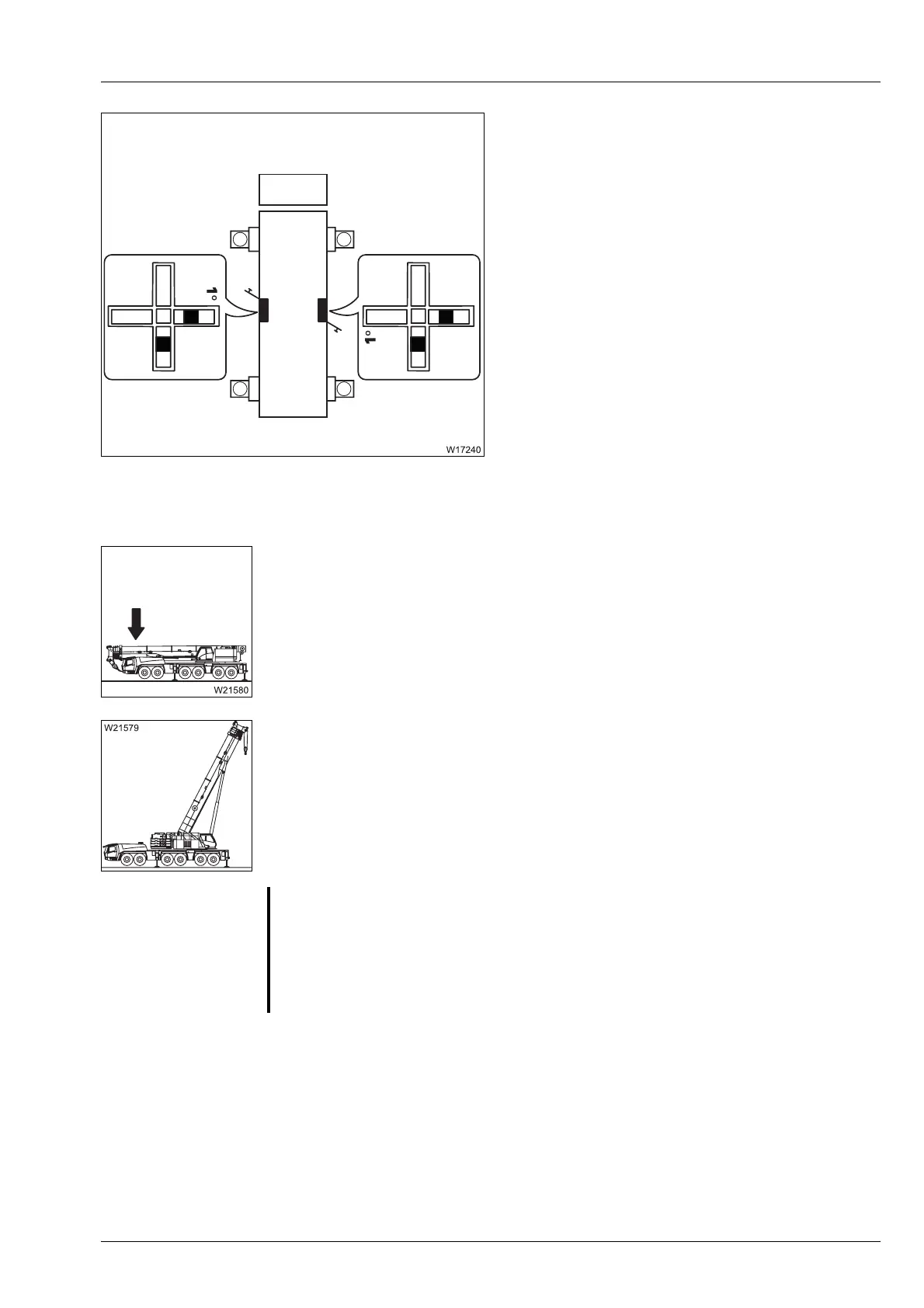

– Outriggers control units
The assignment to the carrier corresponds
to the top view.
Due to the position of the control units, the
displays on both sides differ.
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
Requirements The following prerequisites apply to manual and automatic alignment.
The main boom must be resting on the boom rest.
or
– The main boom must be raised.
– The load has been set down.
– The superstructure is in the 0° or 180° position.
s
G
Risk of overloading the main boom
Always slew the superstructure to the 0° or 180° position and set down the
load before levelling the truck crane.
In other positions, the deformation of the carrier will distort the indicated
inclination and the truck crane will be at an angle. This could cause the out-
rigger beam to become overloaded during crane operation.
