Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 46 3 112 993 en Operating manual GMK 6400
12.07.2013
Screwing in Before you retract/extend an outrigger beam after mounting, you must
screw in the spacers.
At the outrigger box

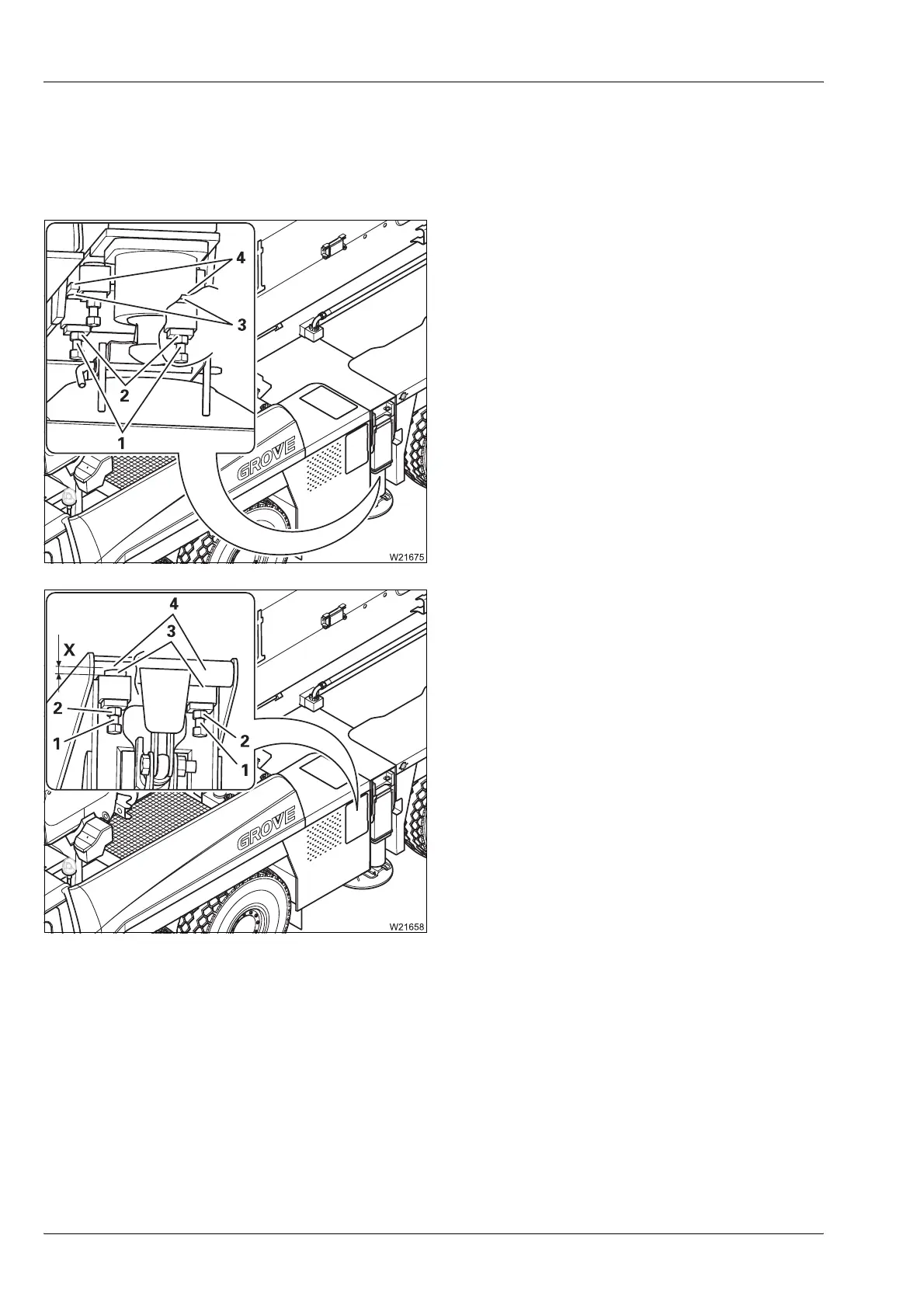

• Screw in the screws (1) as far as possible
until the spacers (3) are touching the outrig-
ger beam (4) at the top.
• Ensure that the outrigger beam is aligned
horizontally.
• Lock the screws in place with the nuts (2).
At the outriggers
• Screw in the screws (1):
– Until the spacers (3) lie on top on the out-
rigger box (4).
– Until the distance (X) to the outrigger box
(4) is an even 4 mm over the entire width.
• Lock the screws in place with the nuts (2).
