Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
Operating manual GMK 6400 3 112 993 en 6 - 55
12.07.2013

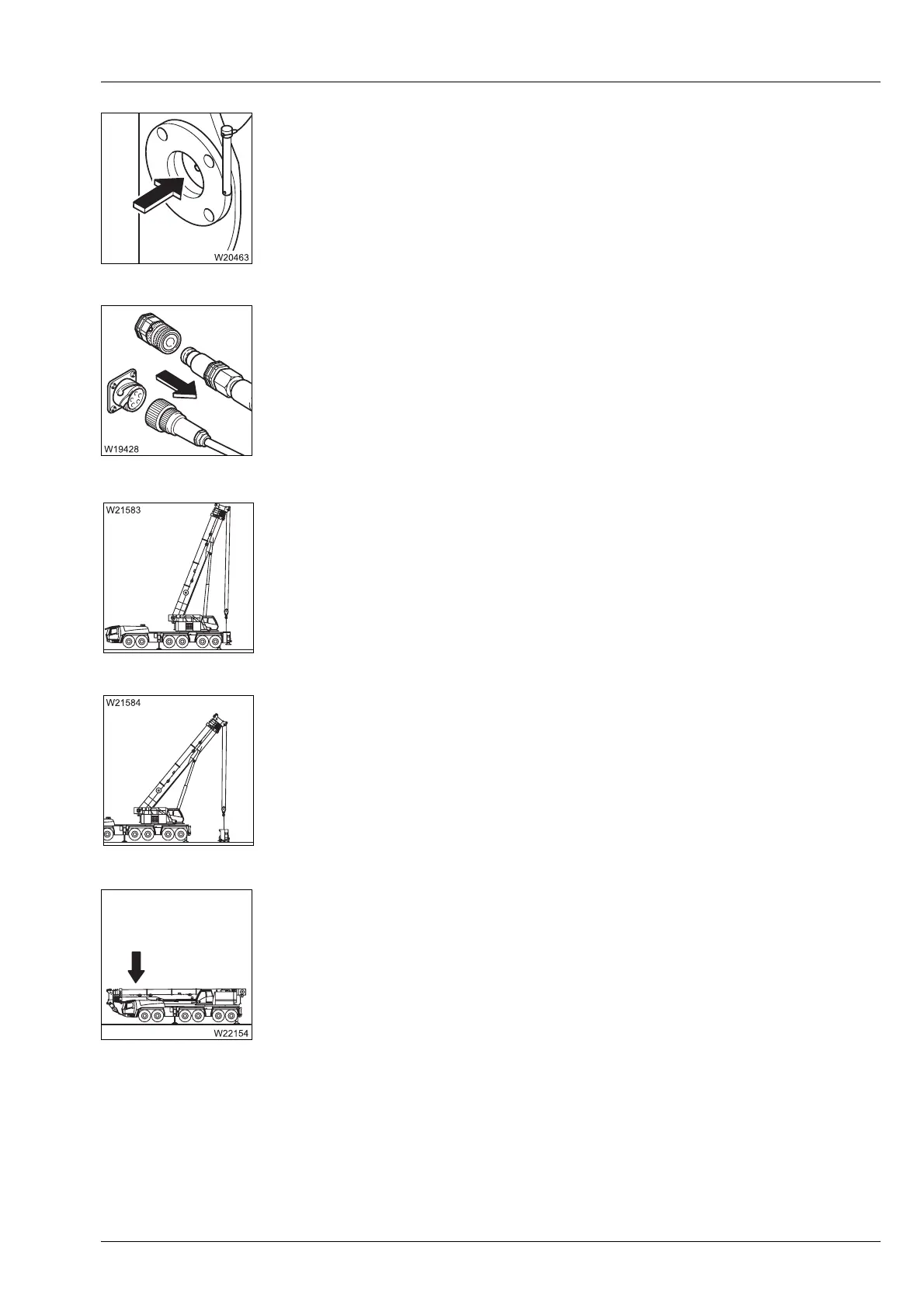

6. Release the locking pin between the outrigger box and carrier;
à p. 6 - 71.
7. – Remove the hydraulic connections;
à p. 6 - 64,
– Breaking the electrical connection;
à p. 6 - 63.
8. If the outrigger box is to be transported:
Turn off and secure the supporting box with truck crane on the separate
vehicle;
à Attaching/raising the supporting box with the truck crane, p. 6 - 65,
à Transporting the supporting box on the separate vehicle, p. 6 - 73.
9. If the outrigger box is to be set down:
Turn off the supporting box with truck crane on the supports;
à p. 6 - 66.
10. If the main boom is to be set down on the boom rest:
– With the RCL set accordingly, slew the superstructure to the front
and set down the main boom;
à After removal, p. 6 - 69.
