Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
6 - 66 3 112 993 en Operating manual GMK 6400
12.07.2013
Lifting • Raise the main boom until you are able lift the outrigger box upwards in
an upright position.
If the outrigger box is to be placed on a separate vehicle:
• Move the separate vehicle up to the truck crane so that you can set down
the outrigger box without overriding the RCL;
à p. 6 - 73
Do not override the RCL!

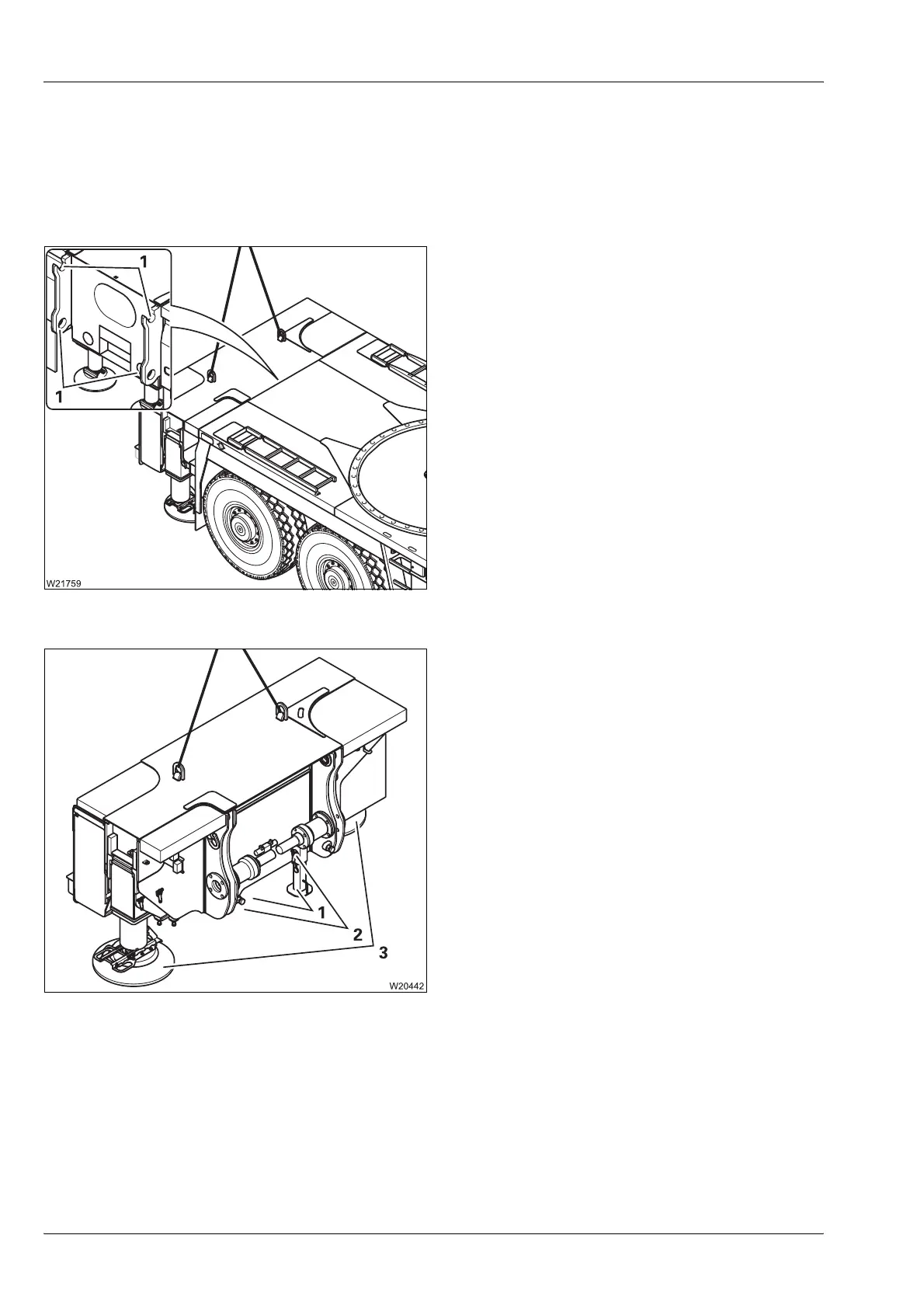

• Lift the outrigger box vertically out of the
carrier retainers (1) with the truck crane.
• Hold the supports (1) and remove the retain-
ing pins (2).
• Extend the supports (1).
• Secure the supports (1) by inserting the lock-
ing bolts (2) into the upper hole.
• Bring the outrigger pad (2) to the working-
position;
à p. 12 - 43.
