Driving modes and rigging for on-road driving

6.5 Installing/removing the supporting box

6 - 72 3 112 993 en Operating manual GMK 6400

12.07.2013

Releasing the

locking pin

• Sling the outrigger box before releasing the

pins.

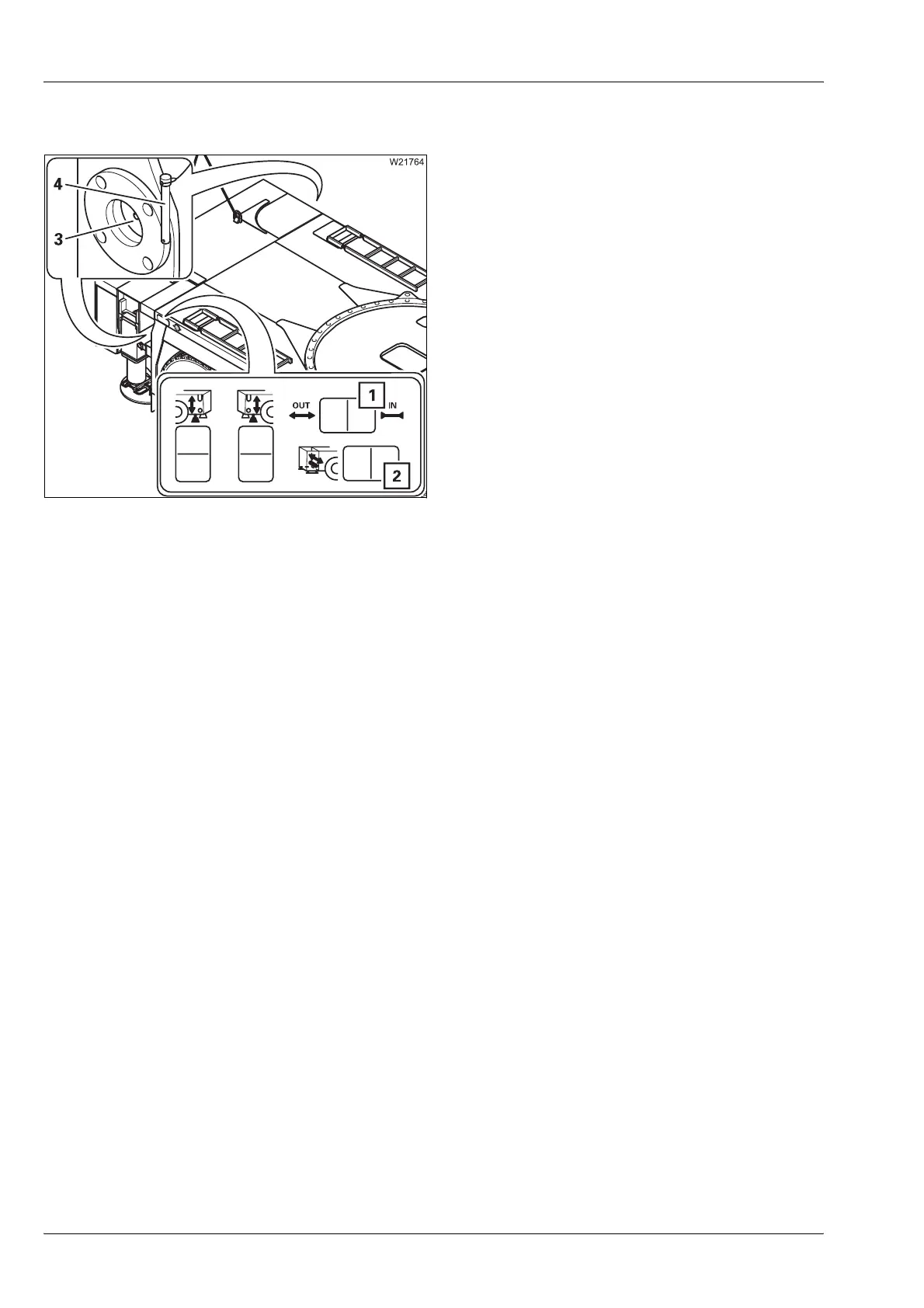

• Pull the securing plugs (4) out of the two

pins (3).

• Press the button (2) on the left and the but-

ton (1) on the right.

• Fully insert the pins (3).

The movement continues till you release the

button or the end position is reached.
