60 11. Measurement adjustment – Programming Manual

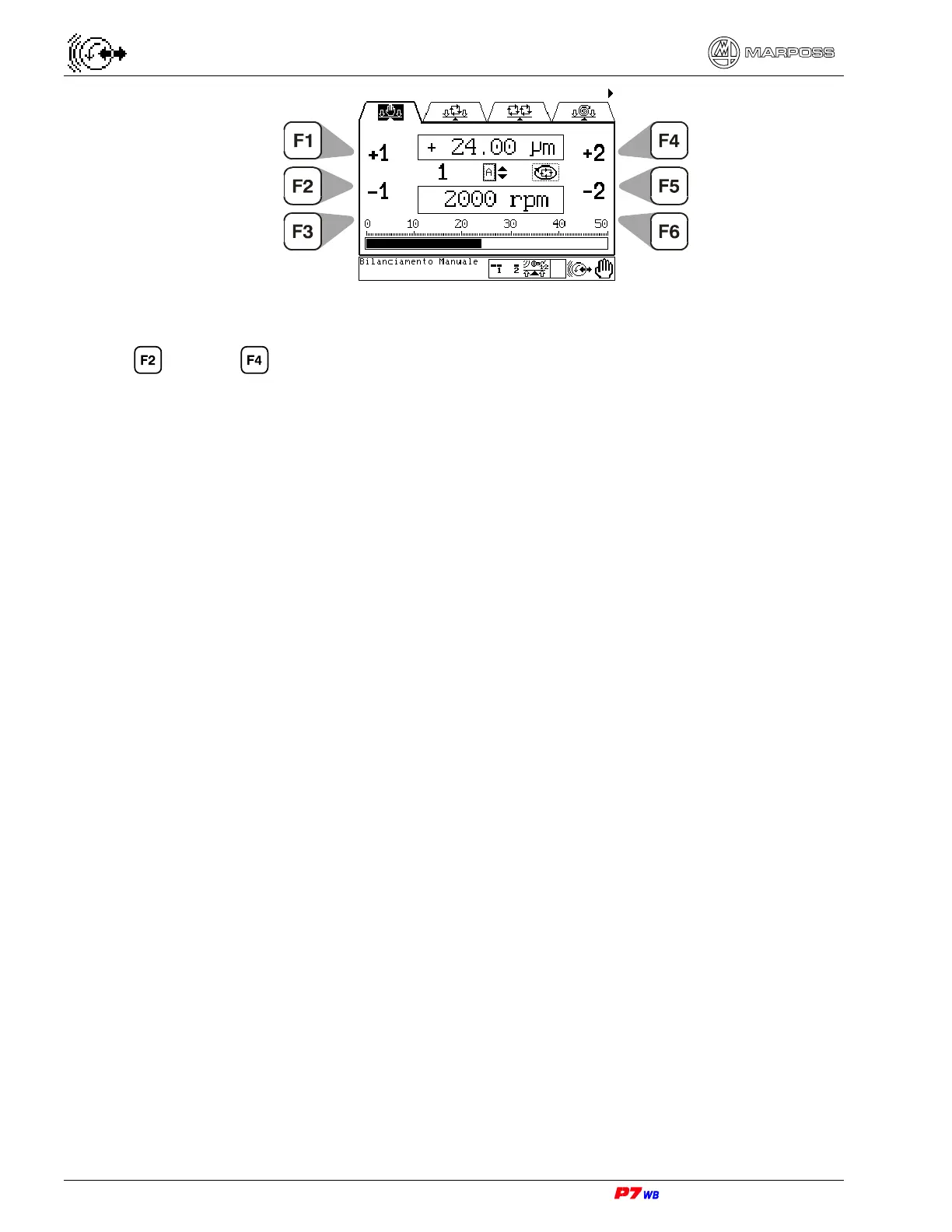

The masses can also be moved simultaneously and with opposite sign (example -1

with +2 ).

Motor of mass 1

backward

Motor of mass 1

forward

Motor of mass 2

forward

Motor of mass 2

backward
