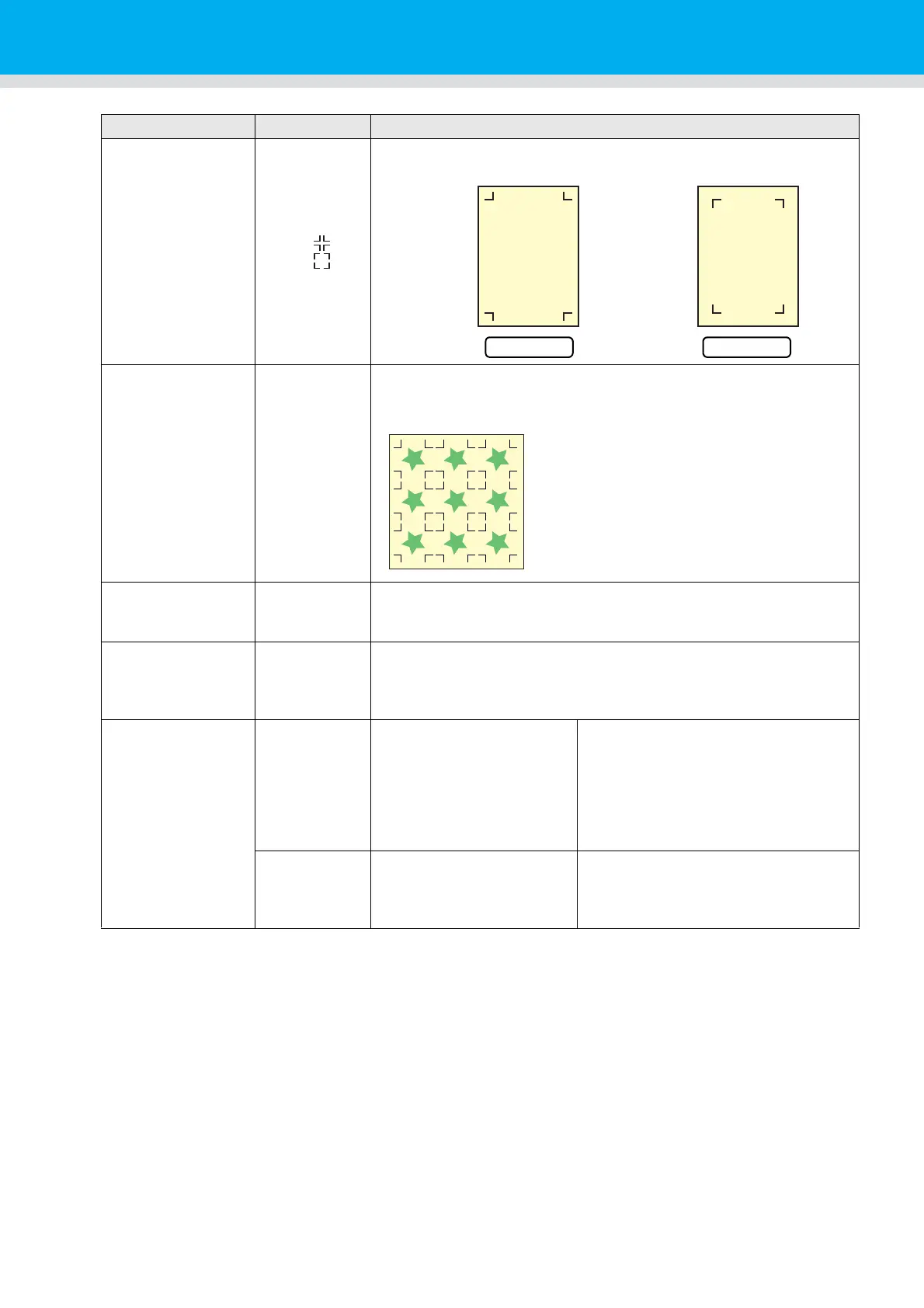

Set Item Set value Description
FORM
TYPE1
TYPE2
Select from three register mark styles:
COPIES X (->)
COPIES Y ( ↑ )
1 to 99
Effective when the same pattern is multi-printed at regular intervals.
Cuts automatically the preset number of sheets while detecting
registration marks consecutively based on the first data.
When the number of copies can be set on the
application software, like on the supplied
FineCut, set the value to [1].
SENSOR LEVEL 1 to 7
The bigger the numerical value is, the higher the sensitivity of the registration
mark sensor becomes. If it detects the registration mark by mistake, lower the
sensitivity. Generally, use it with the setting value of “4”.
MARK FILLUP ON, OFF
Specify the setting as “ON” when using the “Fill around the register mark”
function of FineCut to detect the printed registration mark.
Create using a registration mark size of 10 mm or more when filling in
around the registration mark.
Backside Data Cut
CUT TOOL
REC.CUTTER1, 2
Cutter
SWIVEL
When performing the backside cut, set
the cut condition of tool to cut the frame
(speed, pressure, offset, etc.). It
becomes ther set value of each tool of
plotter side.
Use the function of FineCut, "Cutting
from the reverse side."
CUT FFSET 0.0 ~ 50.0mm
When performing the backside cut, set
the place to cut the frame.
Use the function of FineCut "Cutting
from the reverse side ".
