Mounting Tools

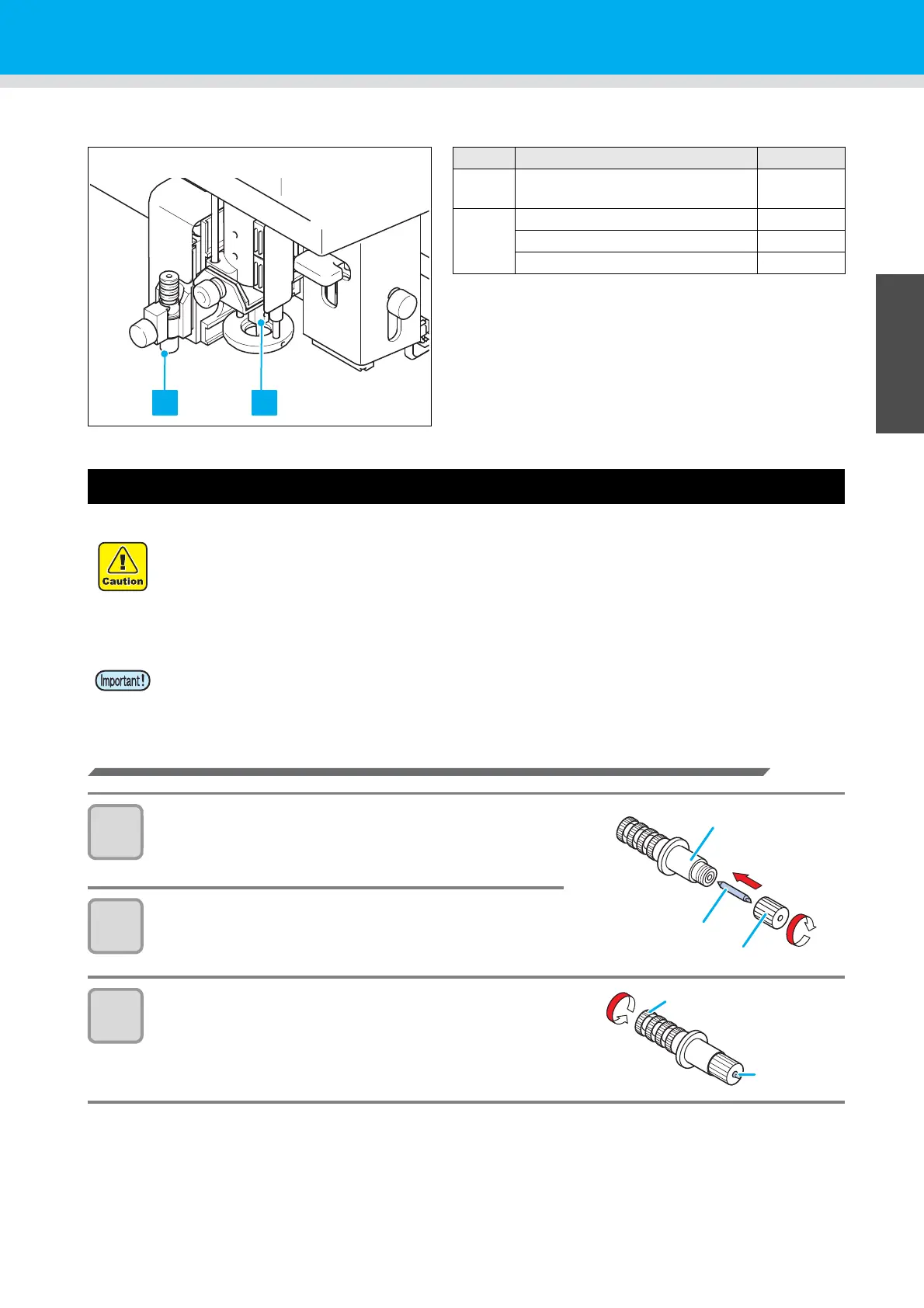

The heads (A, B) that mount tools are shown below.
Mounting the Pen or Swivel Blade
How to install a cutter (Blade replacement type)
1
Remove the cap located at the edge by rotating it.
2
Replace thecutter with a new one using tweezers or
the like.
3
Turn the adjusting knob to adjust the protruding
amount of the cutter.
• arrow to protrude the cutter blade.
( 0.5 mm per revolution)
Unit Applicable Tools See page
A
Pen, swivel cutter holder,
swivel cutter holder C
P. 1 - 11
B
Grid roller
P.1-16
Reciprocating cutter
P.1-17
Tangential cutter
P.1-17
• Don’t touch the cutter blade with your fingers.
->Sharp cutter tip may injure you.
• After setting the cutter, do not shake the cutter holder.
->The tip of the cutter may pop out and may injure you.
• Keep the cutter out of reach of children. Dispose of the used cutter blade in compliance with the
applicable regulations.
• The dedicated cutter blade is built in the cutter holder C with edge (white)(SPA-0267). It cannot be
removed.
