MIMAKI CFL-605RT - Continuous Cutting with Register Marks

4-13
1
1
1
4

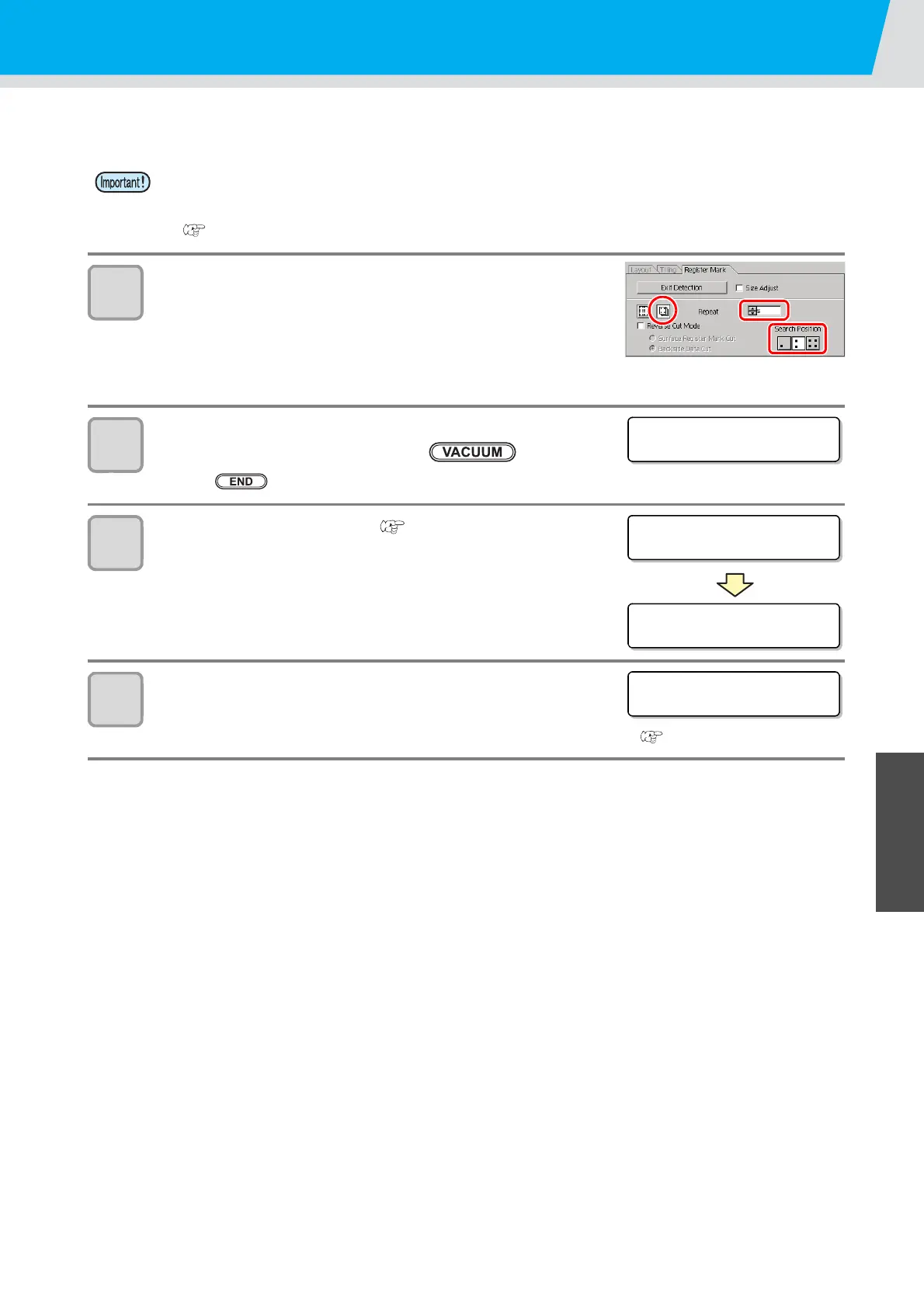

Register Mark Reading Functions
Continuous Cutting of Register Marks
The FineCut cutting software permits continuous cutting of workpieces with only one set of register mark data
printed.
1
Make the FineCut settings
and start plotting.
(1) Select the single mode.
(2) Set the number of continuous cuts.
(3) Select the number of register marks to detect.
• For details, see the FineCut Operation Manual.
2
When cutting of the first workpiece is complete,
replace the workpiece and press .
• Press to cancel continuous cutting.
3
Detect the register marks. ( P.4-10)
• Copying starts when register mark detection is complete.
• Repeat Step 2 and Step 3 for the designated number of cuts.
4
When the designated number of workpieces has been cut
and the system reverts to remote mode.
• Head withdrawal follows the setting of [AFTER PLOT] - [AUTO VIEW]. ( P.1-24)
• Select “multi mode” when cutting plural images printed on one media.
• When data remains in the receive buffer, the remaining data will also be cut. Be sure to carry out the
Data Clear operation before performing continuous cutting.
P.2-26"Interrupting Processing (Data Clear)"
<REMOTE>
SHEET EXCHANGE
<MARK DETECT> mm
X: +0000 . 0 Y: +0000 . 0
<MARK DETECT> mm
X(1-2)=
****
.
*
<LOCAL>
A:SWIVEL
