MIMAKI CFL-605RT - Two-Point Axis Alignment

3-6

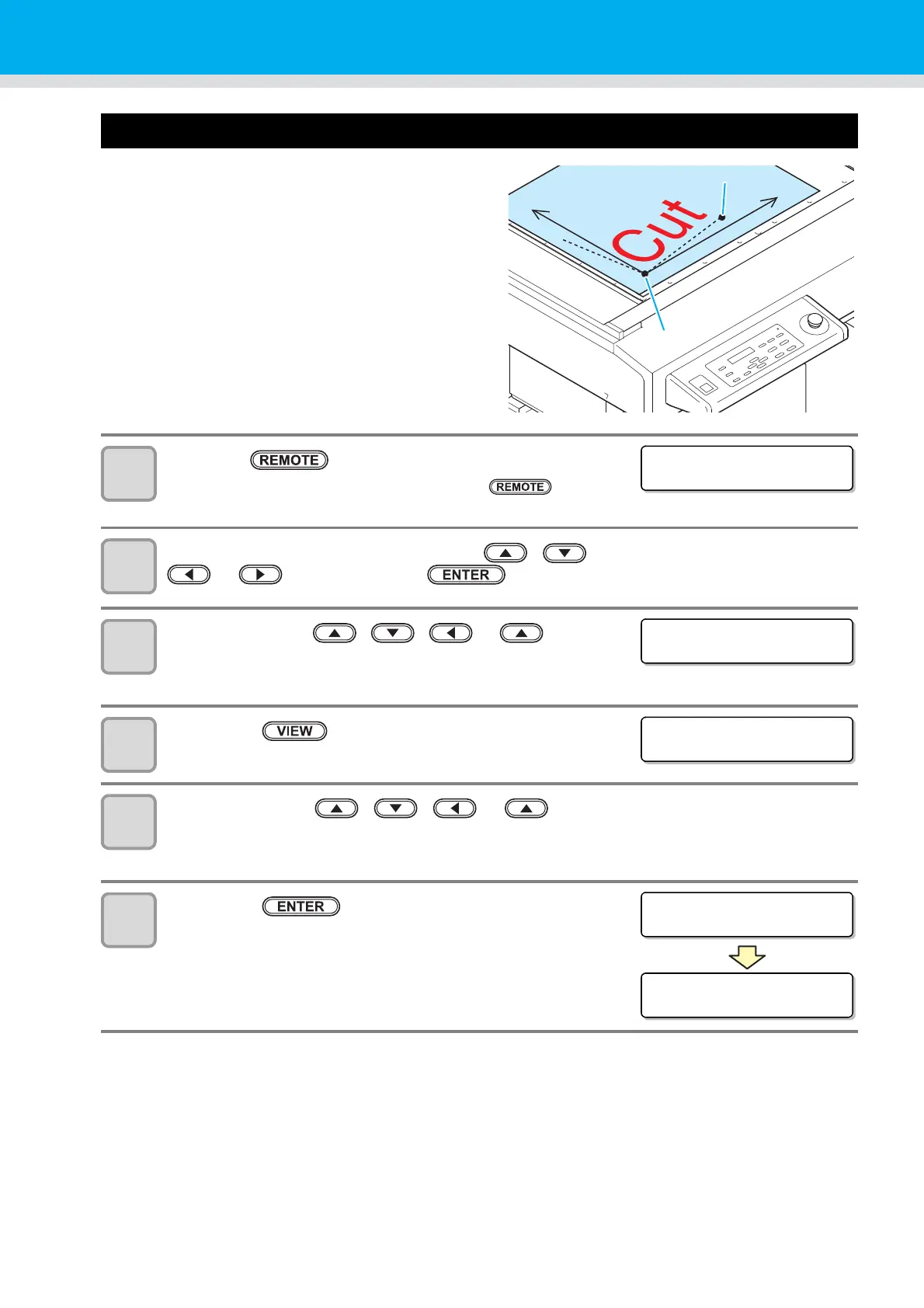

Two-point axis alignment
If a ruled sheet is set, align the horizontal and vertical axes
with the appropriate lines on the sheet.
Correct the axial inclination (θ) by setting a compensation
point in combination with the origin.
1
Press the key to set to the local mode.
• Confirm in advance that even if you press the key to enter
the remote mode, the plotter does not perform cutting (plotting).
2
Set the Origin by pressing the jog key , ,
or to and press the key.
3
Press the jog key , , or to enter
the jog mode.
• Press either one of the jog keys, and you can enter the jog mode.
4
Press the
key.
5
Press the jog key , , or to set
the compensation point.
• θ= -45 degrees to 45 degrees
6
Press the
key to decide the origin.
• The display is as shown on the right briefly, after which the plotter
returns to the local mode.
Y
X
Origin
Compensation point
<LOCAL>
A:PEN
<OR I G I N SET>PEN mm
X: 0.0 Y: 0.0
<AX I SS COR> mm
X: +0000 . 0 Y: +0000 . 0
*AXISS CORRECT*
th= 10.0°
<LOCAL>
A:PEN
