MIMAKI CFL-605RT - Setting Automatic Head Retraction

1-24

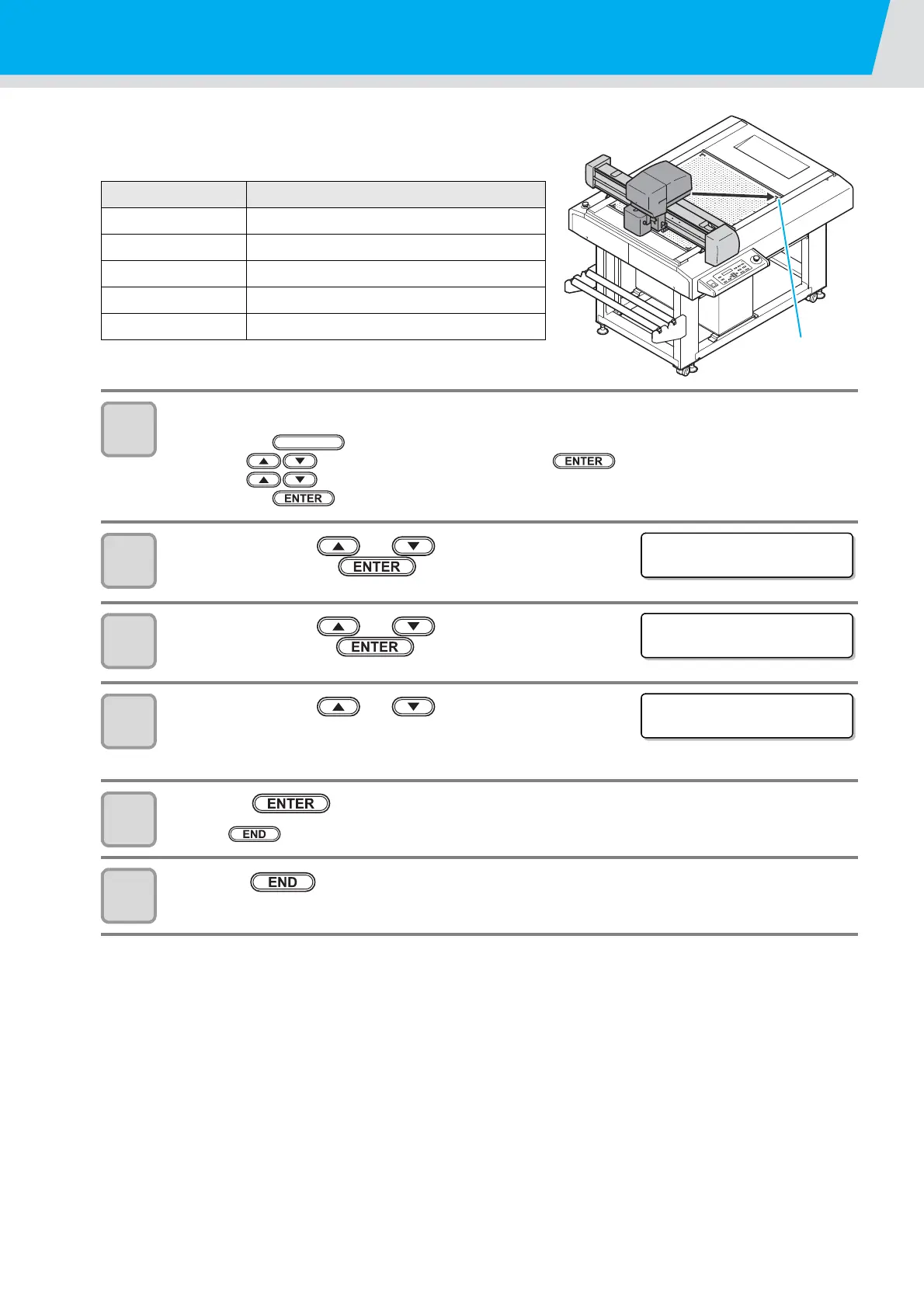

Setting Automatic Head Retraction
Sets the time before the head begins to retract to the retraction
position when cutting (drawing) of data from the PC is complete.
1
Select [PLOT SETTING] of the set up menu.
(1) Press the key in LOCAL.
(2) Press to select [SET UP] and press the key.
(3) Press to select [PLOT SETTING].
(4) Press the key.
2
Press the jog key or to select [AFTER
PLOT], and ress the key.
3
Press the jog key or to select [AUTO
VIEW], and ress the key.
4
Press the jog key or to select retraction
position.
• Set values: OFF , LOW-LEFT, LOW-RIGHT, UP-LEFT, UP-RIGHT
5
Press the key.
• Press if you do not want to save the setting.
6
Press the key twice for terminating this function.
Item Set value
OFF No automatic retraction
(1)
LOW-LEFT Save to the lower left
(2)
LOW-RIGHT Save to the lower right.
(3)
UP-LEFT Save to the upper left.
(4)
UP-RIGHT Save to the upper right.
Retraction
position
FUNCTION
<AFTER PLOT>


AUTO V I EW: OFF
<AFTER PLOT>
AUTO V I EW: OFF
<AFTER PLOT>
AUTO V I EW: UP - LEFT
