Mounting the Tangential Cutter
Mount the tangential cutter in Unit B.

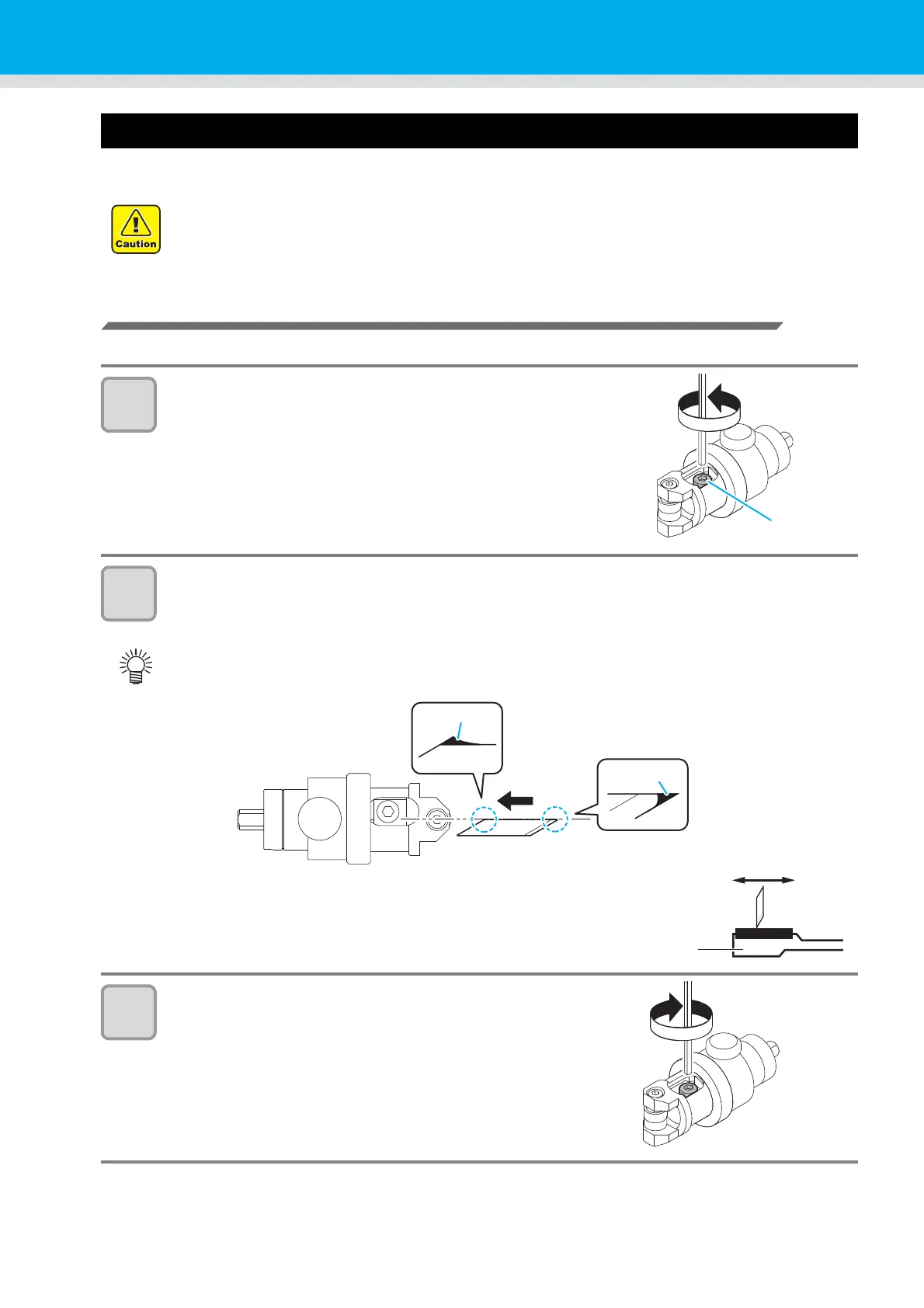

Mounting the Tangential Cutter Blade
Mount the tangential cutter blade in the cutter holder.
1
Use the 2.5 mm hexagonal wrench supplied to
loosen the stopper screw.
• Loosen the stopper screw on the cutter holder.
• Turn the cutter stopper counterclockwise to loosen it.
2
Insert the blade.
• Insert the blade using the tweezers supplied.
• Insert the blade into the holder, keeping it in the direction shown in the diagram.
3
Tighten the cutter stopper.
• Turn the cutter stopper clockwise to tighten it.
• Do not touch the blade with bare hands. This may cause injury.
• When mounting an NT high-speed blade, use the hand lapper supplied to round off the tip and grind
down the ridge. Grinding off the ridge allows the blade to fit properly in the holder. Rounding off the tip
improves the life of the cutter.
• Lap the tip gently 5 to 10 times while checking the amount
ground away.
