MIMAKI CFL-605RT - Rotating Coordinate Axes (ROTATE)

3-15
1
1
3
Useful Function
5
6

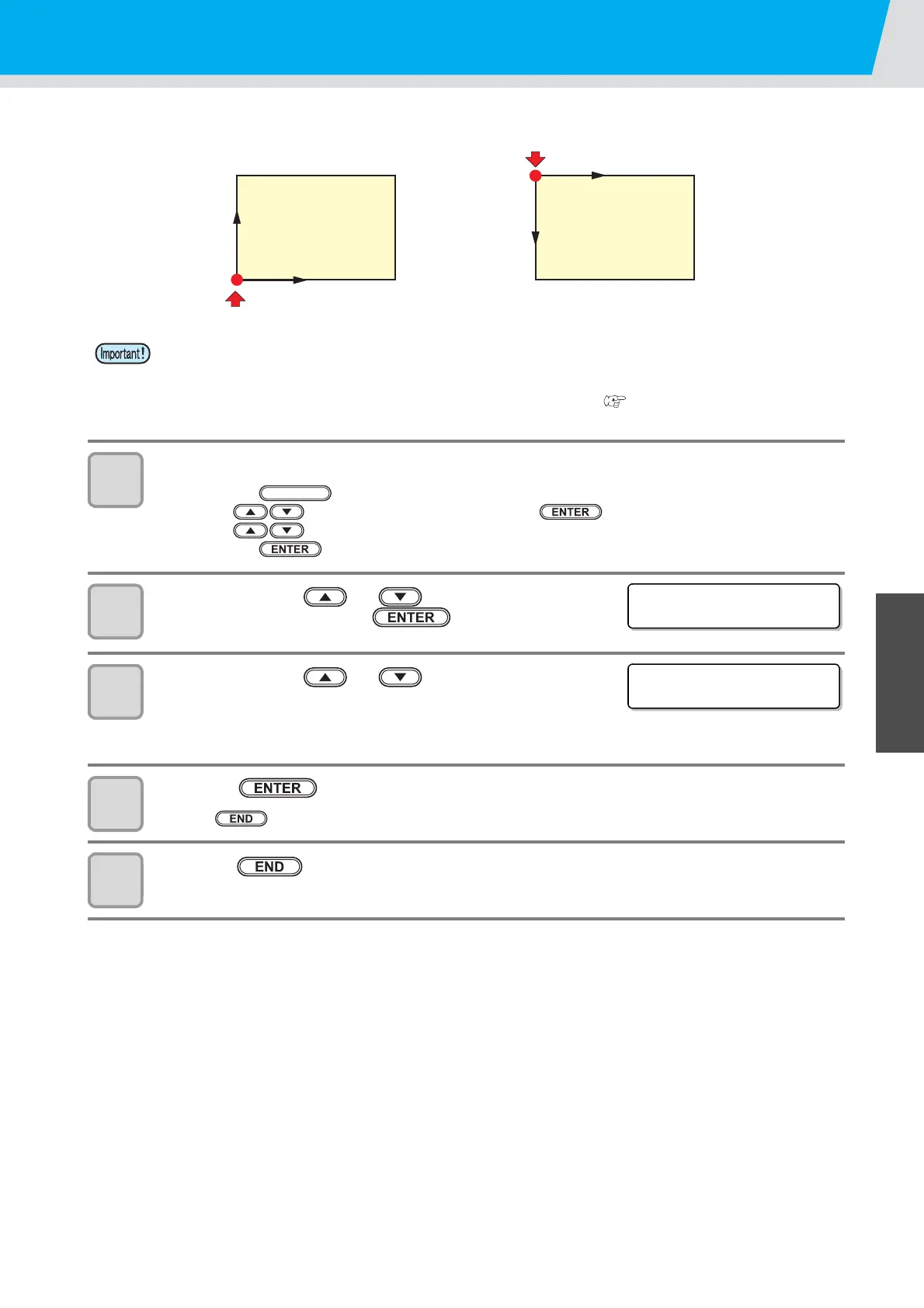

Rotating Coordinate Axes (ROTATE)
This function sets the location of origin and direction of the axes of coordinates according to the application
software to be used. (ROTATION function)
1
Select [PLOT SETTING] of the set up menu.
(1) Press the key in LOCAL.
(2) Press to select [SET UP] and press the key.
(3) Press to select [PLOT SETTING].
(4) Press the key.
2
Press the jog key or to select
[ROTATION], and ress the key.
3
Press the jog key or to select Setting.
• ON : Performs the rotation of the axes of coordinates and the
movement of the origin at the same time.
• OFF : Does not perform the rotation.
4
Press the key.
• Press if you do not want to save the setting.
5
Press the key twice for terminating this function.
• Confirm that any data to be cut is not saved in the receiving buffer. If you change the set values, the
contents of the receiving buffer are cleared completely.
• Rotation cannot be enabled if the register mark detection function is enabled.
First turn off the register mark function before enabling rotation. ( P.4-9)
• The cut area settings are returned to the default settings if the rotation settings are changed.
Origin
Rotating function : OFF
Rotating function : ON
Origin
FUNCTION
<PLOT SETT I NG>
ROTAT I ON : OF F
<PLOT SETT I NG>
ROTAT I ON : ON
