Preparing the Cutting Panel
Attach the felt mat
If using reciprocating, attach a felt mat or hard mat to match the work to be cut.( P.1-10)
Inserting the Set Guide Plates
Insert the set guide plates as a guide to keep the workpiece straight.
Insert them into the appropriate positions for the size of the workpiece.
• Insert a set guide plate into the holes
at each edge of the cutting panel.
• When using the tangential cutter, please use the cutting mat with holes.
• When using a reciprocating cutter, please use by placing a felt mat or hard mat on top of the cutting
mat.
Please use properly felt mat / hard mat by the work. ( P.1-10)
• Make sure to firmly insert the set guide plate into the hole of the cut panel surface. When the power is
turned on while some area of the set guide plate floats, the set guide plate may be hit by the head and
may cause the head damage.

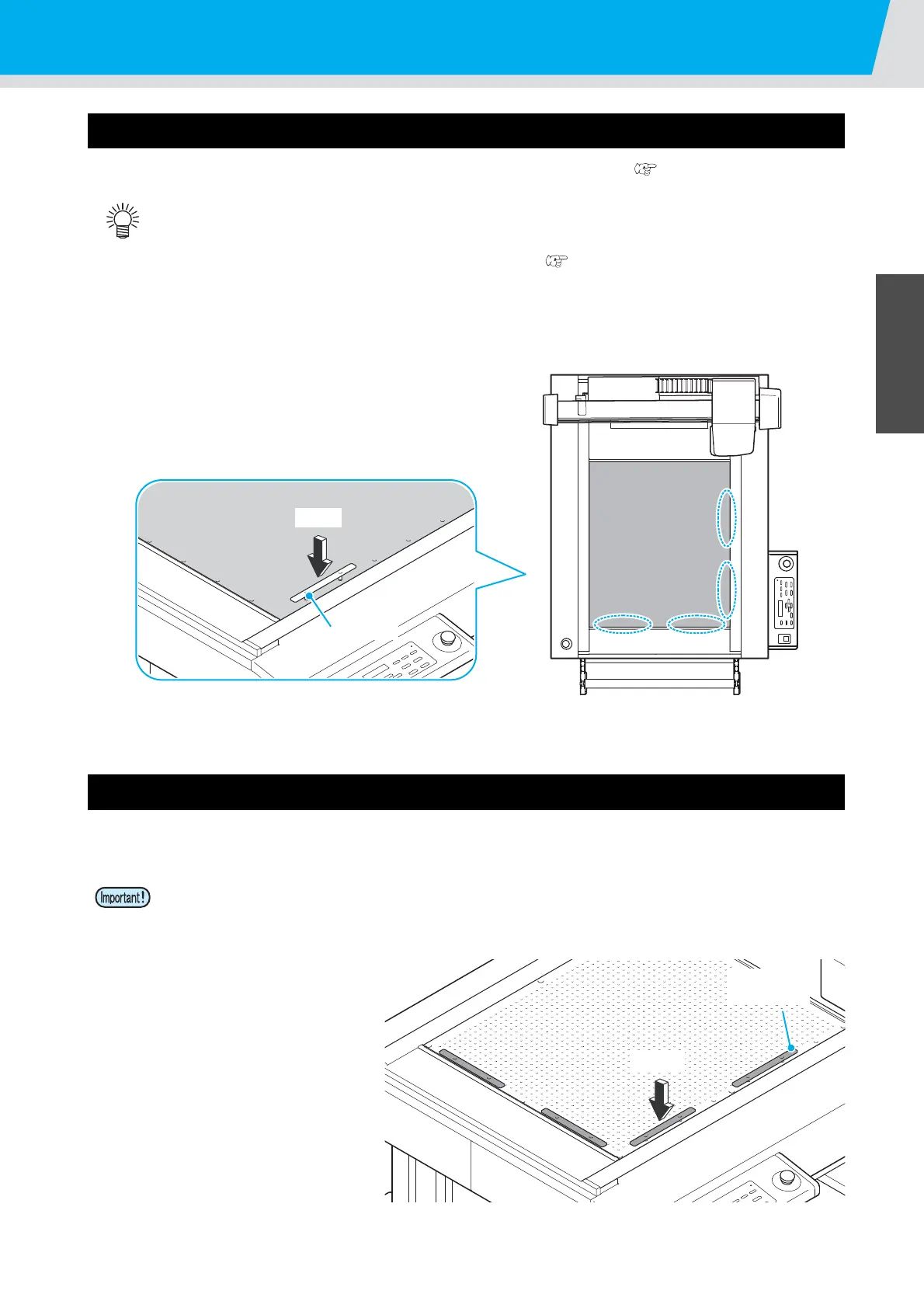

(1) Put the mat on the cutting panel.
(2) Insert a set guide plate into the holes at each edge of the
cutting panel.
• Insert the set guide plate along the edges of the mat.
• Set set guide plate on the positions circled in the right.
Set guide
plate
Insert
