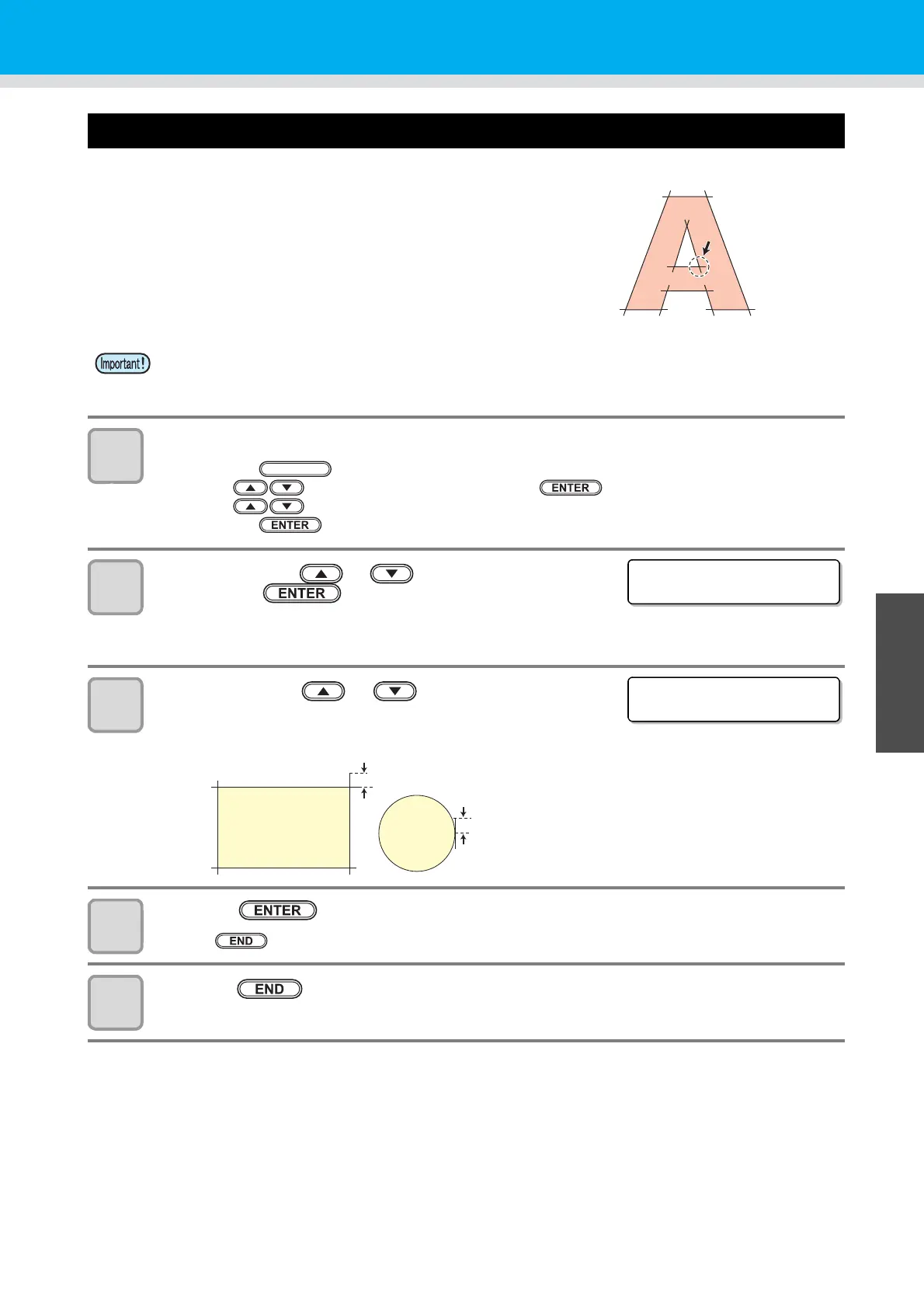

Make the media without uncut area
By over lapping the start point and the end point arbitrarily, you can make the media without uncut area.
Specify the over cut function (valid/invalid) and the length of the over
cut. If the length of the over cut is set, when cut starts, cut will be
performed from the position to the front by the specified length and the
tool will move up going too far at the end.
Additionally, perform over-cutting of corners other than the start and
end points.
1
Select [PLOT SETTING] of the set up menu.
(1) Press the key in LOCAL.
(2) Press to select [SET UP] and press the key.
(3) Press to select [PLOT SETTING].
(4) Press the key.
2
Press the jog key or to select [OVER CUT],
and ress the key.
3
Press the jog key or to select OVER CUT
setting.
• Setting value: OFF or a value from 0.1 to 1.0mm (0.1mm unit)
4
Press the key.
• Press if you do not want to save the setting.
5
Press the key twice for terminating this function.
• Setting proper over cut can reduce uncut area of start and end point of a media easy to bend. If too
large value is set, the result may have a rupture.
• Over cut is only applicable at the drawing of the eccentric cutter.
Over cut
part
FUNCTION
<PLOT SETT I NG>
OVER CUT : OF F
<PLOT SETT I NG>
OVER CUT : 1 . 0mm
0.1 ～ 1mm
0.1 ～ 1mm
