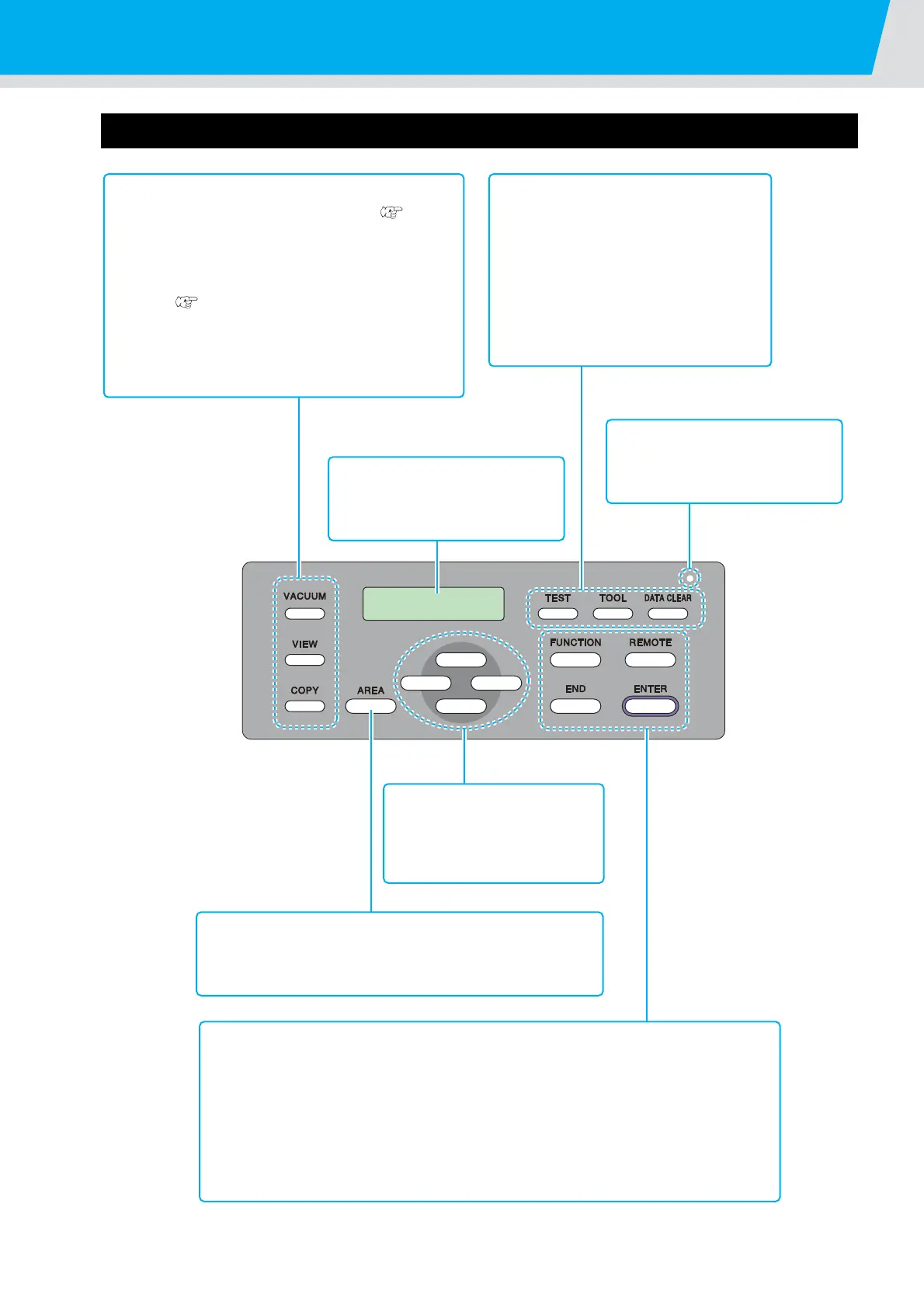

AREA key
Can check the cut area that was set during Local.
When pressed during jog, can set the cut area.
Display
Displays the unit status and setup
menus.
FUNCTION keys
Select functions on the local menu and set
values.
END key
Cancels a selection (clears data, copying,
etc.) or reverts to the previous level without
saving entered values.
TEST key
Execute a test cut.
TOOL key
Change the tool and set the cut conditions.
DATA CLEAR key
Execute the data clear.
Jog keys
Move the head in the direction of
the arrow, when the local menu is
displayed.
VACUUM key
Turns vacuum adhesion of the workpiece on ( P.2-7).
VIEW key
The head is saved to the set location.
When pressed during jog, can set the axis
alignment( P.3-6).
COPY key
Re-cut the data once cut in the offline state
POWER lamp
The green lamp lights when the unit
power is ON.
REMOTE key
Switches the unit between the remote
status and local status.
ENTER key
Saves the entered values.
