Useful Function
5
6
Functions in the Jog Mode

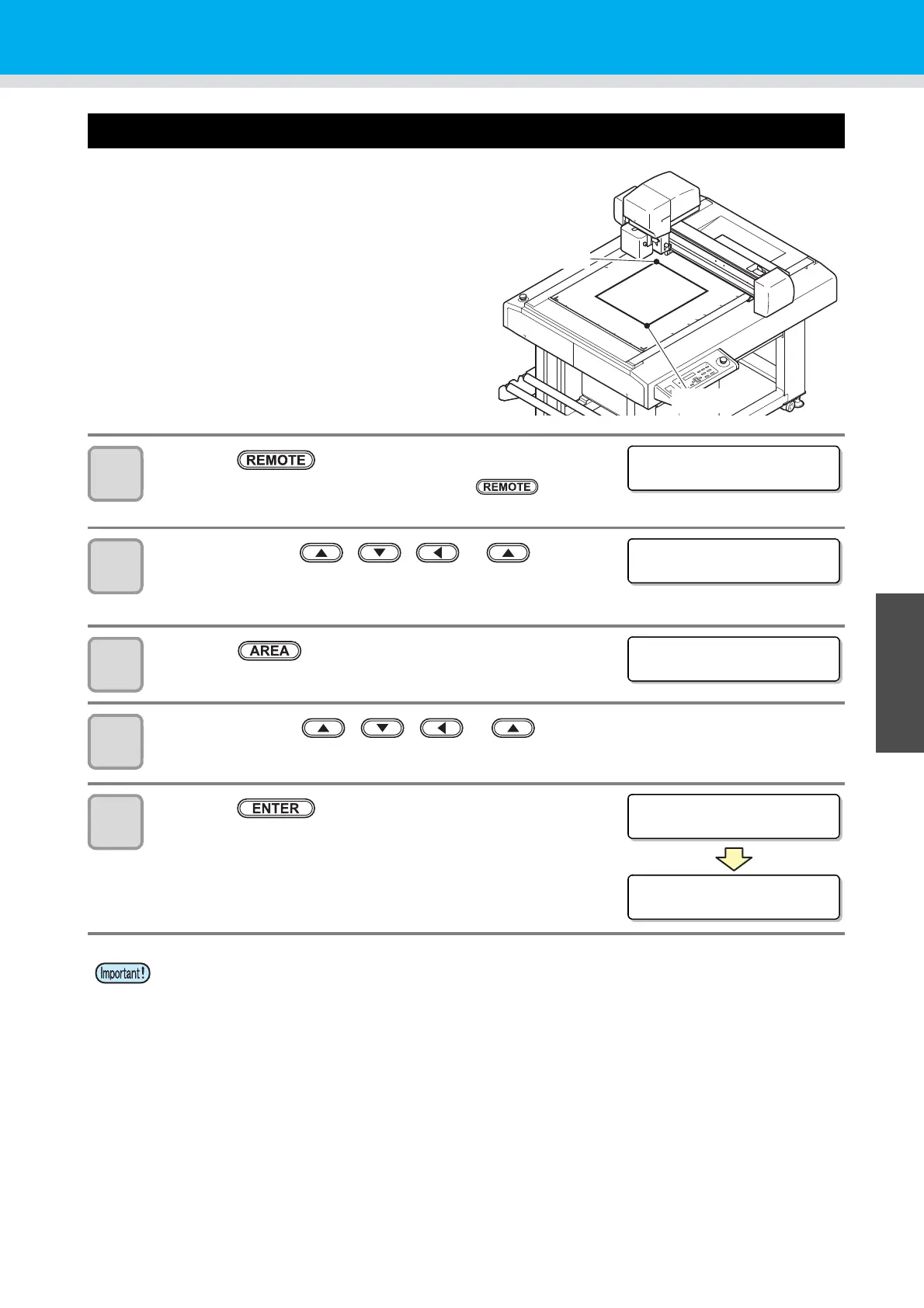

Cutting area
Set the area in which the plotter performs cutting (plotting).
The area that has a diagonal line extending from the origin
to a given UR (upper right) point is the available cutting
area. The cutting area setting will be cleared by turning the
power off.
1
Press the key to set to the local mode.
• Confirm in advance that even if you press the key to enter
the remote mode, the plotter does not perform cutting (plotting).
2
Press the jog key , , or to enter
the jog mode.
• Press either one of the jog keys, and you can enter the jog mode.
3
Press the key.
4
Press the jog key , , or to set
the point UR.
5
Press the key to decide the point UR.
• The display is as shown on the right briefly, after which the plotter
returns to the local mode.
• Be sure to set the upper right point in the area located in the normal direction from the origin.
• Be sure to set the origin in the cutting area. If the origin is located outside the cutting area, the plotter
will go into an error state.
Cutting
area
Origin
Upper-right
point (UR)
<OR I G I N SET>PEN mm
X: 0.0 Y: 0.0
<CUT AREA> mm
X: +0000 . 0 Y: +0000 . 0
*CUT AREA*
X: 300 . 0 Y: 300 . 0
<LOCAL>
A:PEN
