Mounting the Grid Roller
Mount the grid roller in Unit B.

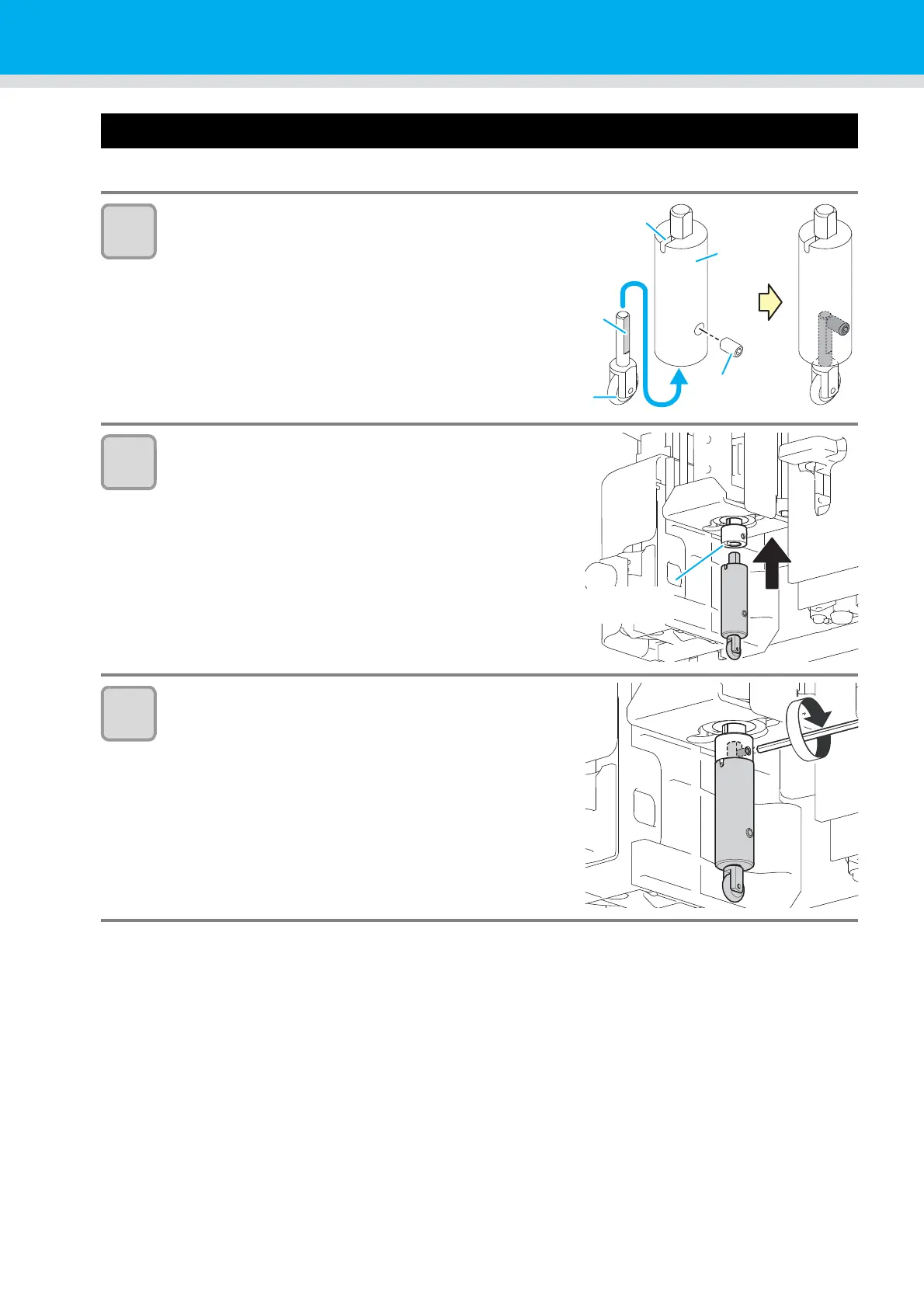

1
Attach the grid tool to grid holder
(1) Remove the set screw of the grid holder
(2) Plug the grid roller to scribe holder
(3) Fixed with set screws
2
Insert the Unit B pin into
the groove in the grid roller.
3
Use the 2.0 mm hexagonal wrench supplied
to tighten the stopper screw.
• Firmly fasten the cutter holder.
• Correct quality may not be achieved if the stopper screw is
not fully tightened.
Grid
holder
Grid roller
Stopper
screw
Groove
Flat part
Align the pin
and groove.
