Setup
5
6
6

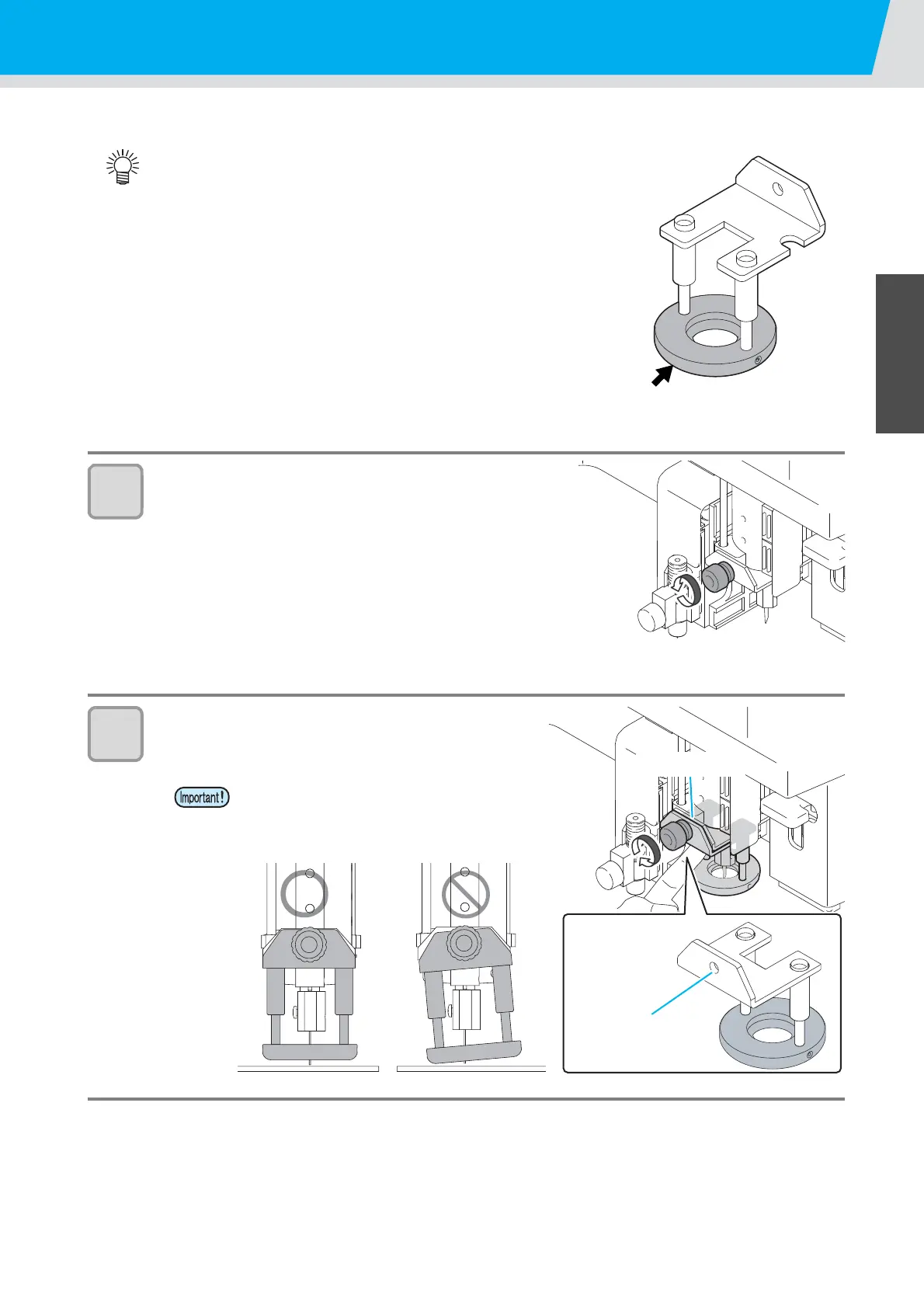

Attach the Work Holder
The work holder prevents the work from moving up after it is cut.
1
Remove the fixing screw of unit B.
• To loosen the screw, turn it counter clockwise.
2
Set the work holder to unit B andtighten the
screw.
• The work holder can be used for works of up to 10 mm
thick.The work holder does not support thickness greater
than 10 mm.
• When using soft works (sponges, etc.), do not use the
work holder. The work holder is designed to hold works
such as corrugated fiberboard.
• When using a work holder, be sure that overall bottom
surface is flat against the work.
If bottom surface run off the work edge, in a case cutting
edge of a work, cutter does not down and may not cut
correctly.
• When installing the work holder, press
against the mounting surface of the work
holder to supporter base, and attach as
work holder is not inclined.
Bottom surface
Work holder
Set the work holderby
aligning its holewith the
screw holeon unit B.
Supporter base
To Next Page
