1-18
Mounting Tools
Replacing the Reciprocating Cutter
1
Follow steps "Mounting the Reciprocating Cutter
Blade" to replace the blade.

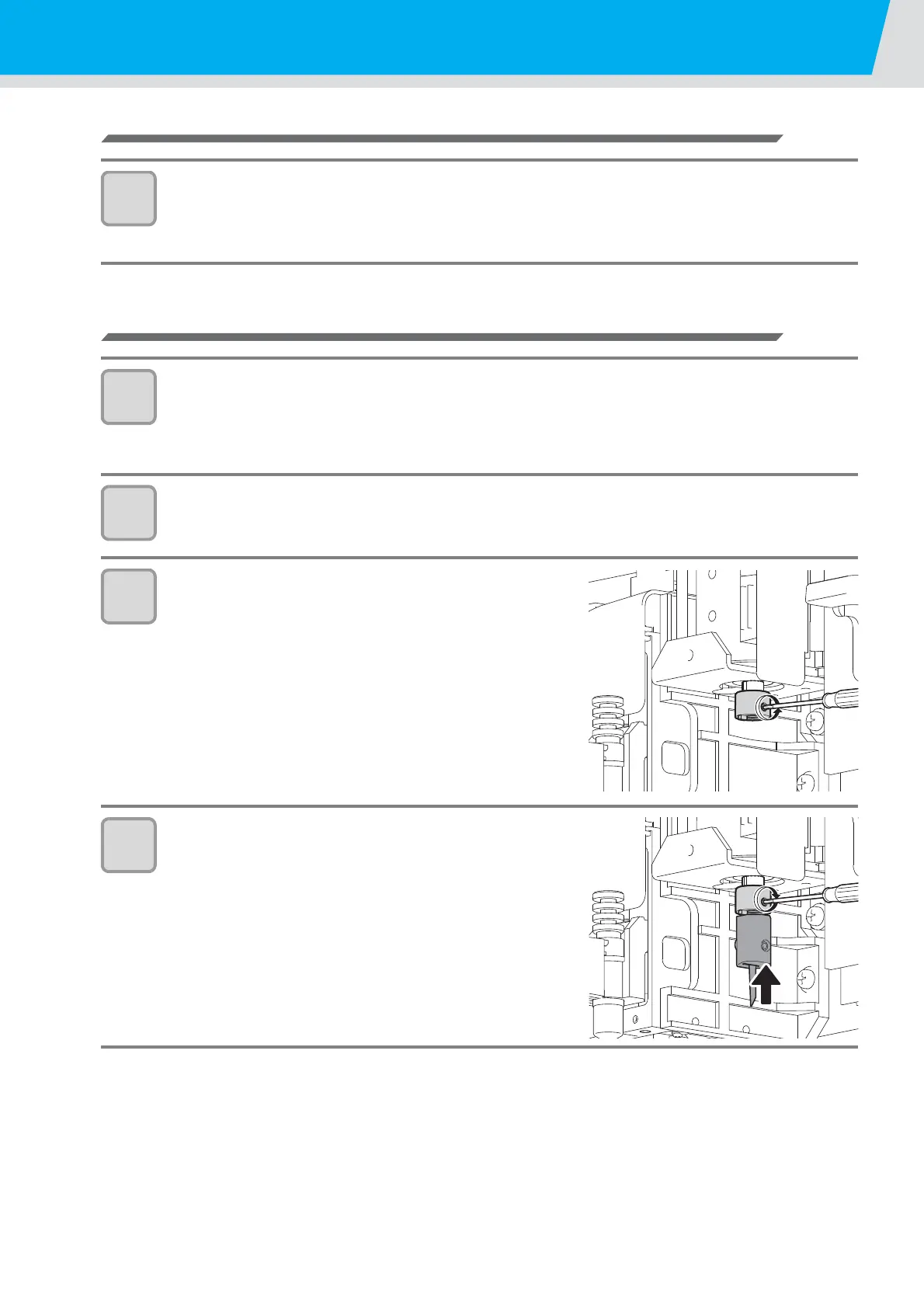

Mounting the Reciprocating Cutter Holder
1
Press the jog keys in local mode to move the head
forward.
2
Turn off the unit power.
3
Loosen the Unit B fixing screw.
• Turn the fixing screw counterclockwise to loosen it.
• The fixing screw is 4 mm long. It will fall out of Unit B if it is
loosened too much.
4
Tighten the fixing screw.
• Push the cutter holder firmly upwards to eliminate any
clearance between the lug on Unit B and the groove in the
reciprocating holder, and then tighten the fixing screw.
• Firmly fasten the cutter holder. If the holder is loose, the
cutter may become unstable during cutting and reduce the
cutting accuracy.
To Next Page
