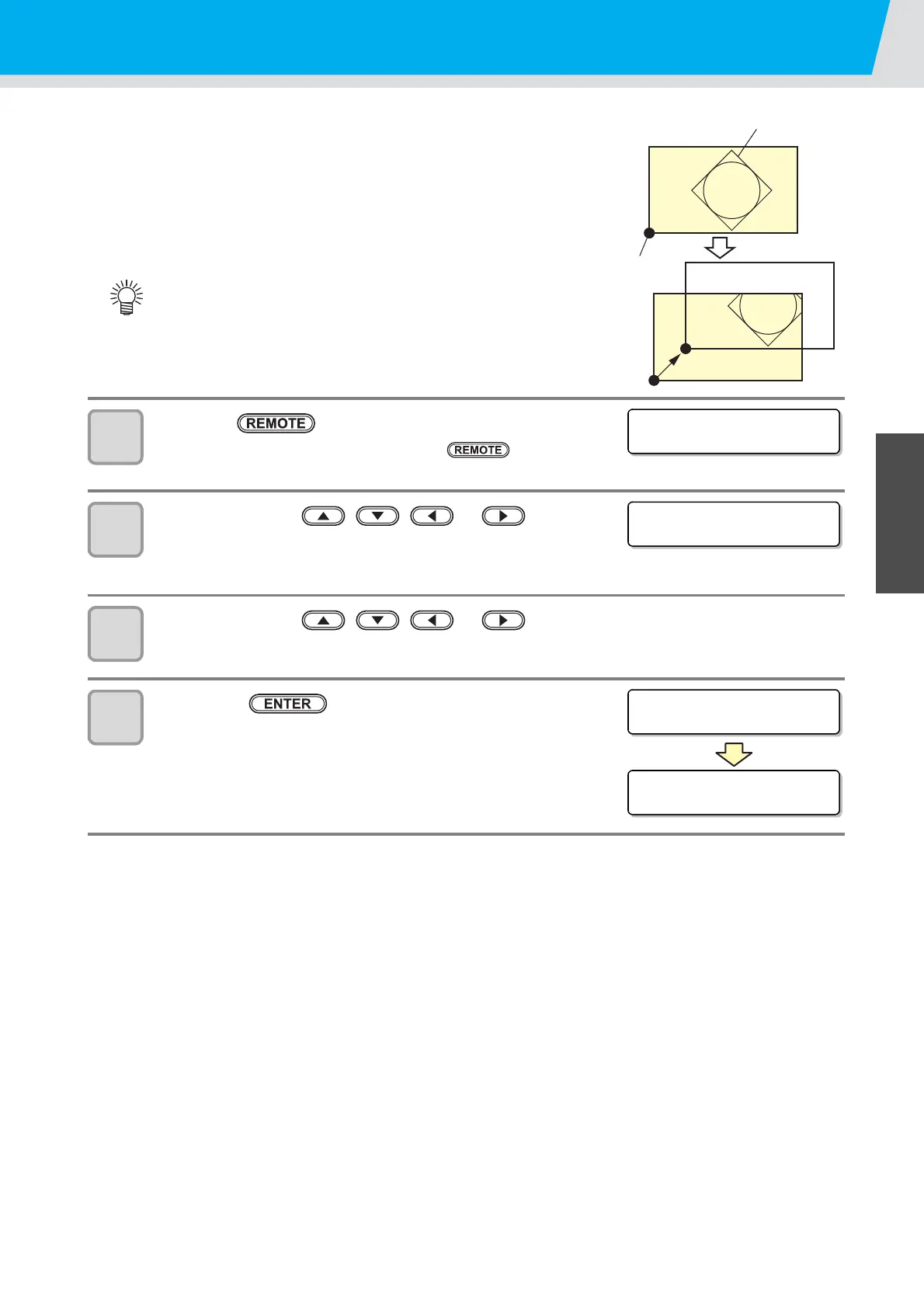

Setting the Drawing Origin
The origin is the reference point for drawing, cutting, and grid
cutting. (It is normally set at the lower-left corner of the maximum
effective cutting area.)
The drawing position moves as the origin is moved.
1
Press the key to set to the local mode.
• Confirm in advance that if you press the key to enter the
remote mode, the plotter does not perform cutting (plotting).
2
Press the jog key , , or to enter
the jog mode.
• Press either one of the jog keys, and you can enter the jog mode.
3
Press the jog key , , or to set the origin.
4
Press the
key to decide the origin.
• After displaying the effective cutting for while, the plotter returns to
the local mode.
• The origin is set as coordinate position (0, 0). When
the head is moved by pressing the jog keys, the
screen displays the coordinates with respect to the
origin.
• The Sample Cut function cuts (draws, grid cuts) the
data next to the origin.
Data
Origin
(origin for ploting)
Max. effective
cutting area
(gray area)
<LOCAL>
A:PEN
<OR I G I N SET>PEN mm
X: 0.0 Y: 0.0
<OR I G I N SET>PEN mm
X: 300 . 0 Y: 300 . 0
<LOCAL>
A:PEN
