Moving the Head
The head can be moved to a convenient position to mount the workpiece, make a test cut, or mount a tool.
Two methods are available to move the head.
• Using the head retraction (View) function
• Using the jog keys

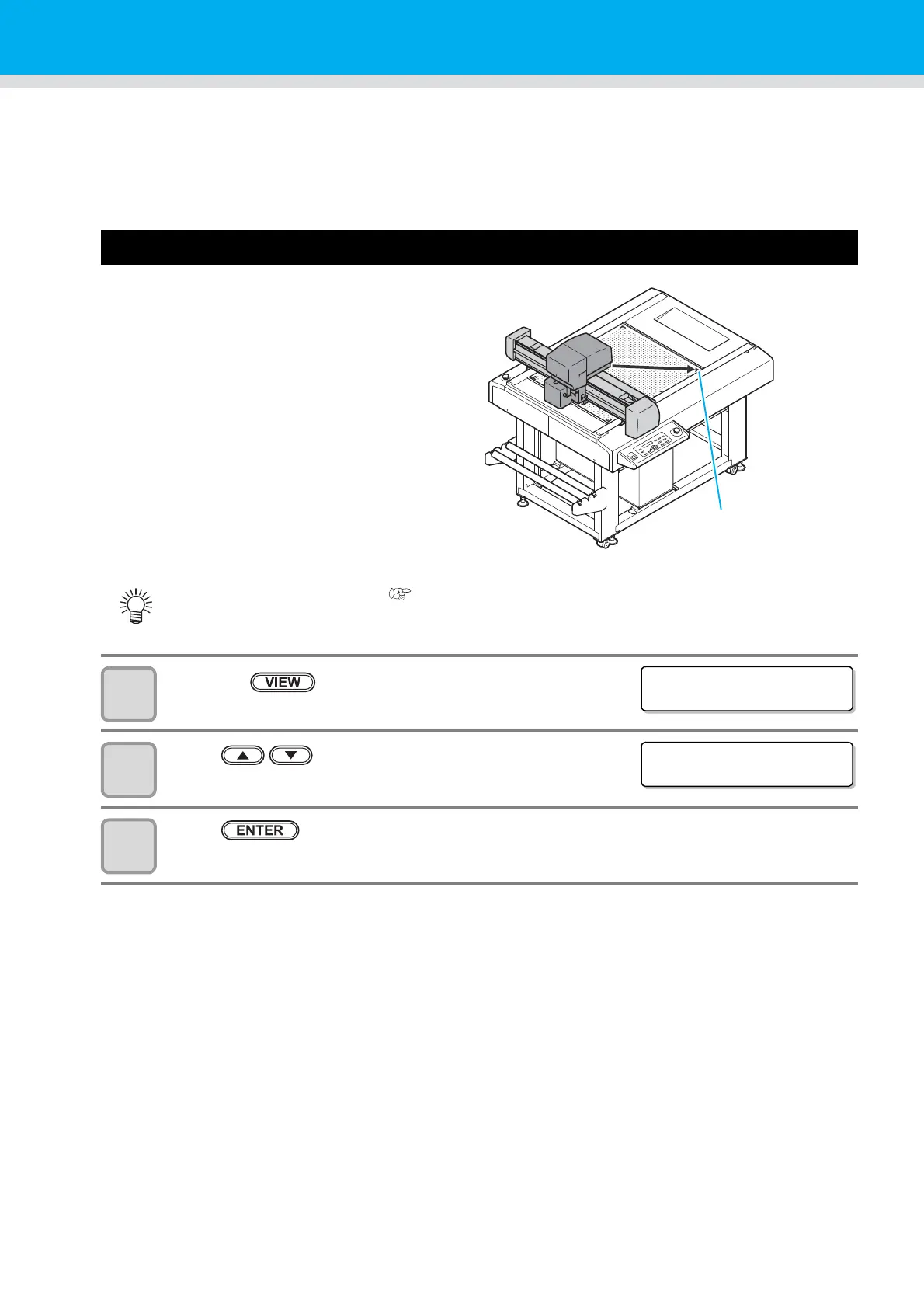

Moving the Head Using the Head Retraction [VIEW] Function
The head can be moved at once to the table each
corner, or the drawing origin.
1
Press the key in LOCAL
2
Press and select the retracted position.
• Set value: LOW-LEFT, LOW-RIGHT, ORIGIN, UP-LEFT, UP-RIGHT
3
Press .
• The head retracts to the designated position.
• If Automatic Head Retraction P.1-24 is set, the head automatically returns to the retraction
position after cutting (drawing) is complete, so that the View function is not required.
Convenient for
mounting a workpiece.
Convenient for mounting a tool.
<V I EW>
V I EW POS : OR I G I N
<V I EW>
V I EW POS : LOW- LEF T
