MIMAKI CFL-605RT - Cutter Holder Mounting and Replacement

1-15
1
Setup
5
6
5
6
Mounting Tools
Replacing the Tangential Cutter
1
"Mounting the Tangential Cutter Blade"Follow steps 1
- 3 to replace the blade.
2
Adjust the amount that the blade protrudes.
• For details about the adjustment, see P.2-14.

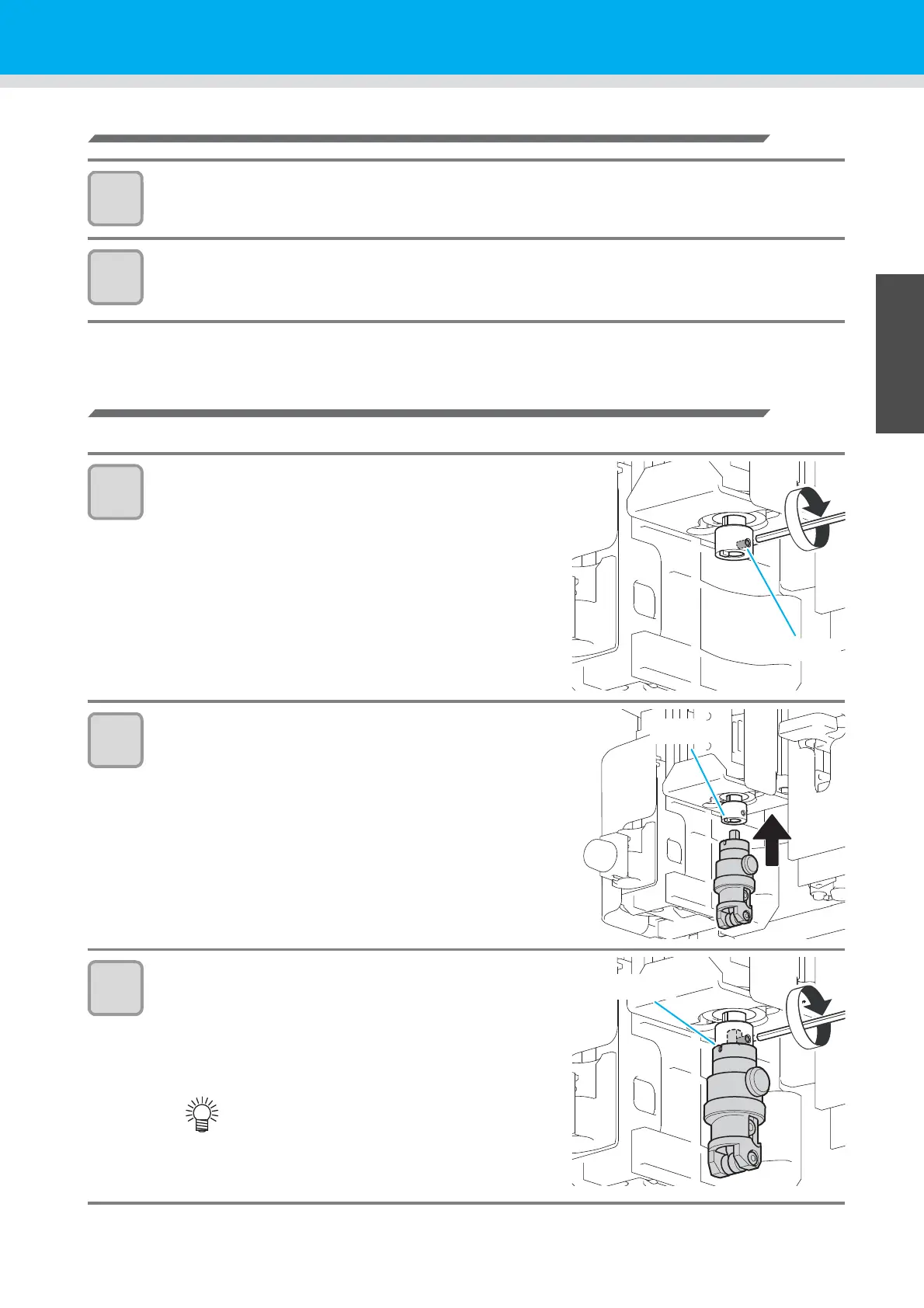

Mounting the Cutter Holder
After mounting the cutter, mount the cutter holder into the unit.
1
Loosen the stopper screw.
• With the supplied hexagon wrench (2.0mm), fasten
temporarily the supplied stopper screw in the holder.
2
Insert the Unit B pin into the groove in the cutter
holder.
3
Use the 2.0 mm hexagonal wrench supplied to
tighten the stopper screw.
• Firmly fasten the cutter holder.
• Correct quality may not be achieved if the stopper screw is
not fully tightened.
• Make sure to tighten with reliably butting
the edge face of the cutter holder.
Stopper screw
Pin
Butting
