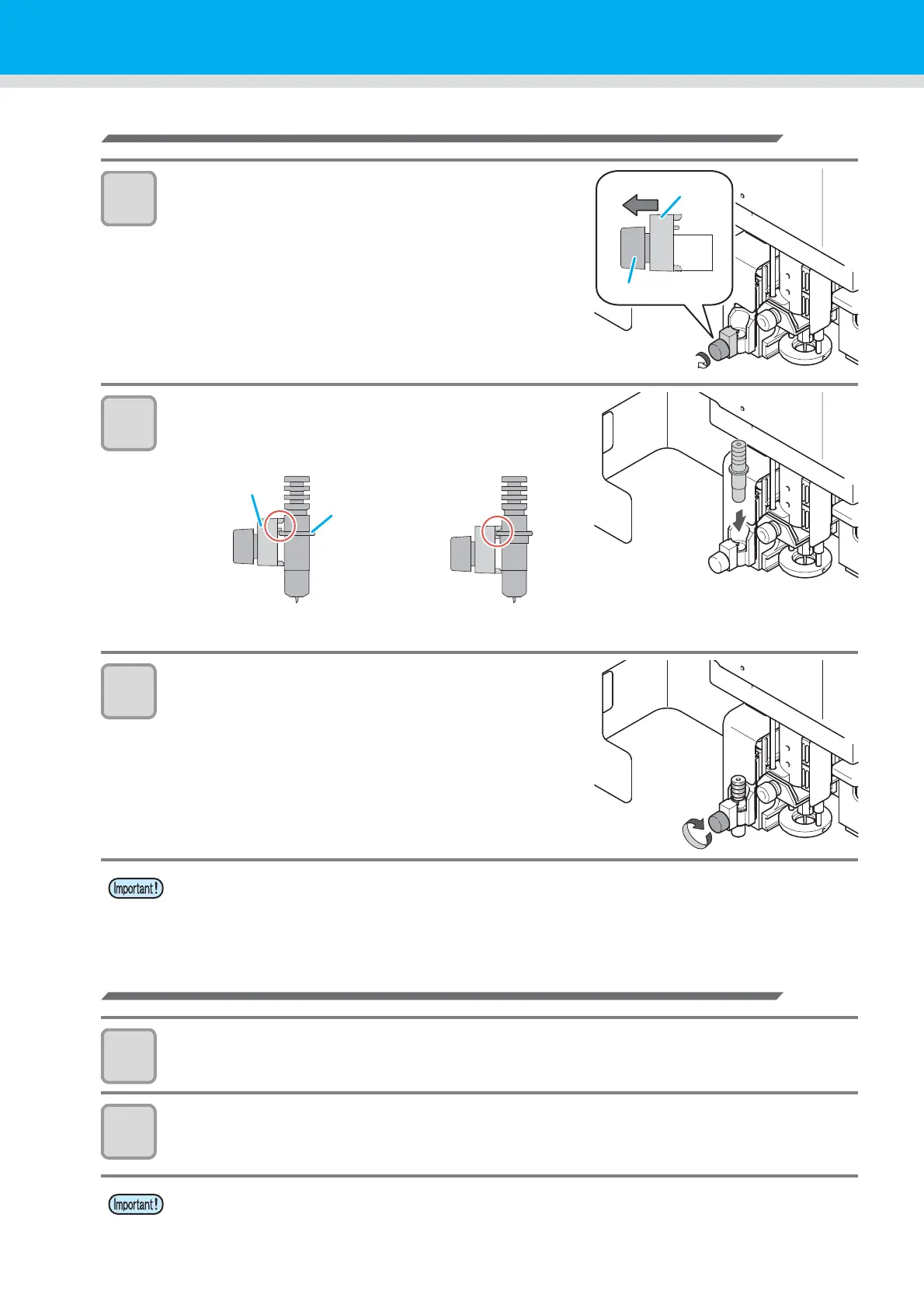

How to install the cutter holder
1
Rotate the knob to loosen the holder presser.
2
Insert the cutter holder into the tool holder.
• Push the brim of the cutter holder against the tool holder.
• Press the brim of the cutter holder with the l holder presser.
3
Fix the cutter holder.
• Turn the knob of the tool holder clockwise, and surely fix it.
Replacing the Swivel Blade
1
"Mounting the Pen or Swivel Blade"Follow steps 1 - 3 to replace the blade.
2
Adjust the amount that the blade protrudes.
• For details about the adjustment, see P.2-14.
• Fix the cutter holder firmly. If not, accurate and high-quality cutting (plotting) will not be achieved.
• Install the cutter holder to the tool holder of the carriage.Be sure to insert the cutter holder all the way
in the tool holder.
• The dedicated cutter blade is built in the eccentric cutter holder C (white). It cannot be removed.
Holder presser
Brim
Attachment of Swivel
Cutter for cutting board
Attachment of Cutter holder C
with edge (white) for Felt Mat
