MIMAKI CFL-605RT - Adjusting Cutter Eccentricity

6-4

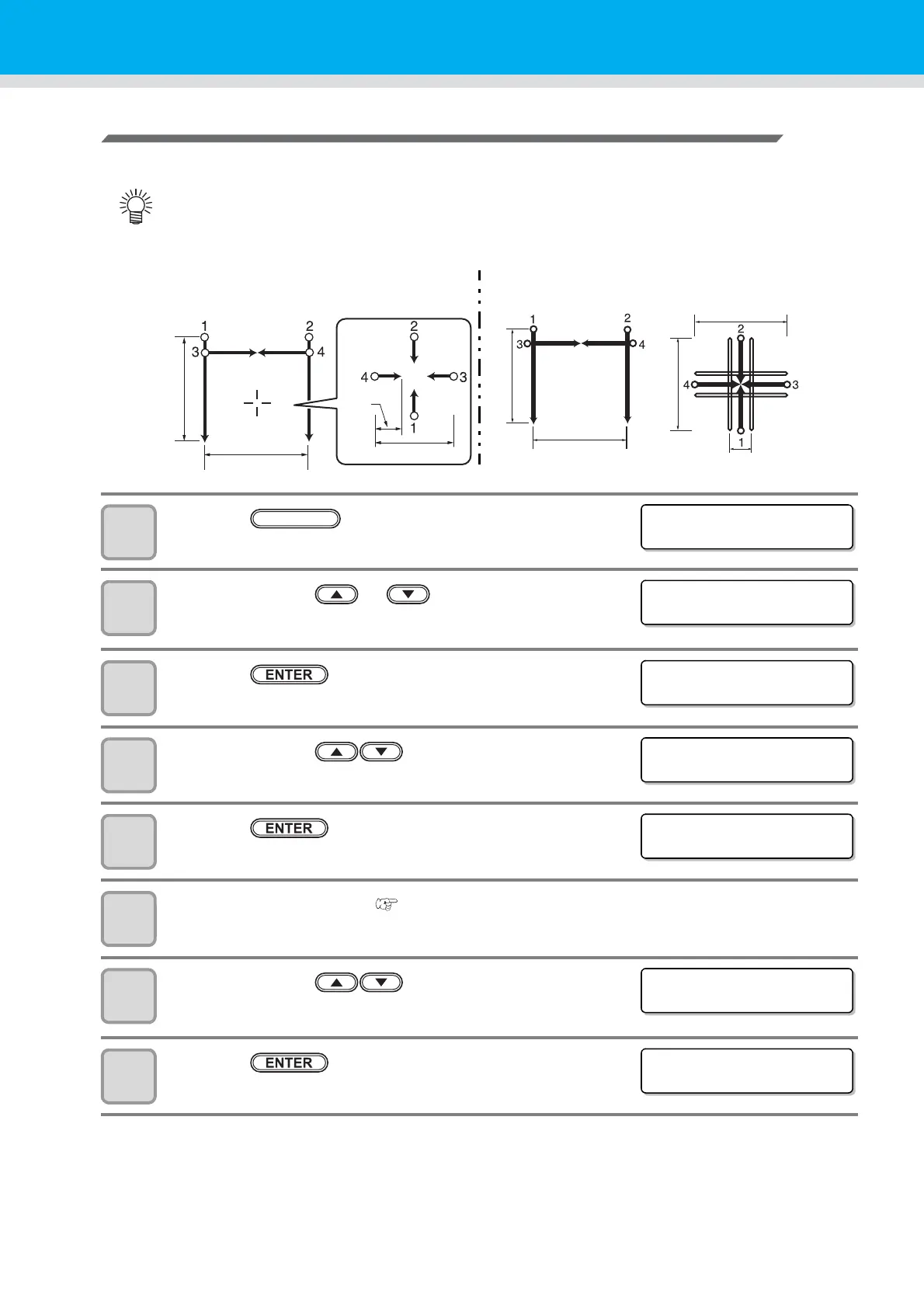

Adjusting Eccentricity
Adjust the eccentricity by checking the test pattern drawn by the cutter or roller.
1
Press the key in the local mode.
2
Press the jog key or to select [TOOL
ADJUST] .
3
Press the key.
4
Press the jog key to select tool.
• Set value: REC.CUTTER1~2, CUTTER, ROLLER1~3
5
Press the key.
6
Attach the selected tool ( P.2-22).
7
Press the jog key to select [CENTER
ADJUST].
8
Press the key.
• First, mount a pen in Unit A.
20mm
20mm
Normal patternA Normal patternB
20mm
20mm
Normal patternA Normal patternB
Test pattern drawn by the cutter Test pattern drawn by the roller
3mm
2mm
1mm
20mm
20mm
<FUNCT ION>


SET UP [ ENT ]
FUNCTION
<FUNCT ION>


TOOL ADJUST [ ENT ]
<TOOL SELTECT>
TOOL : B : REC . CUTTER1
<TOOL SELTECT>
TOOL : B : REC . CUTTER1
<FUNCT ION>
MARK DETECT [ ENT ]
<REC . CUTTER1 ADJ >


CENTER ADJUST [ ENT ]
<CENTER ADJUST>


CENTER A : 0 . 0 0mm
