Basic Operations
5
5
6

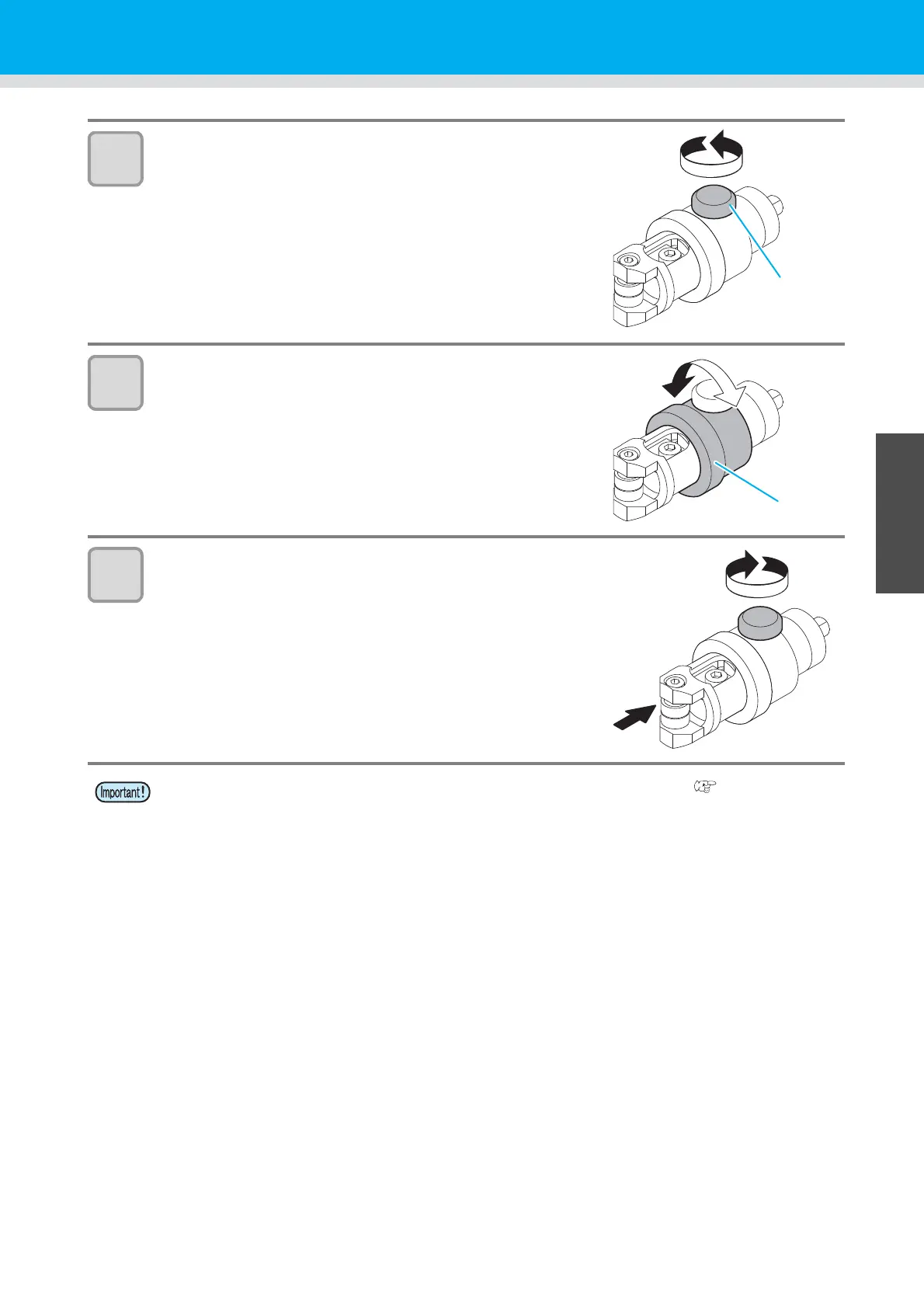

Adjusting the Blade to Match the Workpiece
1
Loosen the dial stopper.
• Turn the dial stopper counterclockwise to loosen it.
2
Turn the dial.
• Turn in the direction of the arrow.
Turning it one revolution extends the blade 1 mm.
• As a rule of thumb, the blade tip should protrude by
(workpiece thickness + 0.2 mm).
3
Tighten the dial stopper while pushing the dial in
the direction of the arrow.
• The dial has some play. To eliminate discrepancies in the
amount that the blade protrudes, push the dial in the direction
of the arrow while tightening the dial stopper.
• When mounting a trial cutter in Unit B, select the " Cutter” in the Tool Select. ( P.2-11)
If use with the setting other than " Cutter”, it will damage the cutter holder and this equipment.
