Minebea CSD-912B - Wiring of Power Sources

2.3. Power supply connection
12
Wiring
2
2.3. Wiring of power sources

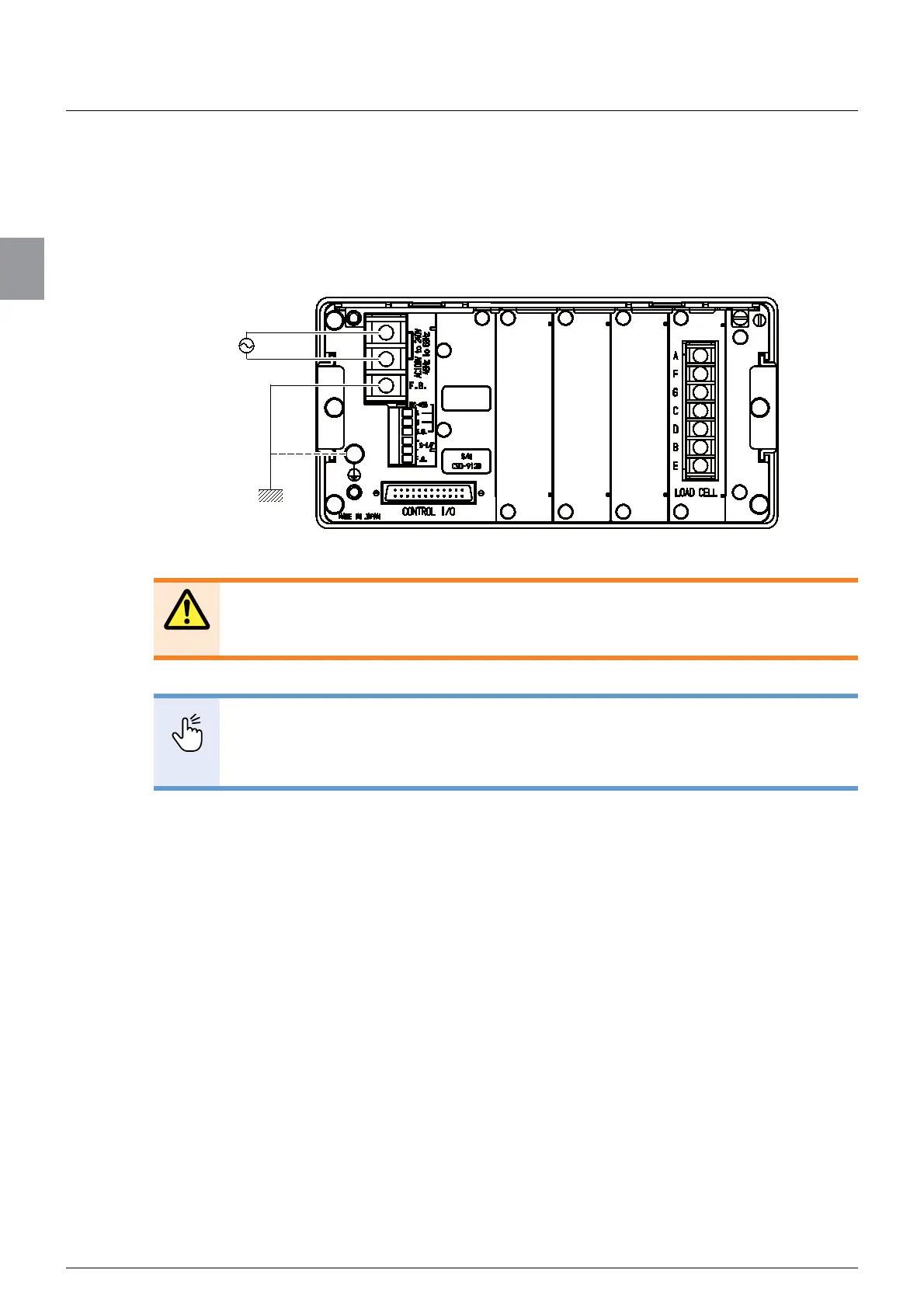

Connect the power cable with the power supply terminal of the rear panel to ground CSD-
912B.
Caution
- Properly perform wiring of the power cable and grounding, and use CSD-912B
ZLWKLQWKHVSHFL¿HGSRZHUFRQGLWLRQVĺ³*HQHUDOVSHFL¿FDWLRQ´
POINT
- Grounding should be D-class single grounding. Otherwise, noise generated by
another device may cause unforeseen malfunctions of CSD-912B.
7RFRQIRUP&6'%FRPSDWLEOHZLWK&(PDUNDSSOLFDEOHVWDQGDUGDQG-,6
standard, perform single grounding with a protective earth terminal.
D-class single
grounding
AC100 V to AC240 V
(Allowable range
$&9WR$&9
