USER MANUAL
MINISENTRY-2
107911_D User manual MINISENTRY-2_En.docx
MIRION TECHNOLOGIES (Canberra)S.A.S., BP249, ZI de Vauzelles, 37602
Loches Cedex
145 / 170

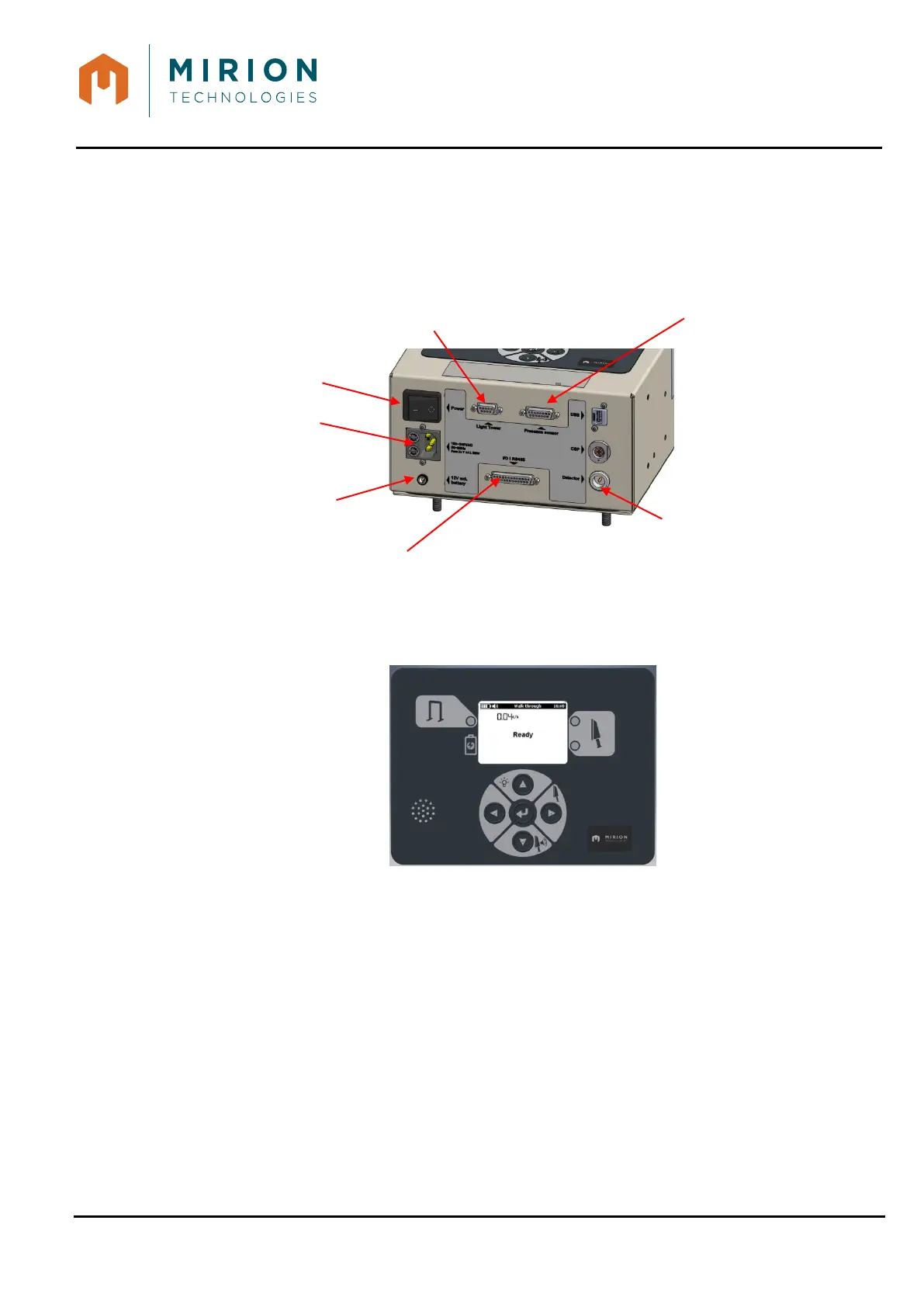

3. Connect cables:
Presence sensor
Portal Probe
Electrical main or 12V external power supply (Option)
Red / green Light tower (Option)
I/O / RS485 (option)
4. Power up the unit and go to the start-up screen.
Upon powering up the MiniSentry, the above start-up screen will appear after a few
seconds.
Presence
sensor
connector
Electrical Mains connector
I/O / RS485 connector (option)
ON / OFF Switch
Probe connector
12V external power supply
connector (option)
Red / green light tower connector (Option)
