30.7 MAIN POWER SUPPLY REMOVAL/INSTALLATION
30.7.1 Tools:
- PZ1 Pozidriv® screwdriver
- 8 mm wrench
- Thread lock (Loctite)
30.7.2 Preliminary operations:
- Remove rear cover § Erreur ! Source du renvoi introuvable.
30.7.3 Removal

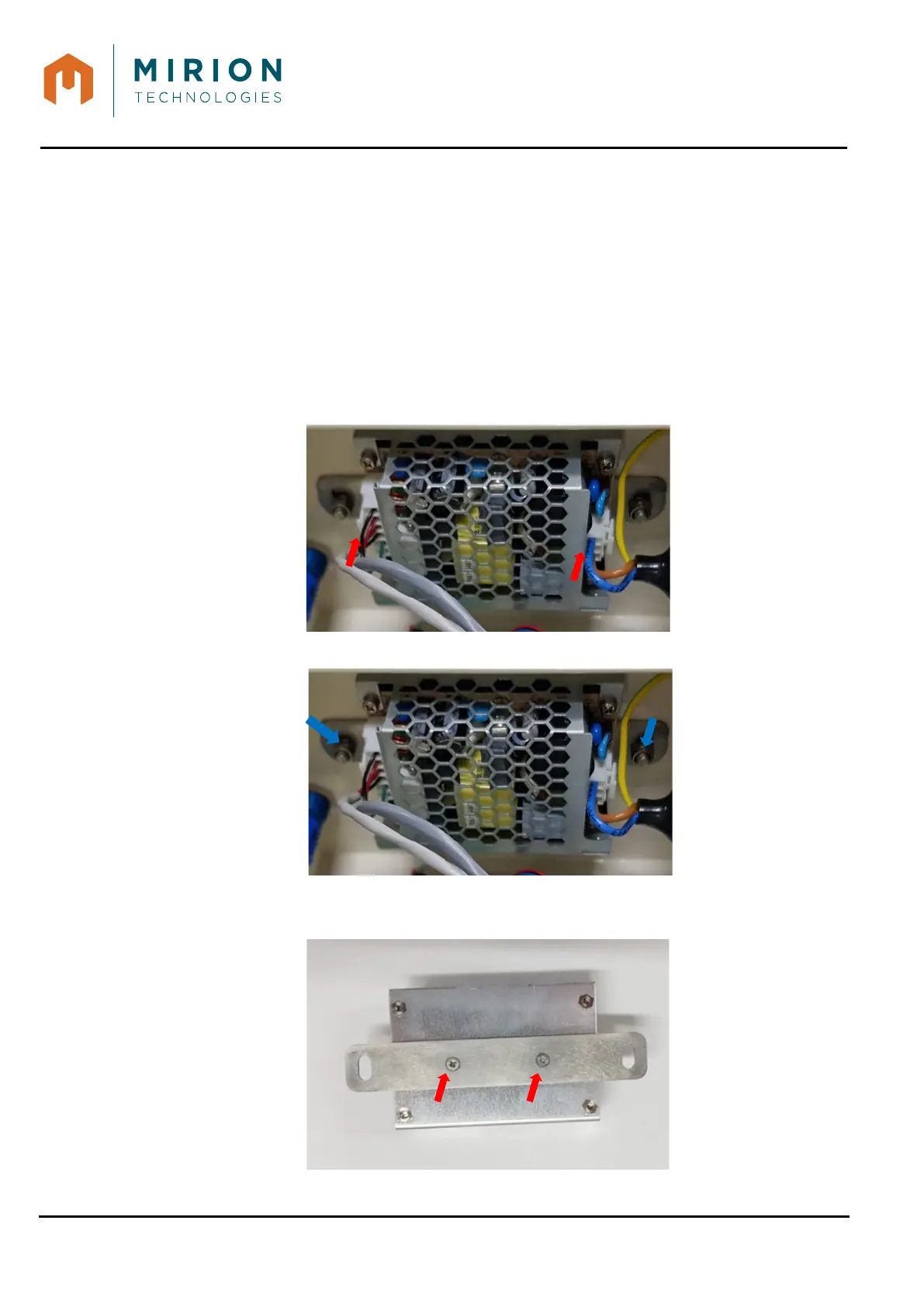

1. Remove both wires from the power supply (Red Arrows)
2. Remove the 2 bolt using the 8mm wrench (blue arrows)
3. Extract the power supply
4. Remove the 2 bolts using the PZ1 screwdriver
5. Remove metal plate from power supply
