8.2 VEHICLE OR EXTENDED PASSAGE CONFIGURATION (OPTIONAL)
The MiniSentry vehicle or extended passage configuration (Figure 2) is equipped with:
• Primary detector post with MiniSentry Control unit
• Secondary detector post
• End caps (x2) for vehicle configuration needs, extended passage and shipping
• Red / green light tower (Optional)
• Power cable
• Nylon case and foam pieces needed for future shipping
• Footplate for each post with mounting hardware (x2)
• Vehicle baseplates and bolts for each post
• 2.5 m (8.20 ft) rubber spacers
• 2.7 m (8.86 ft) cable set between the base of each detector post

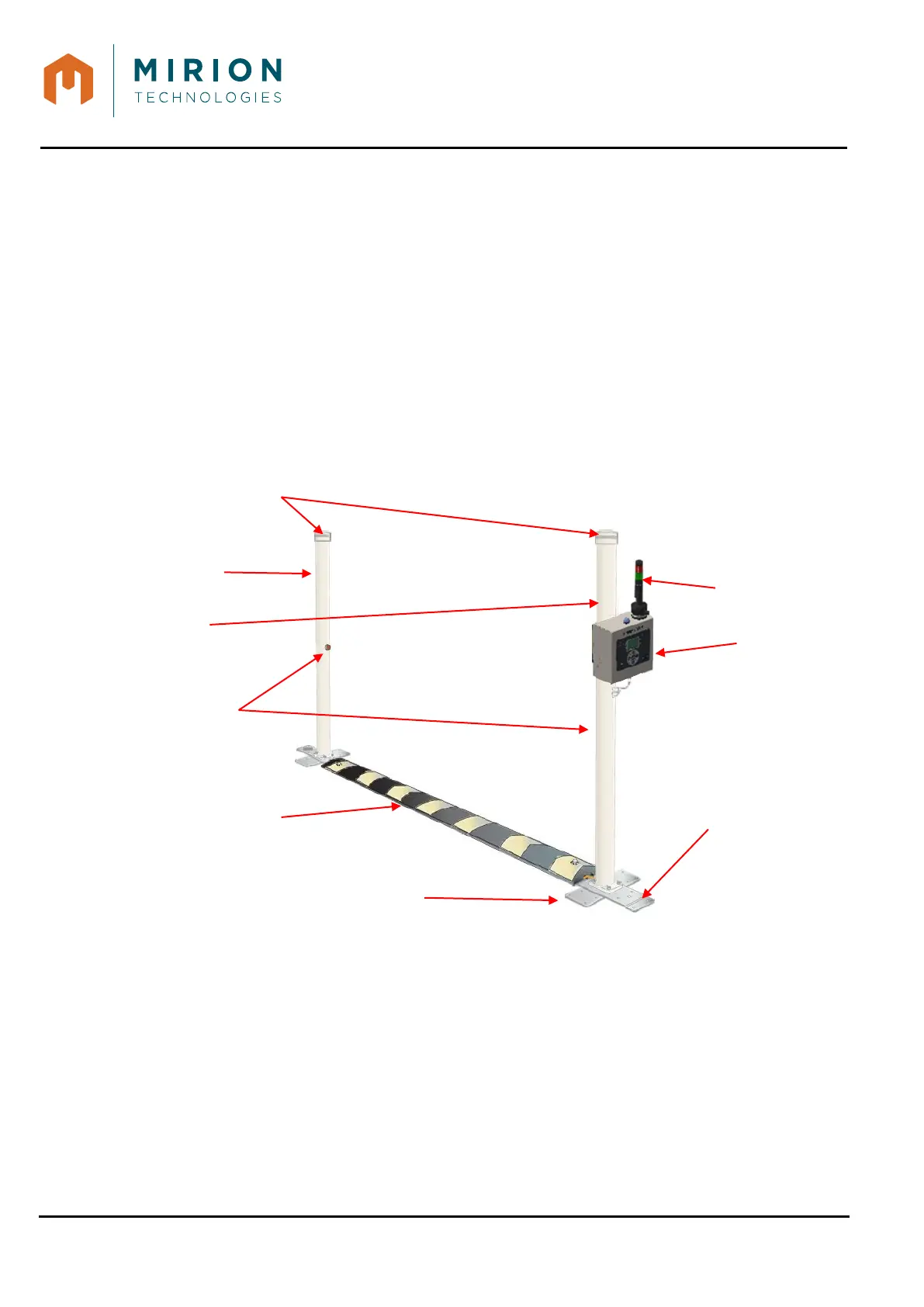

Figure 2 Vehicle configuration
MiniSentry
Control unit
End caps
Footplates
Primary
detector post
2.5m (8.20 ft) Rubber spacers
Presence sensors
Vehicle baseplates
Secondary
detector post
Red / green light
tower (Optional)
