USER MANUAL

MINISENTRY-2

107911_D User manual MINISENTRY-2_En.docx

MIRION TECHNOLOGIES (Canberra)S.A.S., BP249, ZI de Vauzelles, 37602

Loches Cedex

167 / 170

30.11 USB CONNECTOR REMOVAL/INSTALLATION

30.11.1 Tools:

- Screwdriver

30.11.2 Preliminary operations:

- Remove rear cover § Erreur ! Source du renvoi introuvable.

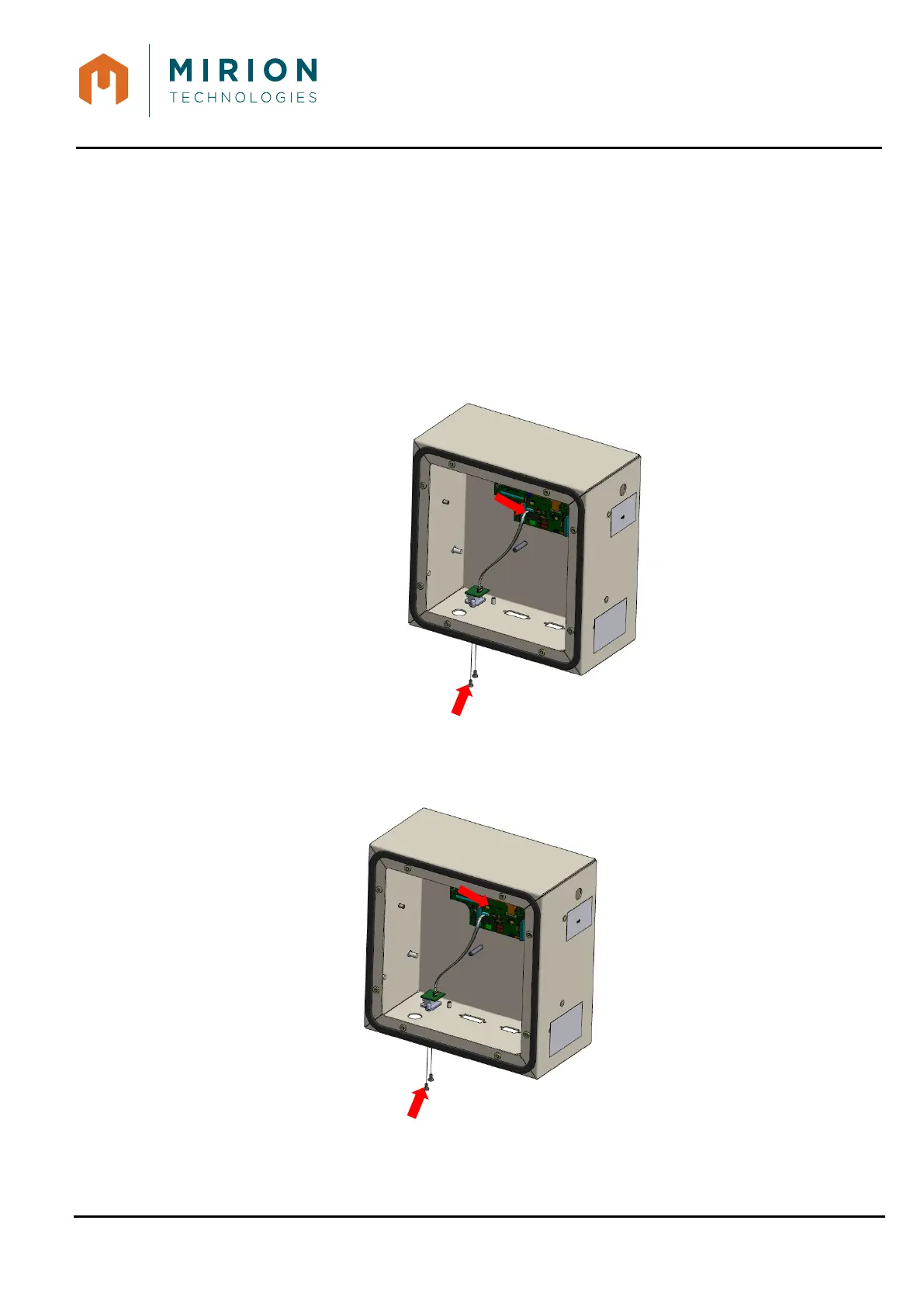

30.11.3 Removal

1. Disconnect the cable from mother board and unscrew the two screws form outside of the

enclosure

2. Remove the USB assembly.

30.11.4 Installation

1. Install the USB assembly and screw the two screws form outside of the enclosure

2. Connect the cable on the mother board

3. Install rear cover § Erreur ! Source du renvoi introuvable..
