USER MANUAL
MINISENTRY-2
107911_D User manual MINISENTRY-2_En.docx
MIRION TECHNOLOGIES (Canberra)S.A.S., BP249, ZI de Vauzelles, 37602

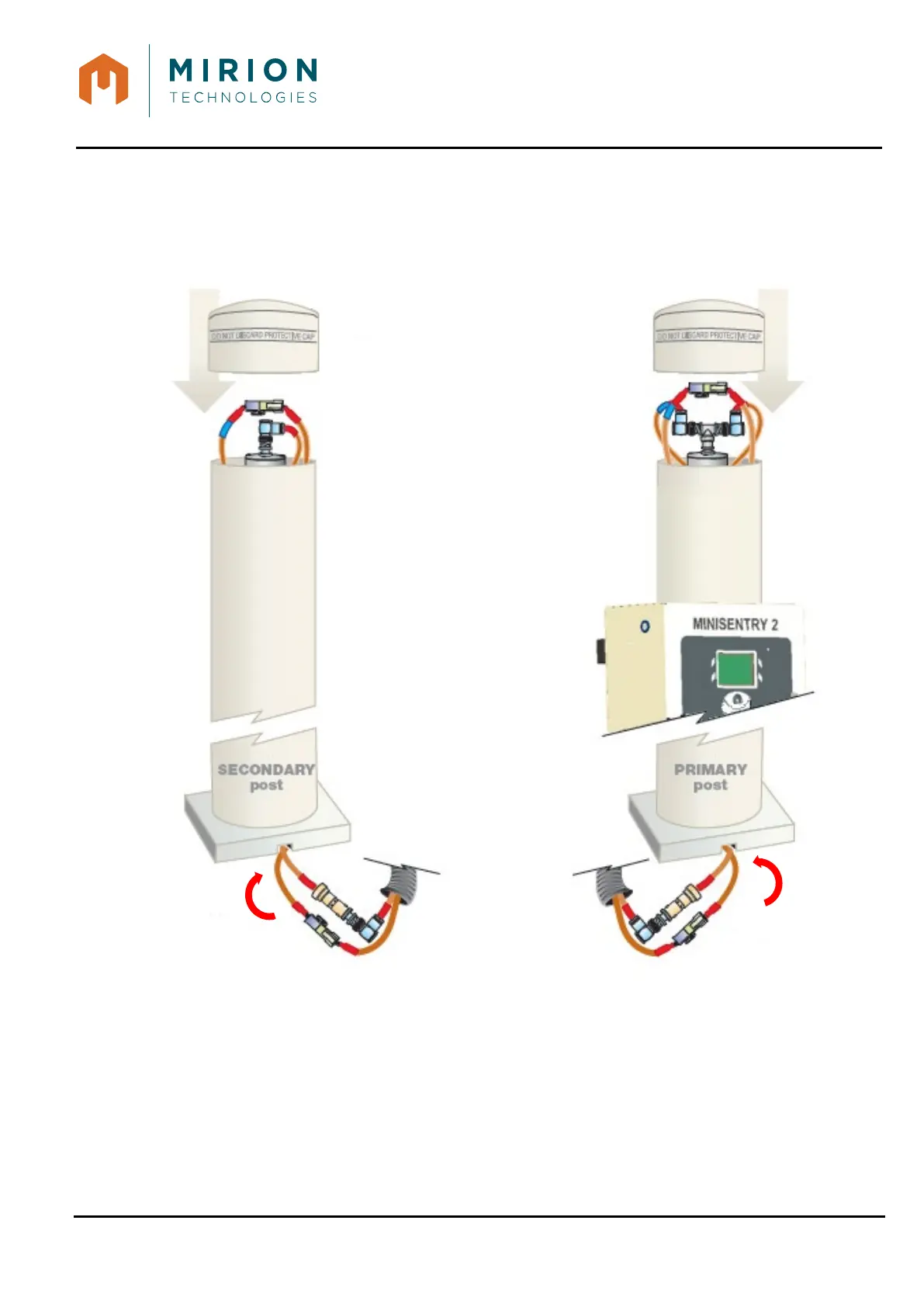

26.3 ASSEMBLY INSTRUCTION
1. Make the connections as diagrammed.
2. Push down the end caps.
3. Once the connections are complete, go to step 4 to attach the foot plates.
Tuck connections inside
the detector post.
Tuck connections
inside the detector
To Next Page
