30.9.4 Installation

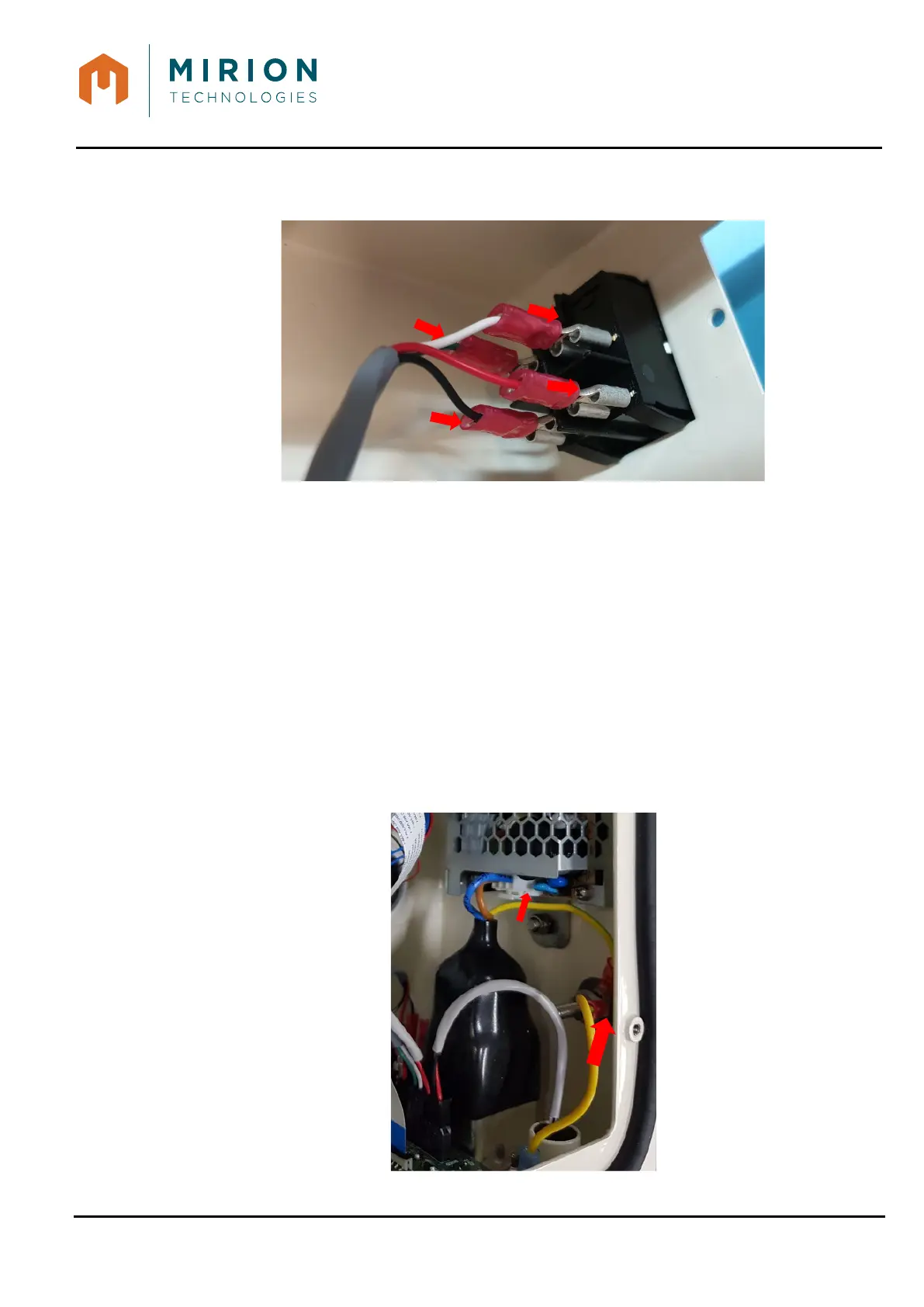

1. Install the switch, push it and connect the 4 wires as marked before.
2. Install rear cover § Erreur ! Source du renvoi introuvable..
30.10 MAIN POWER SUPPLY CONNECTOR REMOVAL/INSTALLATION
30.10.1 Tools:
- PH1 Phillips® screwdriver
- 8 mm wrench
- Thread lock (Loctite)
30.10.2 Preliminary operations:
- Remove rear cover § Erreur ! Source du renvoi introuvable.
30.10.3 Removal
1. Disconnect wire from power supply
2. Remove nuts on threaded rod and remove the yellow/green wire from it.
