USE MANUAL
MINISENTRY-2
107911_D User manual MINISENTRY-2_En.docx
MIRION TECHNOLOGIES (Canberra) S.A.S, BP249, ZI de Vauzelles, 3760

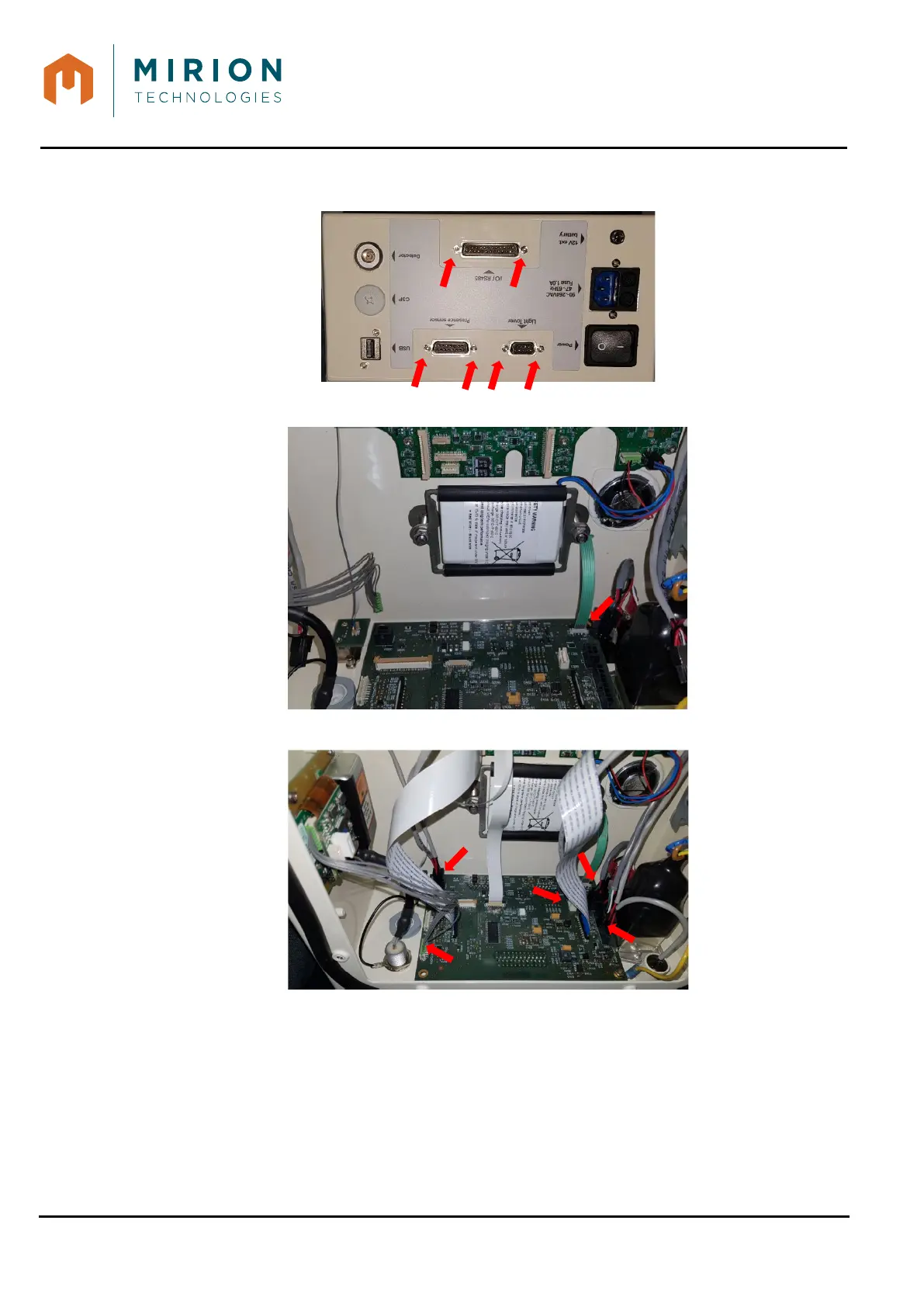

2. Screw from the external bottom of the monitor, the 6 screws (Red arrows) using the 5 mm
wrench.
3. Connect the flex wire (Red arrows) of the front panel lexan
4. Connect the 5 cables (red arrows) from the interface board
