PROTOCOL-SPECIFIC INFORMATION
147
9

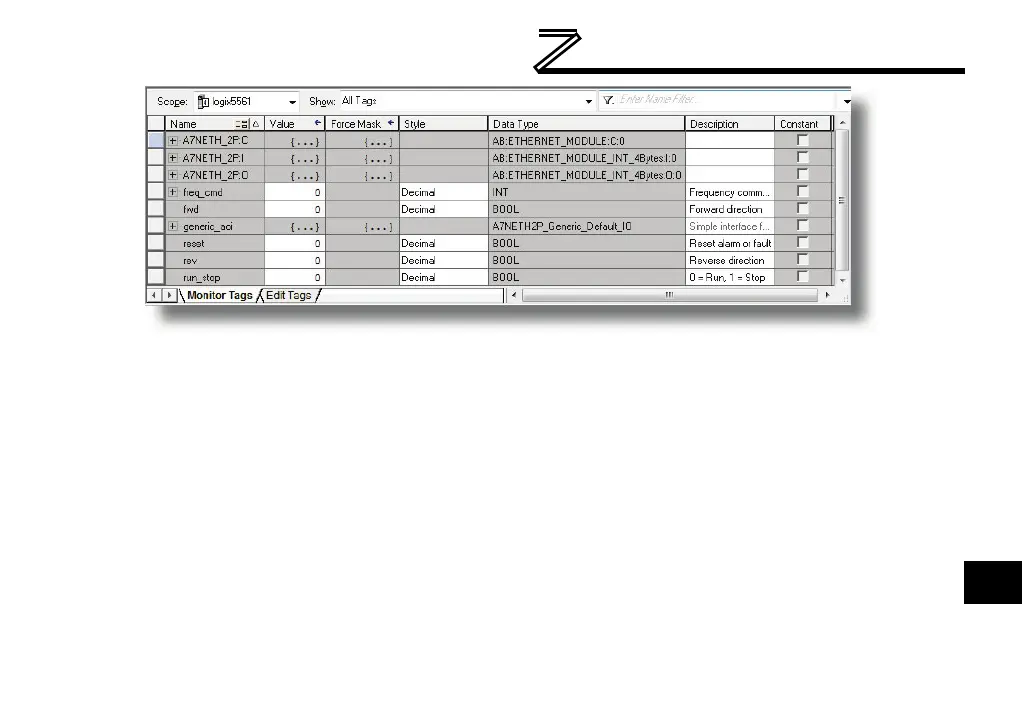

Figure 47: Create Generic Default AOI Tags
5) Double click “MainRoutine” under Tasks…MainTask…MainProgram in the controller organizer view.
6) Right click on the first ladder logic rung in the MainRoutine window and select “Add Ladder
Element...”
7) The “Add Ladder Element” window appears.
8) Select the generic default I/O add-on instruction in the Add-On folder. Refer to Figure 48.
9) Click OK.
10) Edit the add-on instruction according to Figure 49.
11) The program is now complete.
