6.2 Monitor Tab
6.2.1 Information Window
Figure 8: Monitor Tab Information Window

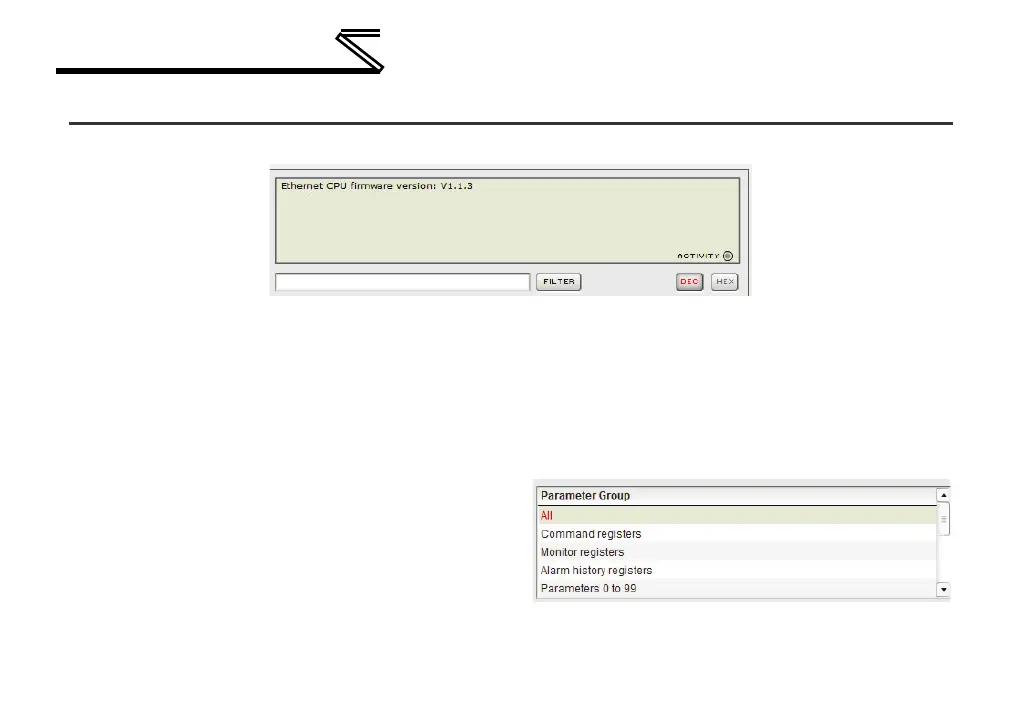

Figure 8 shows the Information Window, which displays messages regarding the status of the interface
card or web browser session. There is also an “ACTIVITY” indicator which blinks periodically to show
the status of data communication between the web browser and the interface card. If you do not observe
the activity indicator blink at all for several seconds or more, it is possible that the web browser may
have lost contact to the web server. To reestablish communications, “refresh” your web browser.
6.2.2 Parameter Group Selection List
The Parameter Group Selection List is shown in
Figure 9. Individual groups can be selected by
clicking on the group name. Multiple groups may
also be selected by holding down the CTRL key
while clicking on the group names, or a range of
groups can be selected by first selecting the starting
Figure 9: Parameter Group Selection List

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
