PROTOCOL-SPECIFIC INFORMATION
129
9

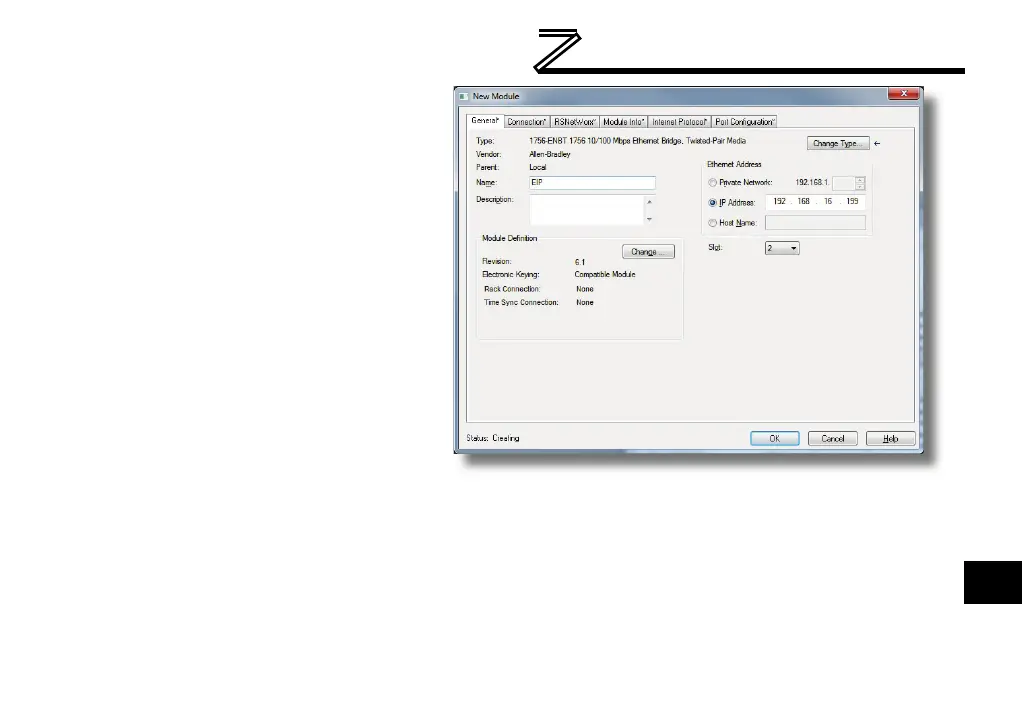

7) Assign the Ethernet module a name
(we will use “EIP”) and an IP address,
deselect “Open Module Properties”,
and click OK.
8) Assign the Ethernet module a name
(we will use “EIP”) and an IP address,
deselect “Open Module Properties”,
and click OK.
9) Download the configuration.
10) Switch to online mode. Right click on
the 1756-ENBT module in the I/O
Configuration and choose
“Properties”.
11) Select the Internet Protocol tab from
the Module Properties dialog box and
confirm that the IP Settings are
configured correctly.
9.2.11 ControlLogix Example: EDS Add-On Profile (AOP)
This section will demonstrate how to setup and use an EtherNet/IP I/O connection via EDS Add-On
Profile. This example only applies to RSLogix5000 V20 (and later) that support EDS Add-On Profile.
Figure 31: Identifying the New Module

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
