Mitsubishi 700 Series User Manual

PROTOCOL-SPECIFIC INFORMATION
153
9
9.2.13 ControlLogix Example: Read Registers
This example program will show how to continuously read a block of registers from the inverter with a
single MSG instruction. Only one read request is outstanding at any given time.
1) Create new Tags.
a) Double click “Controller Tags” in the
controller organizer view.
b) The “Controller Tags” window appears.
Refer to Figure 55.
c) Select the “Edit Tags” tab at the bottom.
d) Create a new tag by entering
“connection” in the first blank Name
field, and change its Data Type to
“MESSAGE”. This tag will contain configuration information for the MSG instruction.
e) Select the “Monitor Tags” tab. Expand the “connection” tag by clicking on the “+” sign next to
the tag name. Scroll down to the connection.UnconnectedTimeout field and change its value
from the default 30000000 (30s in 1uS increments) to 1000000 (1s). This value determines how
long to wait before timing out and retransmitting a connection request if a connection failure
occurs.
f) Collapse the “connection” tag again by clicking on the “-“ sign next to the tag name.

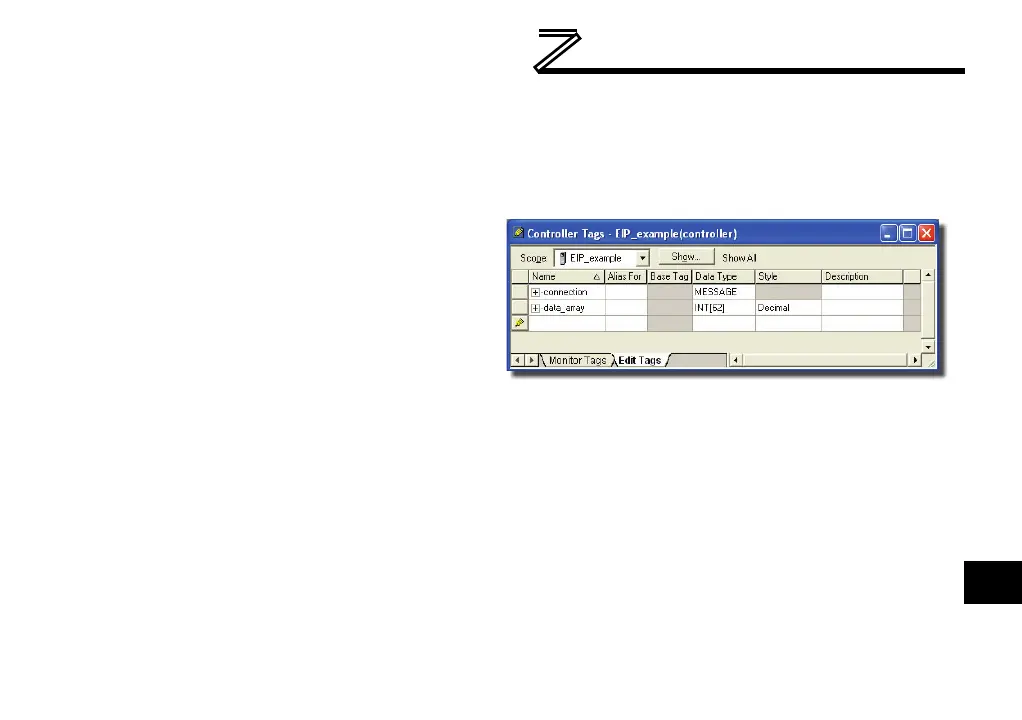

Figure 55: Create New Tags

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
