9.2.14 ControlLogix Example: Reading and Writing Multiple MSG Instructions
Often times, applications may need to both read data from and write data to the inverter. To accomplish
this task, multiple MSG instructions will need to be implemented in the PLC program. The configuration
and execution for implementing multiple MSG instructions is in general identical to that required for
implementing just one MSG instruction. Each MSG instruction will require its own message controller
tag.

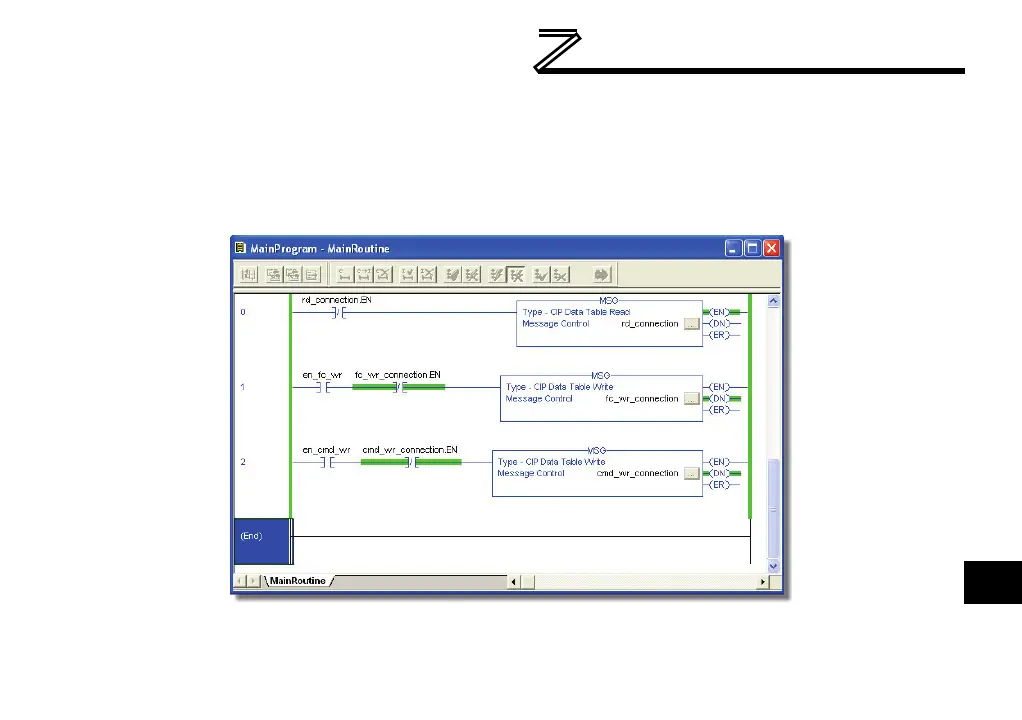

Figure 64: Reading and Writing via MSG Instructions

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
