PROTOCOL-SPECIFIC INFORMATION
5) Configure the MSG instruction.
a) Set the “Read/Write” field to “Read”, “Target Device” field to “PLC5”, “Local/Remote” field to
“Local”, and “Control Block” to “N20:0”.
b) Upon hitting the <ENTER> key while in the “Control Block” entry box, the MSG Properties
dialog box should appear (or it can be opened by clicking on the “Setup Screen” button at the
bottom of the MSG instruction). Refer to Figure 70.

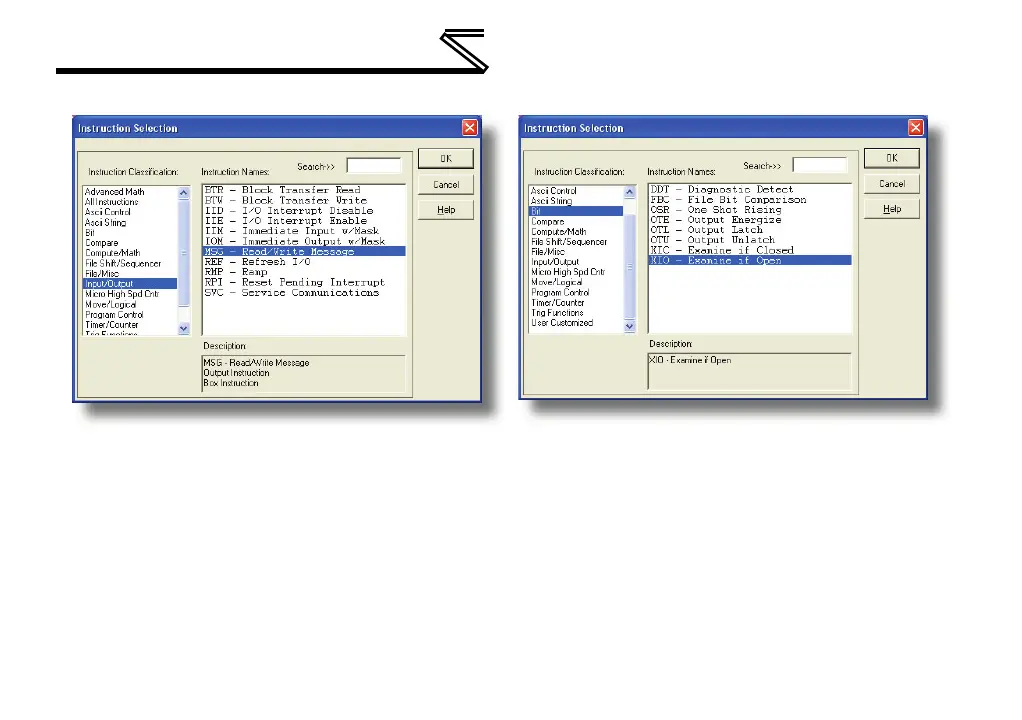

Figure 68: MSG Instruction Selection
Figure 69: XIO Instruction Selection
To Next Page
