Morgana DocuMaster MFC - Service Manual 135
4. Service Procedures - Replace Components - Suction Feed Bin
4

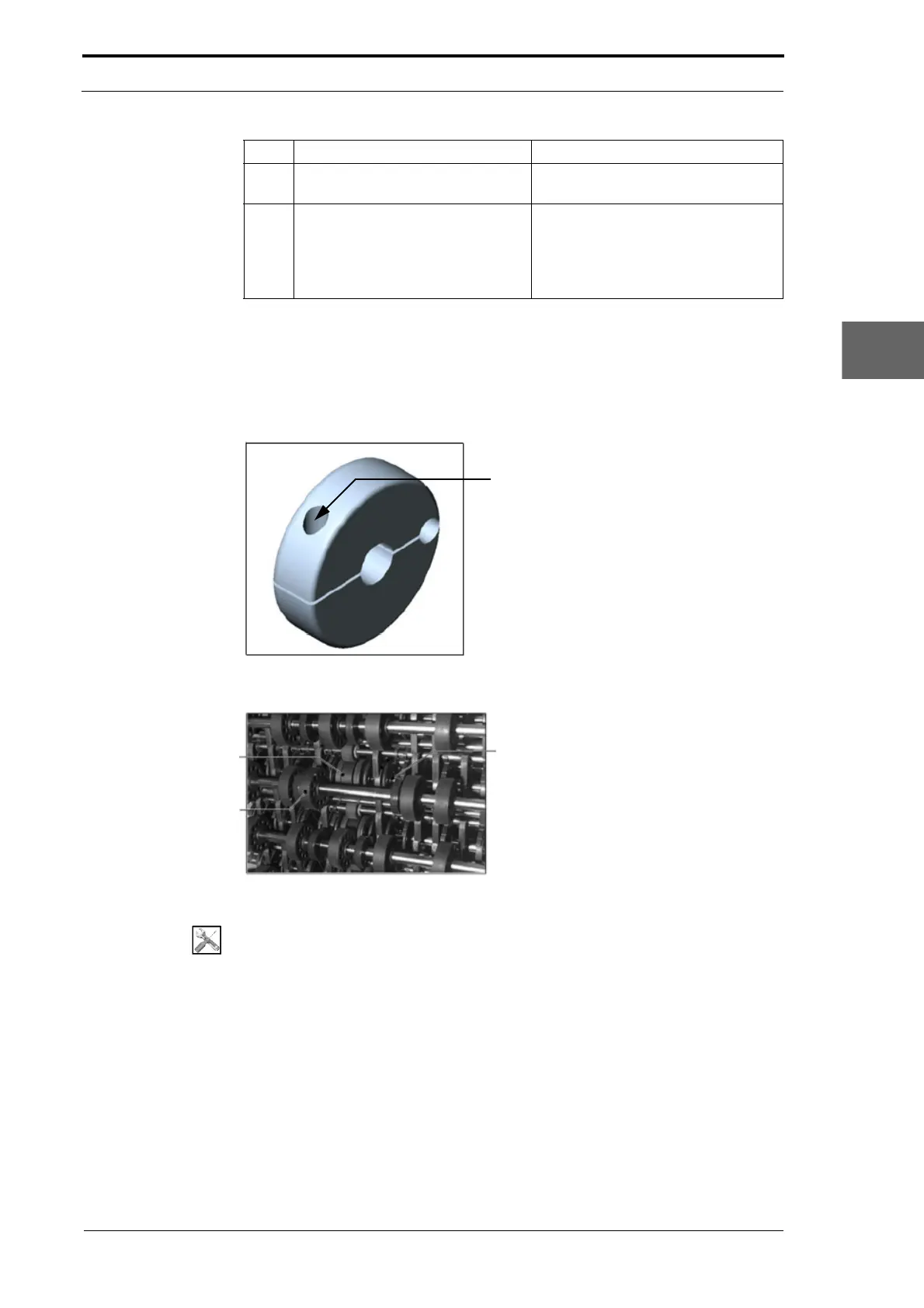

4.8.12 Replace the Inner Conveyor Wheel
To make it easier to replace the inner conveyor wheel a split polypropylene wheel can
be used.
Screw
Figure 4.131 Split Polypropylene Conveyor Wheel
Drive Shaft
Inner Conveyor Wheel
Outer Conveyor
Wheel
Figure 4.132 Access to the Inner Conveyor Wheel
Tools:

• Screwdriver: Pozidriv No. 2
• Pliers: Long Nose
• Scalpel or Sharp Knife.
Before you start:
• Turn off the MFC
• Remove the rear guard (See Section 4.2.7).
8 Install the replacement conveyor
wheels.
9 Do a check that the conveyor
wheels are aligned
and turn
straight.
When the machine has been
reassembled, turn on CLEANING mode
(see Section 4.13.2).
• Adjust the conveyor wheels with
the shaft of a large screwdriver.
Step Action Information
