Morgana DocuMaster MFC - Page 142

Feed Clutch
Assembly
Feed Bin Control
PCB
Drive Gears
Air/Vacuum Valve - Blow
4. Service Procedures - Replace Components - Suction Feed Bin
134 Morgana DocuMaster MFC - Service Manual

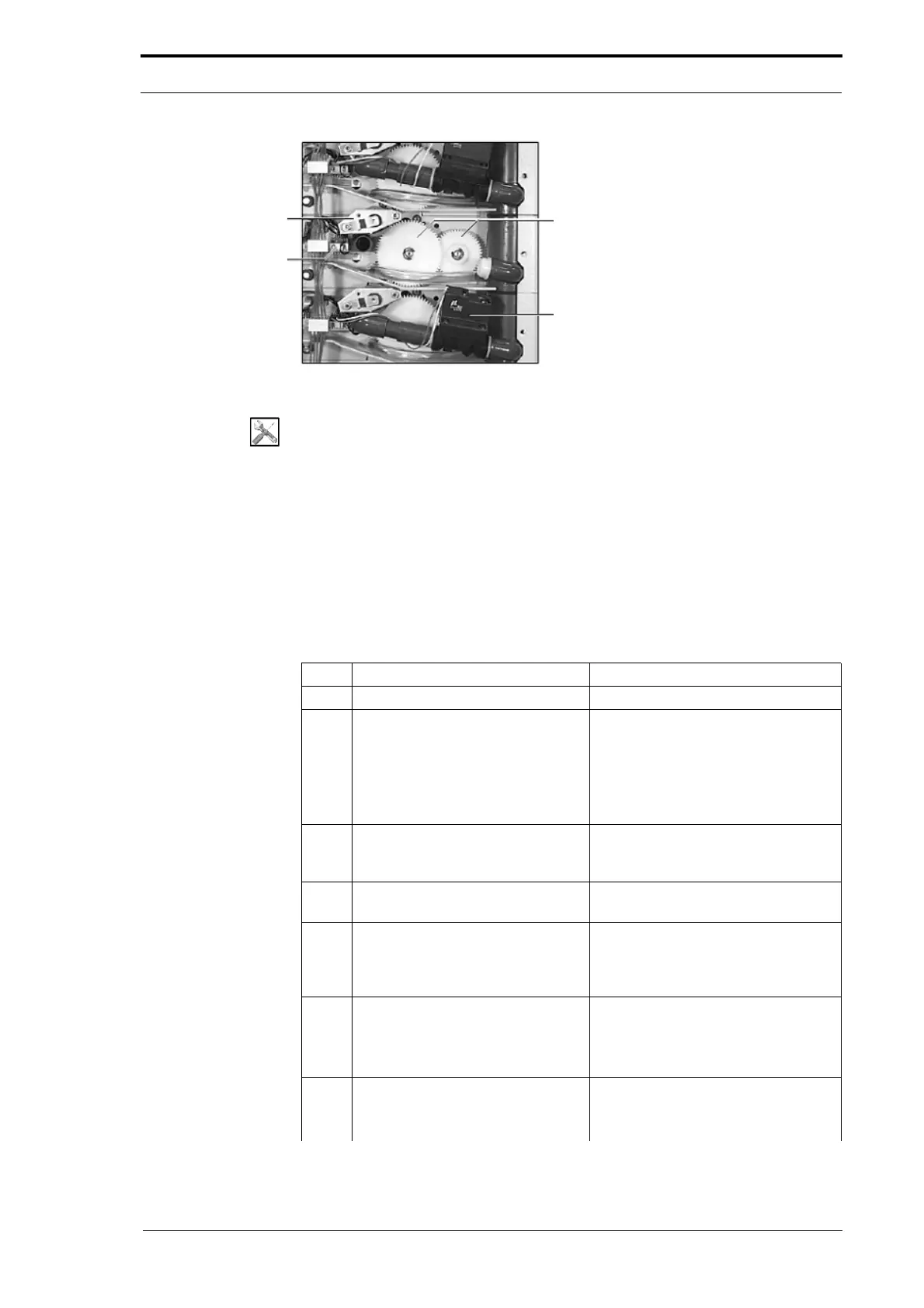

Figure 4.130 Suction Feed Bin Secondary Drive Gears
Tools:

• Allen Key: 3mm
• Spanner: 8mm
• Screwdriver: Small Flat-blade, Large Flat-blade.
Before you start:
• Remove the top RH side cover (See Section 4.2.5)
• Remove the top LH side cover (See Section 4.2.6)
• Remove the GUI panel (as necessary) (See Section 4.7.4)
• Remove the air valve (See Section 4.8.5.1)
• Remove the vacuum valve (See Section 4.8.5.2).
Step Action Information
1 Remove the clutch plate assembly. (See Section 4.8.3).
2 Remove the drive gears from the
RH side plate.
(See Figure 4.130)
• Remove the circlip.
• Pull the gear towards you.
Be careful not to drop the drive pins
from the
shaft behind the gear.
3 Turn the earth tab on the LH side
plate away from the outer conveyor
shaf
t.
4 Remove the two circlips from both
ends of the
outer conveyor shaft.
5 Remove the two flanged bushes
from
both ends of the outer
conveyor shaft.
Note: Each flanged bush is under-cut
behind the flange on one side. The
under-cut must be below the bush
when it is installed.
6 Remove the outer conveyor shaft.
• Slide the shaft into the RH side
plate to release the LH end of the
shaft.
• Pull the shaft towards you.
7 Remove the conveyor wheels from
the shaft.
• Lubricate with water if required.
• Slide the conveyor wheels off the
shaft.
