4. Service Procedures - Replace Components - Creaser Module
4
4.10.1.2 Remove the Creaser Module
Signal Cables
DynaTilt Home Switch

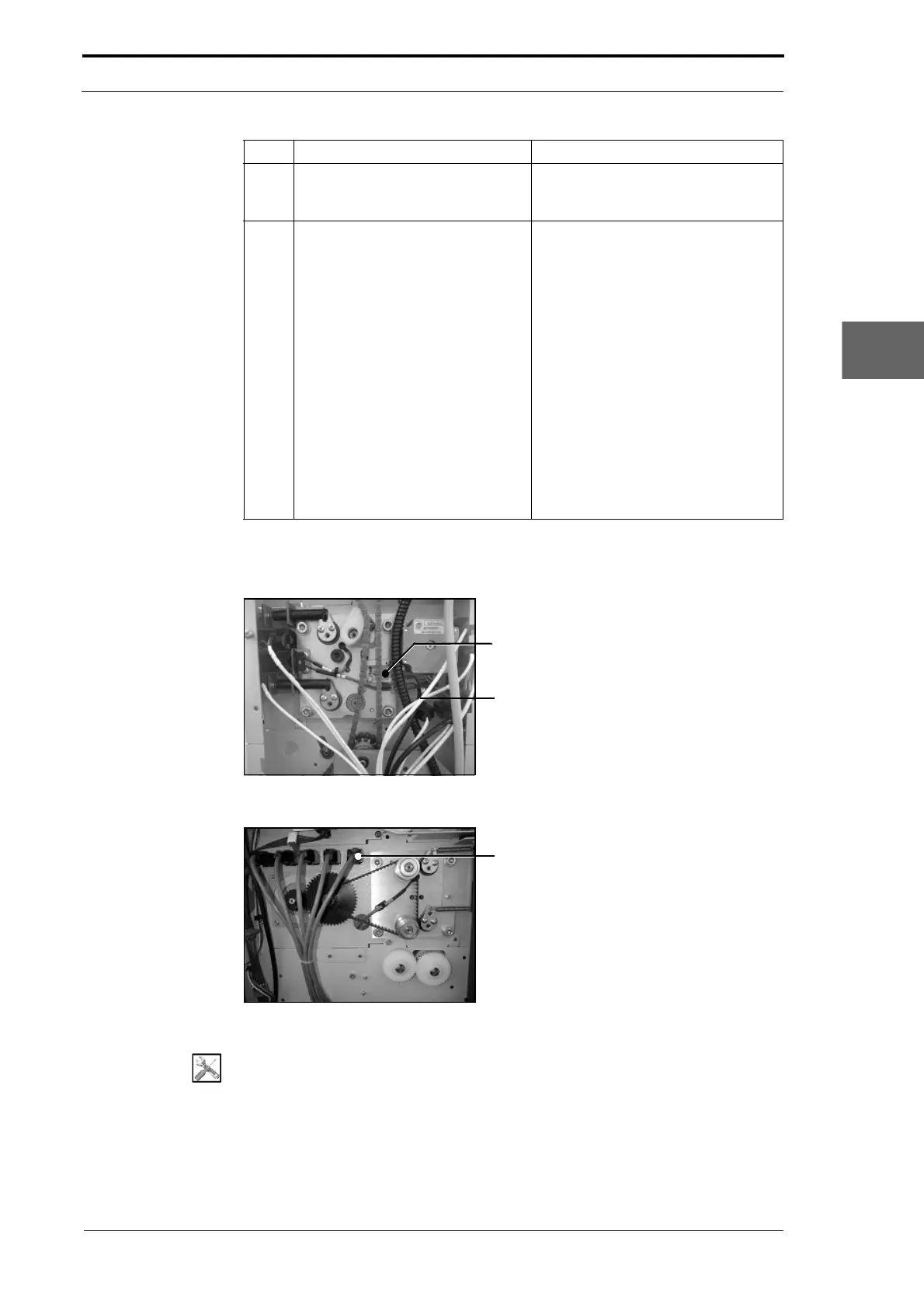

Figure 4.148 The Creaser Module Signal Cables
Power Cable Connectors
Figure 4.149 The Creaser Module Cable Connectors
Tools:

• Allen Key: 3mm
• Pliers: Side Cutters.
Before you start:
• Remove the feed bins (See Section 4.10.1.1).
5 Remove the four screws that
att
ach the bottom feed bin to the
creaser module.
6 Remove the feed bins as a group. It is necessary for two people to lift
the feed bins.
• Make sure that the area around
the MFC is clear.
• Make sure that a flat surface is
available to put the feed bins.
• Stand on the two sides of the
MFC.
• Hold below the bottom feed bin
at the front and the back.
• Lift the feed bins as a group just
enough so that they are clear of
the creaser module
• Move the feed bins off the rear of
the MFC
Step Action Information
