Morgana DocuMaster MFC - Page 170

Creaser Drive Motor Drive Gear
Creaser Drive Motor Shaft
4. Service Procedures - Replace Components - Creaser Module
162 Morgana DocuMaster MFC - Service Manual

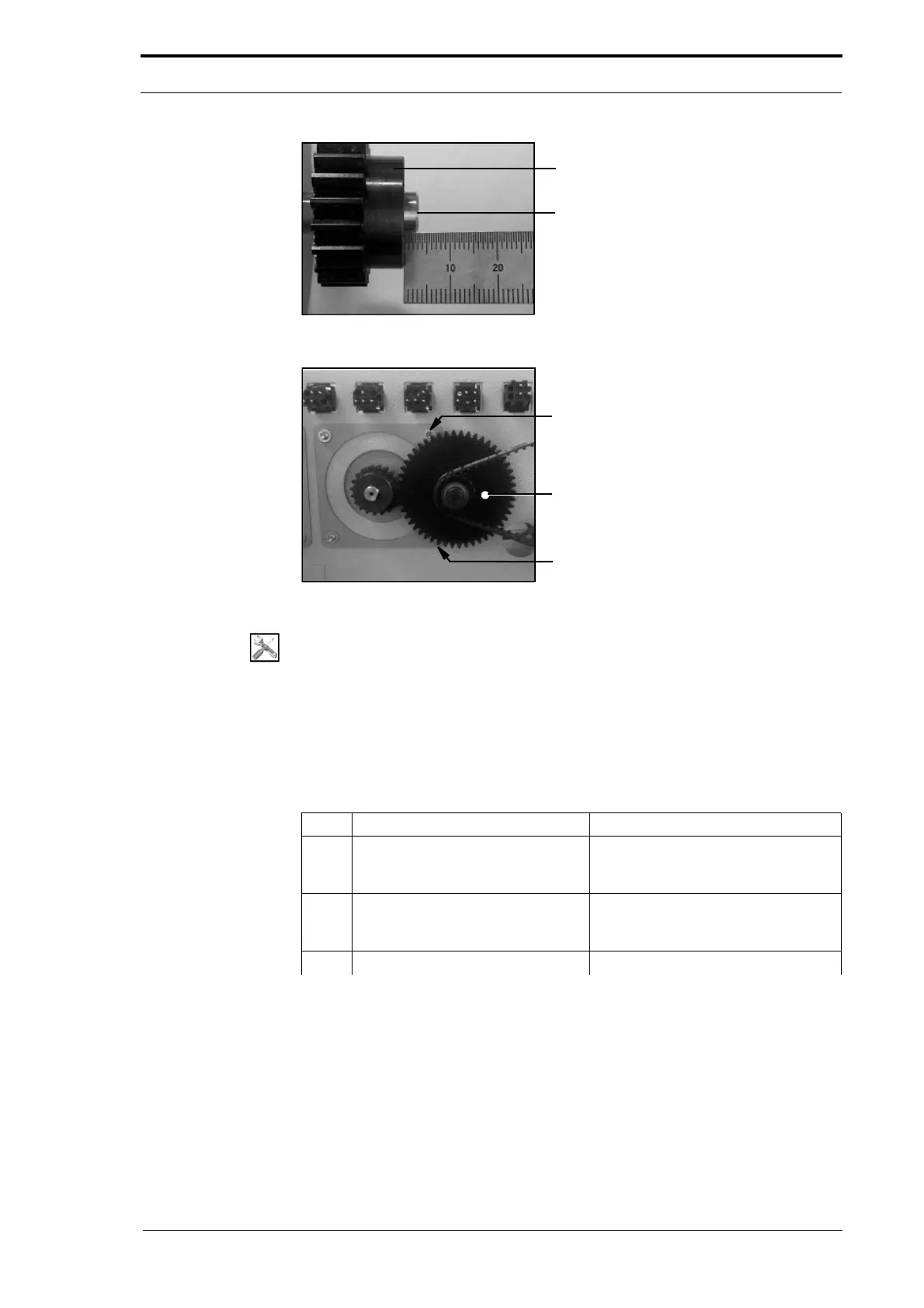

Figure 4.171 Creaser Drvie Motor Drive Gear Position
12mm Screw
12mm Screw
Idler Gear Assembly
Figure 4.172 Creaser Drive Motor Attachment
Tools:

• Allen Key: 2.5mm, 4mm
• Screwdriver: Pozidriv No. 2
• Pliers Side Cutters
• 6” Steel Rule.
Before you start:
• Remove the motor cover (See Section 4.2.9).
Step Action Information
1 Cut the cable tie that attaches the
creaser drive-motor cable to the
crease-motor cable.
2 Disconnect creaser drive-motor
cable-connector from the RH side
plate.
3 Remove the crease-motor belt. (See Section 4.10.9).
