4. Service Procedures - Machine Adjustments and Calibration
88 Morgana DocuMaster MFC - Service Manual
4.5.18.3 Adjust the Creaser Lead Edge
The crease lead-edge trim adjustment makes allowance for manufacturing tolerances
between different creaser modules. The lead-edge measurement is a known number of
motor steps that is approximately equal to 0.5 x circumference of the input rollers. The
lead-edge trim makes the crease position accurate on the sheet.

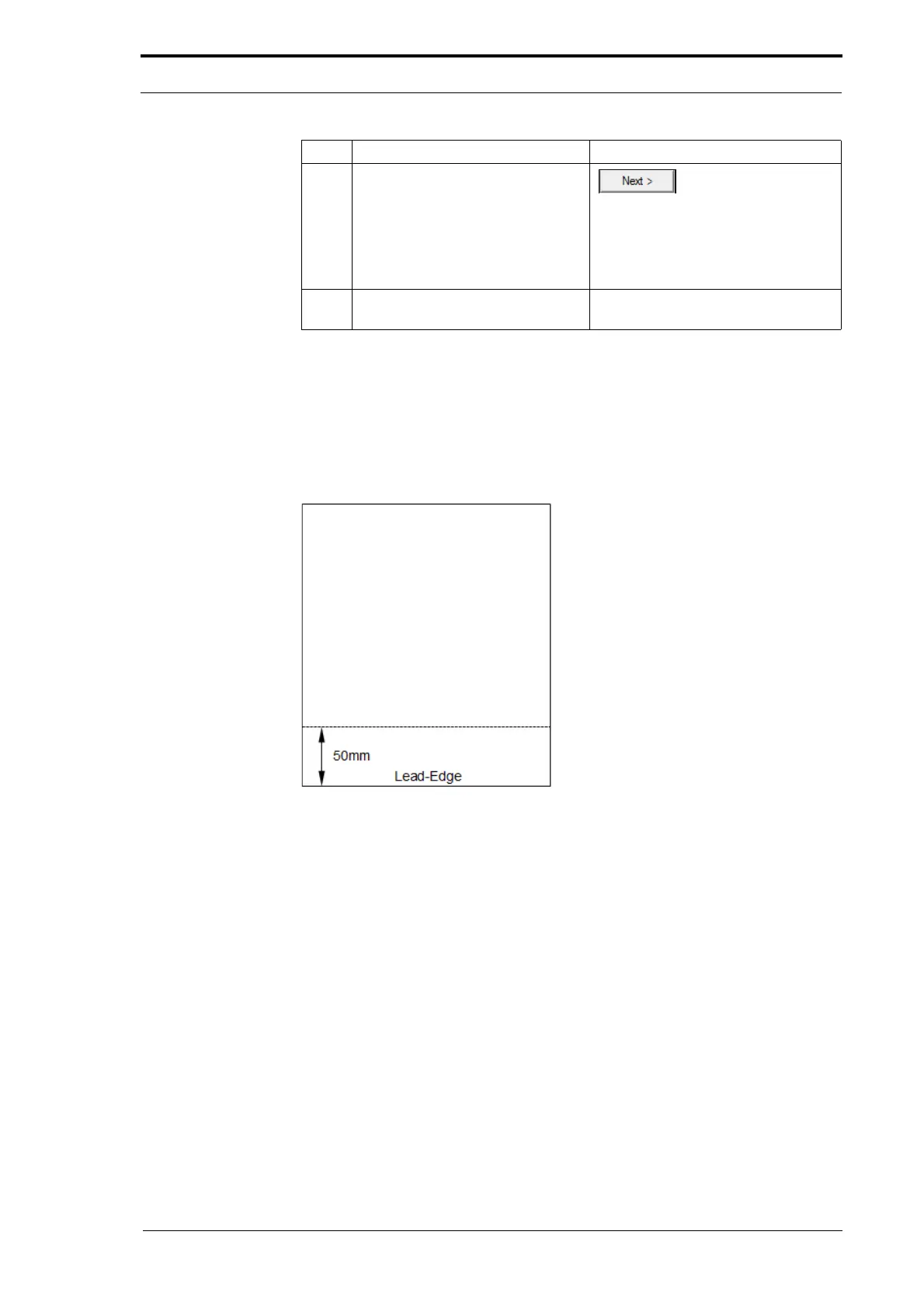

Figure 4.66 Measure the Crease Lead-Edge Distance
5 Repeat Steps 2 thru 4 until the
stretch crease measurement is
correct.
Left Click NEXT> when
done.
Note: The Machine
Configuration
wizard will show the next calibration
page and write the trim values to the
EEROM.
6 Do a check to see if the crease
lead-edge trim is correct.
(See Section 4.5.18.3).
Step Action Information
To Next Page
